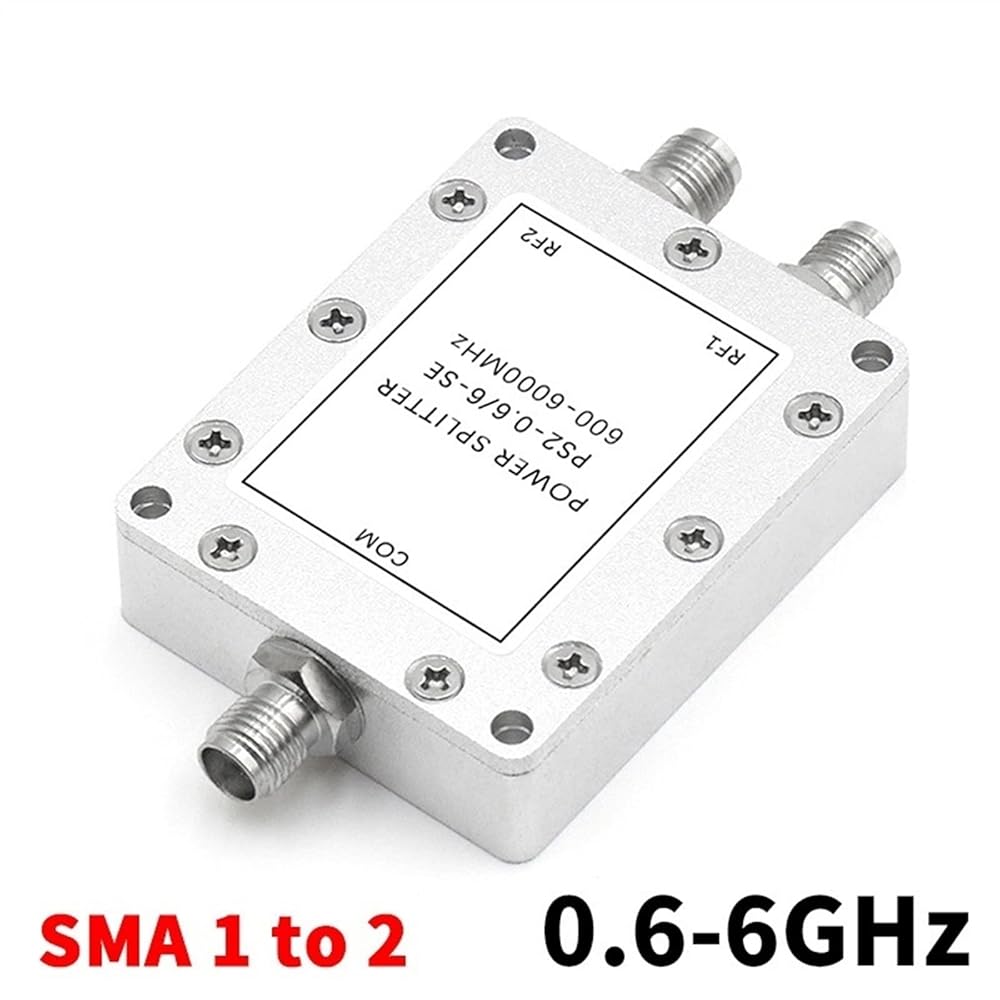

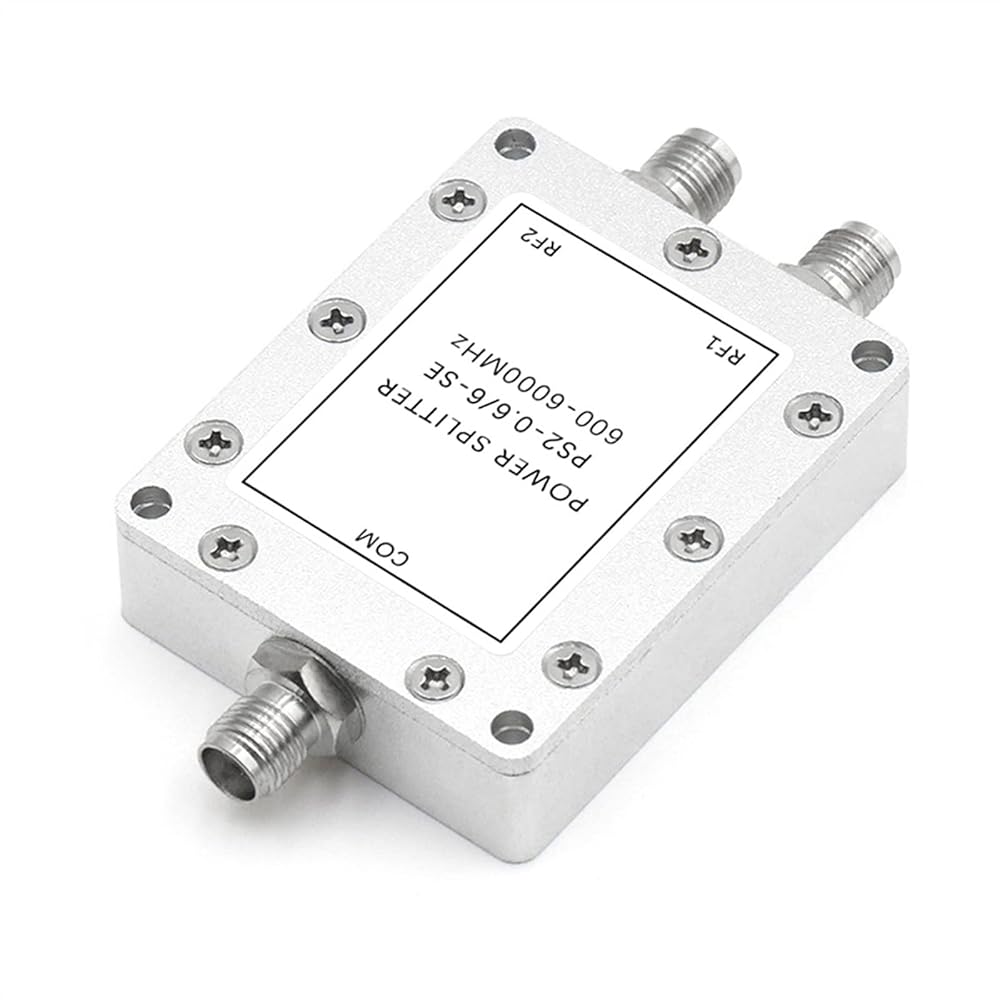

SMA One Point Two 0.6-6G Microstrip Power Splitter 2.4-5.8G/ 6 Power Splitter Combiner 1Pcs
Frequency range: 600~6000MHz

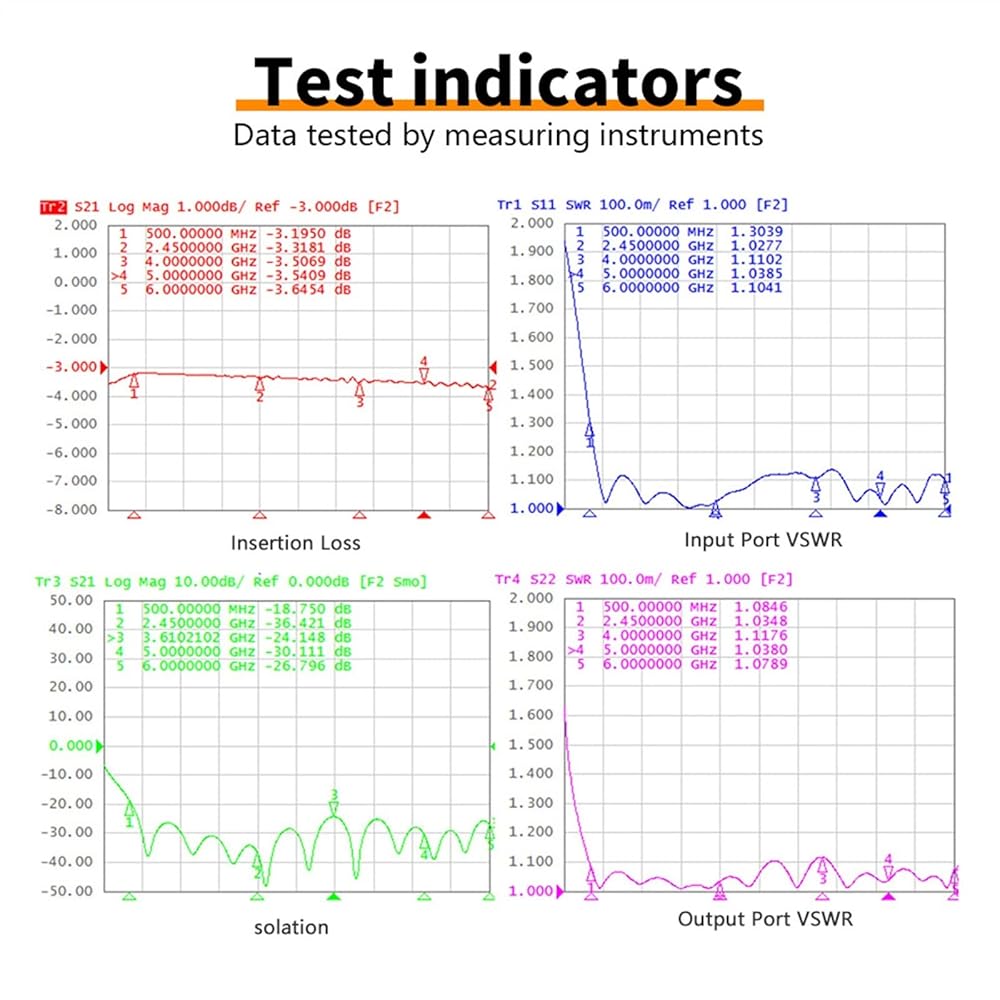

Insertion loss: 9.0dB (excluding theoretical loss 3.0dB)
Input standing wave: 1.2 : 1
Output standing wave: Typ.1.11 / Max.1.19
Isolation: Typ.27dB / Min.19dB
Amplitude balance: 0.2dB
Phase balance: ±2°
Impedance: 50 Ohms
Port Connector: SMA-Female
Withstand power: 30W for splitter; 2W for combiner
Working temperature: -35 ~ +75

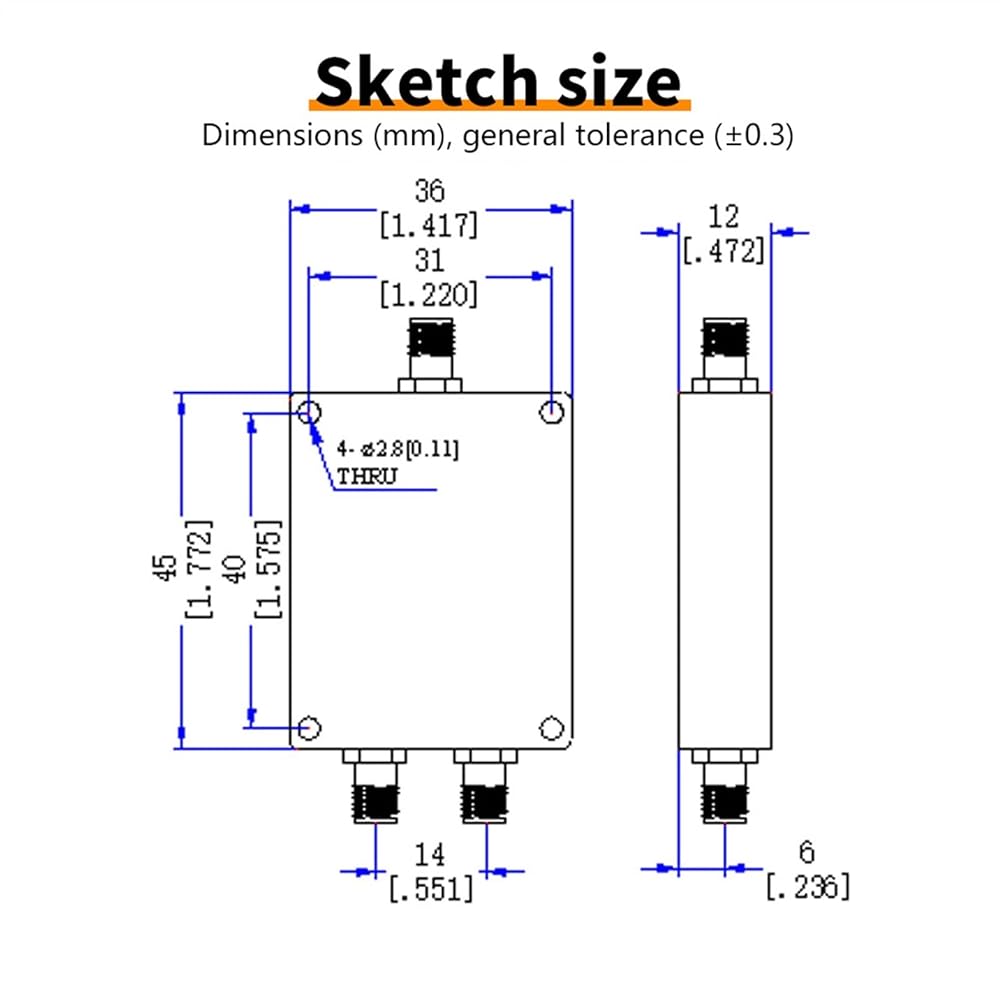

Dimensions: 45*46*12(mm)
Weight: 44g
