Vacuum Pads
1. Premium Material for Long-Term Reliability
Constructed with copper and full nickel plating, offering exceptional corrosion resistance and oxidation resistance ideal for stable performance in electronics manufacturing environments with strict cleanliness requirements.
build ensures extended service life, reducing replacement costs and downtime in high-volume automated production lines.
2. Versatile Suction Cup Options for Targeted Applications
5 specialized suction cup types to match diverse workpiece needs in electronics assembly:
U (Flat Type): Secure grip for smooth, flat surfaces (e.g., standard circuit boards).
C (Ribbed Flat Type): Enhanced stability with ribbed texture, preventing slippage during high-speed handling.
D (Deep Type): Ideal for curved or recessed components, ensuring full contact and strong adsorption.
B (2-Layer Bellows Type): Flexible buffer for delicate parts, absorbing vibration to avoid damage.
J (3/4-Layer Bellows Type): Maximum flexibility for irregularly shaped or fragile electronics components.
3. Modular Design & Flexible Configuration
Embedded structural design enables easy flexible matching and installation of each accessory, supporting quick customization of setups to adapt to different circuit board sizes or assembly process requirements.
Wide range of specifications:
Suction cup diameters (6/10/15/20/25/30/40/50mm) cover small to large electronics components.
Vacuum port sizes (4/6/8mm) and dual mounting threads (A10: M101; A8: M81) ensure seamless integration with most automated equipment, robots, and vacuum systems.
4. Tailored for Electronics Industry Precision
Optimized for the electronics industry and automated equipment, specifically designed for circuit board assembly, fixation, and handling of sensitive electronic components ensuring precise positioning and damage-free operation.
Standard internal vacuum port thread (M5*0.8) aligns with global electronics manufacturing equipment standards, facilitating cross-equipment compatibility.
5. Customizable Solutions for Unique Needs
Non-standard customization supported to tailor suction cup types, diameters, thread specifications, or structural features to specific production line requirements, providing personalized solutions for complex electronics assembly scenarios.
6. Efficient & Stable Automation Performance
Reliable adsorption force and consistent performance ensure smooth error-free operation in high-precision, high-speed automation workflows critical for maintaining productivity and product quality in electronics manufacturing.
==========
High-concerned chemical : None
Motivity Type : Other
Type : Actuator

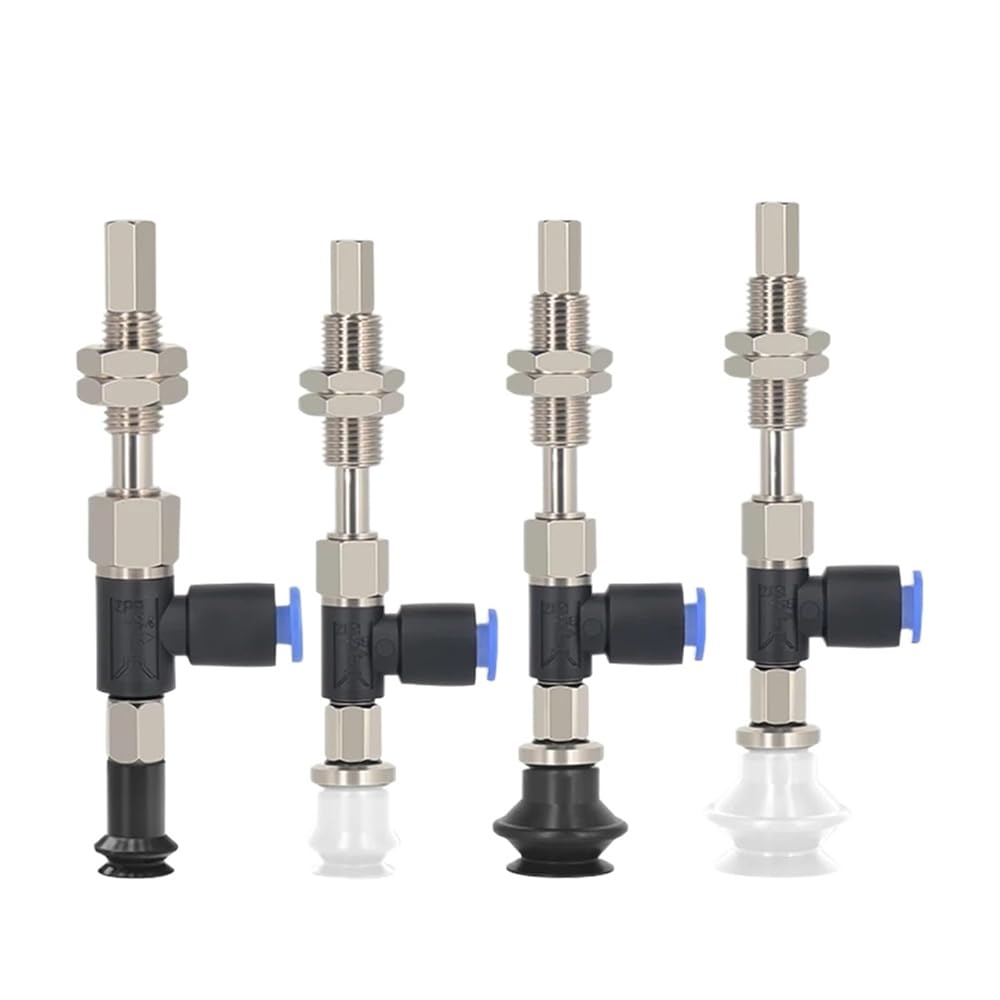

Product Name : ZPR Vacuum Suction Cup Assembly
Material : Copper with Nickel Plating
Suction Cup Type : U (Flat Type), C (Ribbed Flat Type), D (Deep Type), B (2-Layer Bellows Type), J (3/4-Layer Bellows Type)
Vacuum Port Size : 4/6/8mm
Suction Cup Diameter : 6/10/15/20/25/30/40/50mm
Vacuum Port Thread : Internal Thread M5*0.8
Mounting Connection Thread : A10 (M10*1), A8 (M8*1)
Application Scope : Suitable for the electronics industry, automated equipment, and various scenarios such as circuit board assembly and fixation.
Features : Adopts an embedded structural design; each accessory can be flexibly matched and installed, with corrosion resistance and oxidation resistance.
Customization Availability : Non-standard customization is supported
