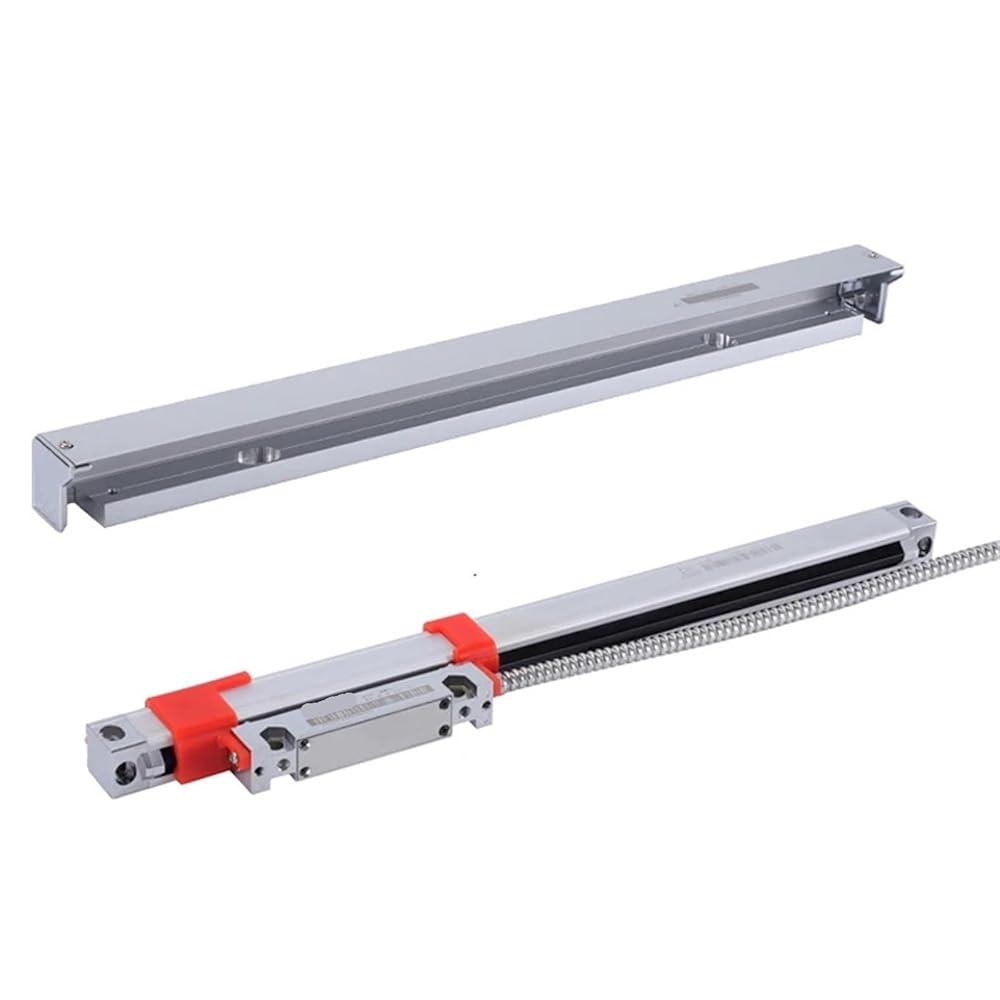

Linear Sensors KA200, 300/360mm 16mm*16mm Slim Optical Encoder Sensor, Rating Ruler for Mini CNC Lathe, 1pc
Description
All types of rulers are to be installed on different machines, which depends on the available installation height & length The type Sino KA200 is the smallest ruler in the market To the small space on machine KA-200 with 16mm*16mm cross section may be the best choice.
KA-200 is a super-miniature thin ruler,it facilitates the use in somenarrow placesand the installation of special purpose measuring instrument.For the KA Series of linear encoder,every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being deliveried from the factory.
KA-200 Parameter
Available Measrus Length: 30mm-360mm
Cross Section: 16mm X 16mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Reference Point: one unit per 50mm
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL
Cable standard: 2 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 egree centigrade
Connetor: 9 Pins
Battery Included : No
High-concerned chemical : None
Electronic : No
Capacity : 300mm, 310mm, 320mm, 330mm, 340mm, 350mm, 360mm
Model Number : KA200 / KA-200
Type : Optical Scale
Procut name : KA200 Slim scale
Travel length : 30mm-360mm
Input voltage : 5VDC
Output signal : TTL
Resolution : 0.005mm/5um
Cross section size : 16mmx16mm
Cable length : 2 meters
Scale overall length : Travel+95mm
Installation holes distance : Travel+103mm
