High Accuracy Ultrasonic Transducer: Flow Meter: ±1.0%, Water Meter: ±2.0%, Flow Meter Repeatability: ±0%, Heat Meter Repeatability: ±0.5%
Parameters: Max Flow Speed: 209.97 ft/s (64 m/s) with a velocity resolution of 0.003 ft/s (0.001 m/s), Fluid Temperature: 32°F to 320°F, Max Fluid Turbidity: 20,000 ppm
Bidirectional Measurement: Ultrasonic Water Flow Meter measures both forward and reverse flow, providing comprehensive data on positive, negative, and net cumulative flow/heat
Robust Protection: Water Flow Meter features two IP68 transducers and an IP65 host, offering excellent dust-proof, waterproof, anti-corrosion, and moisture-proof protection, along with a fault self-diagnosis function for durability and reliability
LCD Display: Digital Water Liquid Flow Tester is equipped with a backlit LCD that clearly shows real-time flow rate, cumulative flow, and velocity, allowing for quick and easy monitoring
Versatile Measurement Media: Digital Water Liquid Flow Tester is suitable for a wide range of conductive liquids, including water, wastewater, seawater, and oils, compatible with pipes of various materials, such as carbon steel, stainless steel, cast iron, cement, copper, PVC, and aluminum

وصف

Specifications
Power Supply: DC 836V or AC 85264V
Flow Meter Accuracy: ±1.0%
Water Meter Accuracy: ±2.0%
Flow Meter Repeatability: ±0%
Heat Meter Repeatability: ±0.5%
Suitable Pipe Diameter:

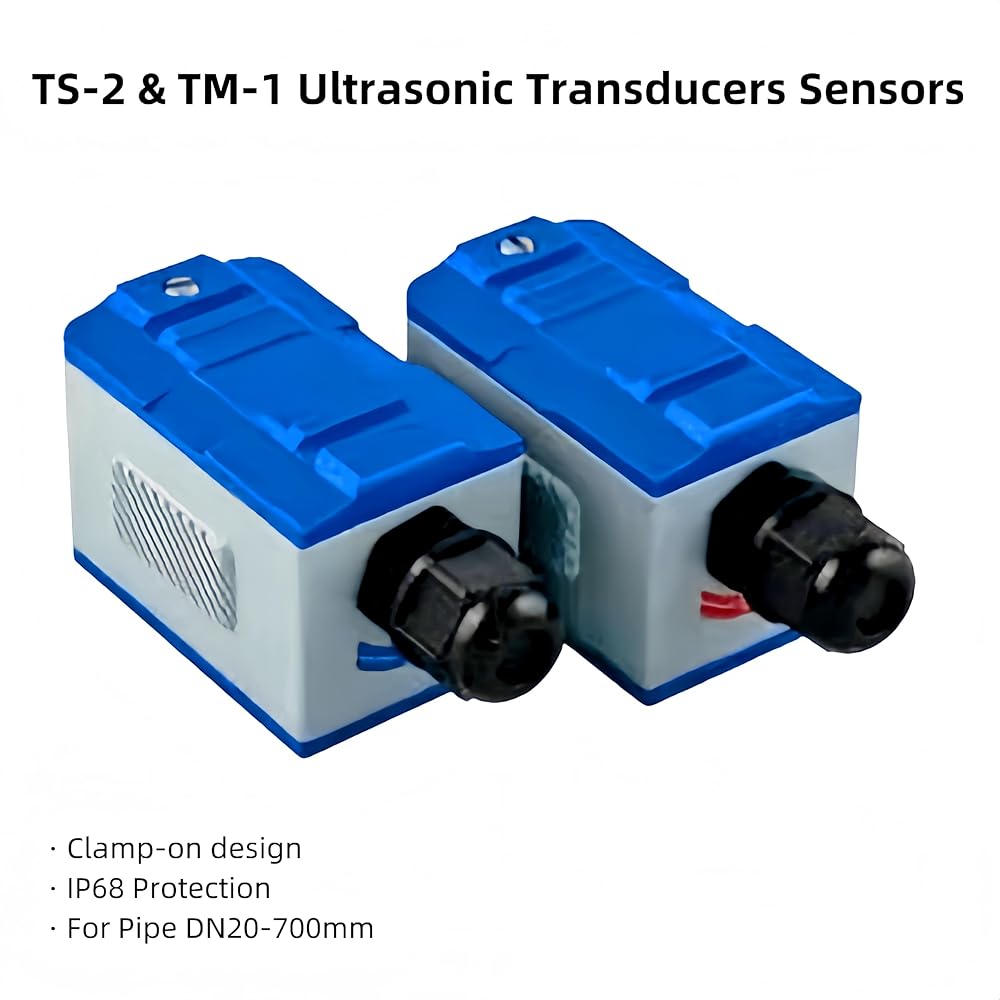

TS-2 Ultrasonic Transducers: DN15-DN100
TM-1 Ultrasonic Transducers: DN50-DN700
Max Flow Speed: 209.97 ft/s (64 m/s)
Fluid Temperature: 32°F to 320°F
Max Fluid Turbidity: 20,000 ppm
Signal Output: 1 way 4-20 mA output, 1 way OCT pulse output, 1 way relay output
Signal Input: 3 Way 4-20 mA input

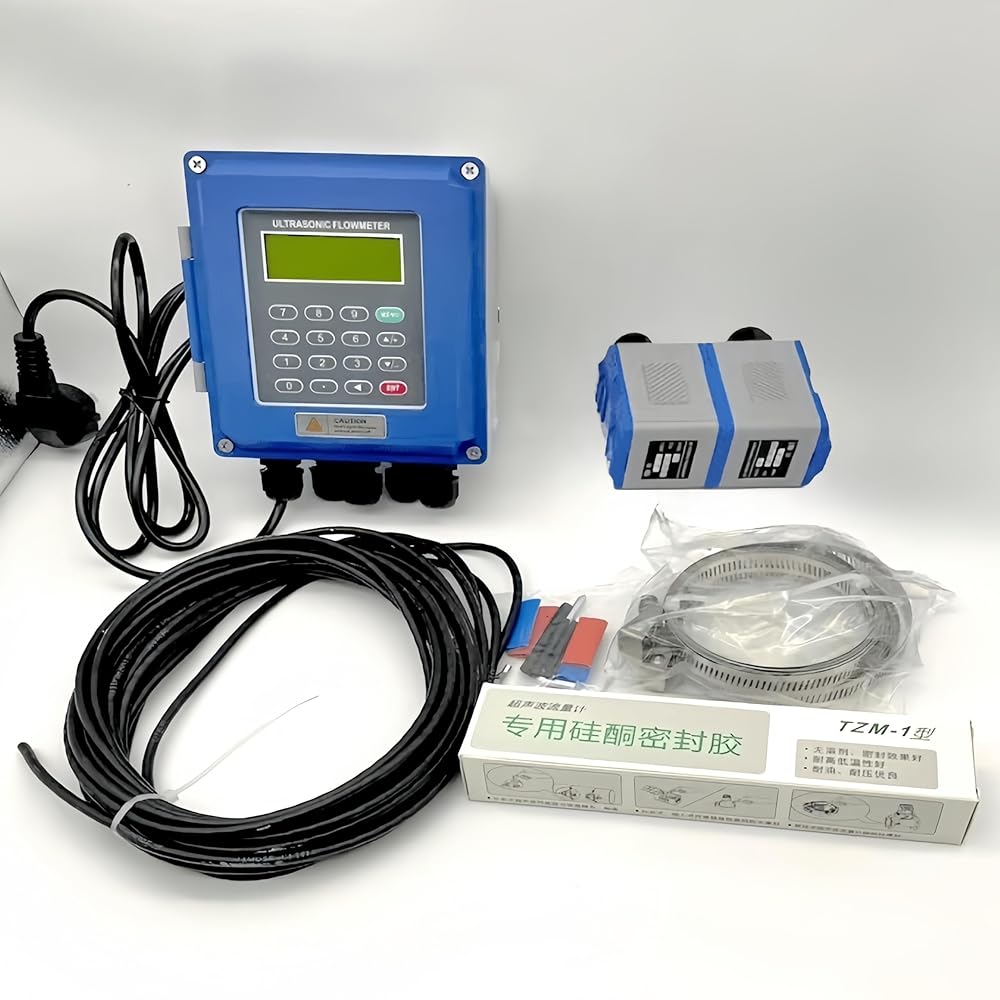

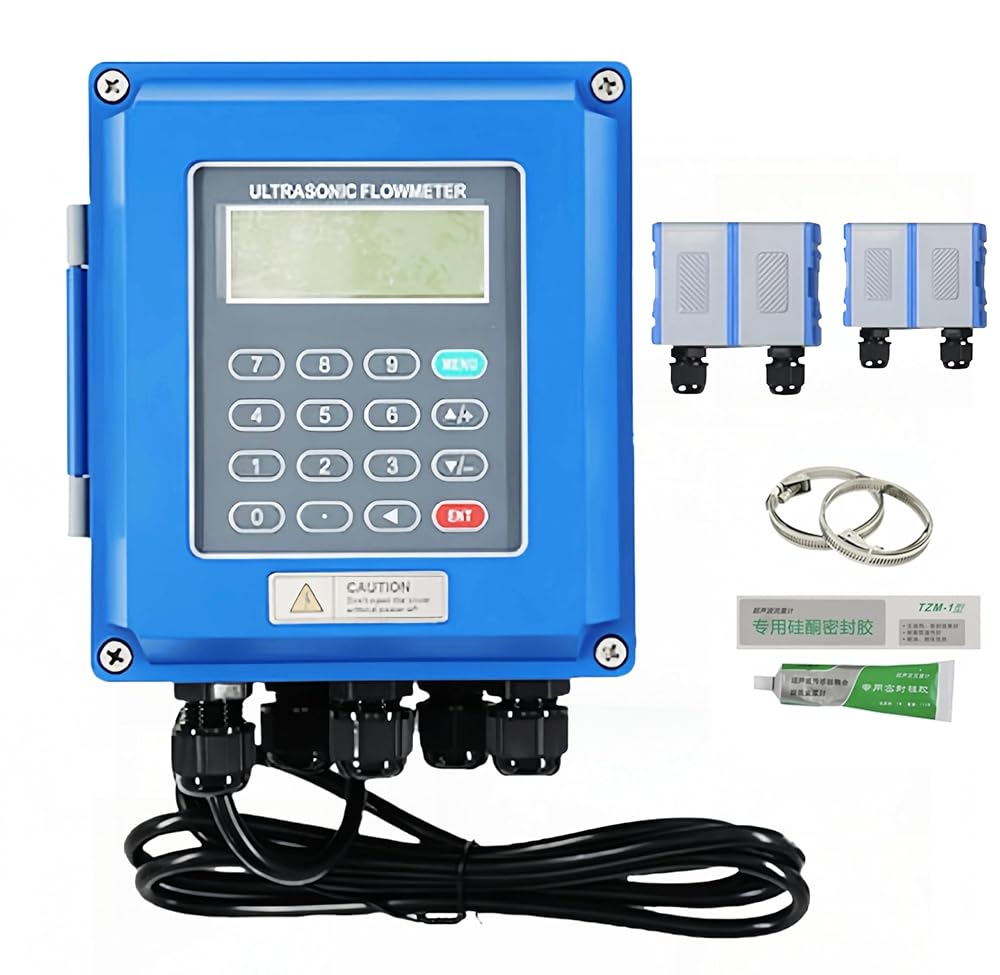

Package Content
1 x Host
1 Set x TS-2 Ultrasonic Transducer
1 Set x TM-1 Ultrasonic Transducer
1 x Cable
