【High precision measurement】:With micrometer level resolution, small measurement errors, and the ability to accurately capture small displacement changes, it meets the stringent requirements of precision machining and high-precision positioning
【Wide range adaptation】:The range covers from a few millimeters to several meters, and can be flexibly selected according to different application scenarios, balancing the needs of short stroke precision measurement and long stroke displacement detection
【Multi scenario universality】:Widely used in fields such as CNC machine tools, automated production lines, 3C electronic manufacturing, automotive parts testing, surveying instruments, etc., it is the core component for achieving intelligent manufacturing and precise control
【Diversified signal output】:Supports multiple output modes and seamlessly integrates with mainstream industrial control equipment such as PLC, CNC systems, servo drives, etc
【Industrial grade durability】:Adopting a metal shell and sealed structure, it has the ability to resist vibration, impact, and electromagnetic interference

وصف

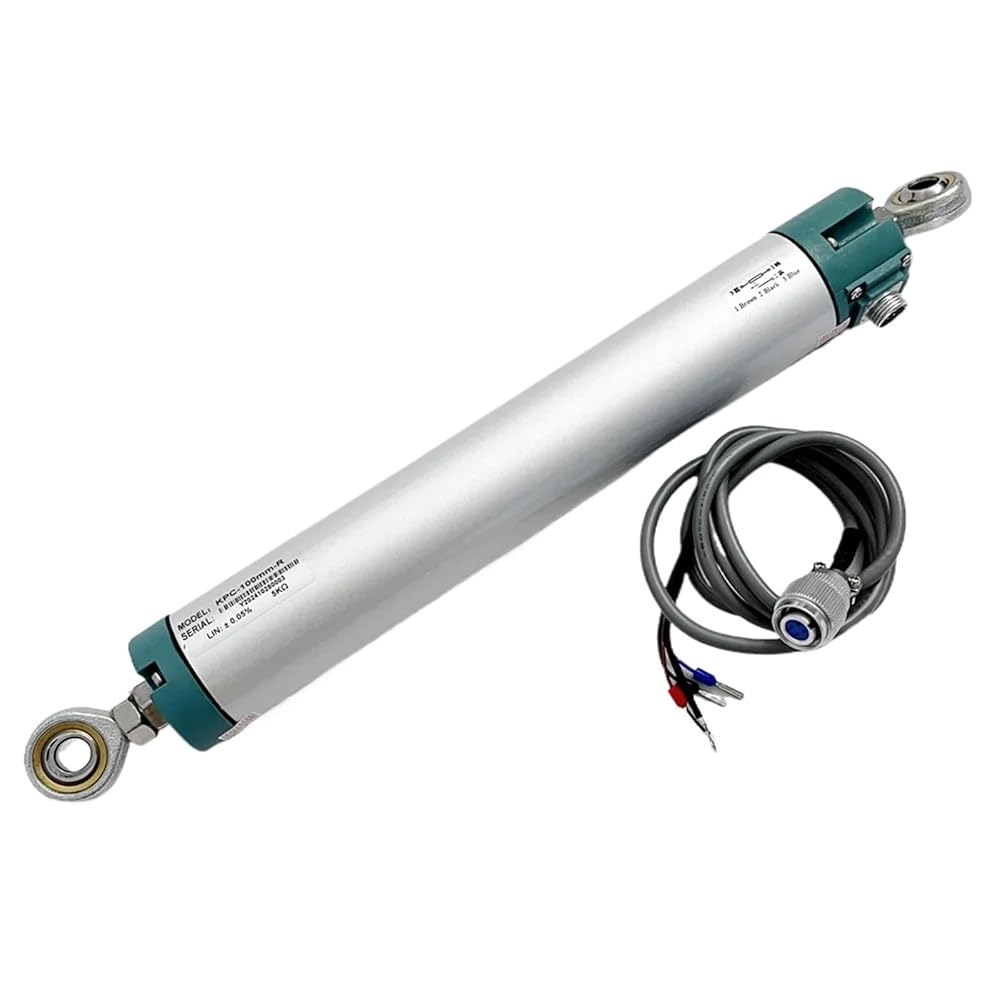

KPC35 50mm/175mm Linear Position Travel Sensor, With Eye Rod Circular Displacement Sensor, 1pc
Introduction:
KPC diameter is 35mm
Rod diameter:8mm
Range: 50mm~750mm for option
Rod Eye End Linear Actuated Position Travel Sensor
High resolution and no interference from external signals
Output: Default signal : R
Voltage signal :DC24V output 0-5V/0-10V
Current signal: DC24V output 4-20mA /
RS485/ RS232
Waterproof IP68 KPC
Battery Included : No
High-concerned chemical : None
Model Number : KPC
Diameter : 35mm
Working range : 0-750mm
Plug : Aviation Plug
Output : R
Resistance ±20% : 5 k
