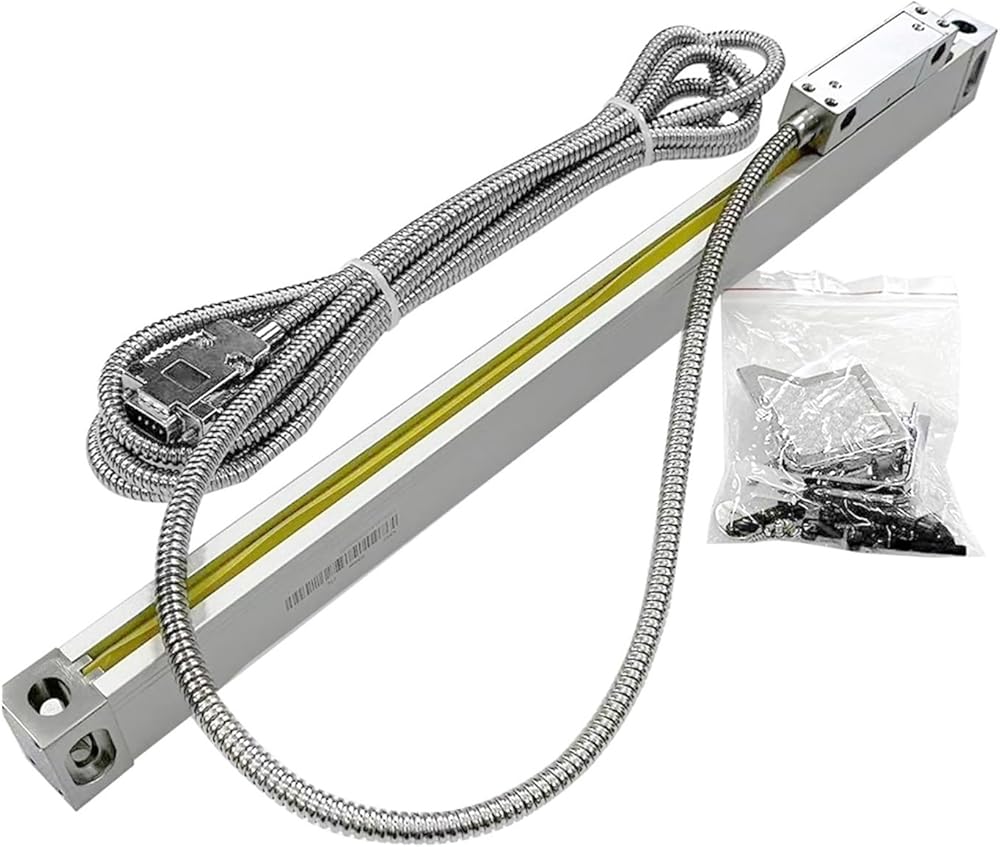

0.005mm Linear Scales Grating Ruler 5um Sensor Encoder TTL 100mm-400mm for Lathe Milling Tools (200mmtravel 1) in Saudi Arabia

350mm Travel 1

SAR 1,042
Brand
NUHSLF
Category
Sensors
Color350mm travel
Size1
– 1 +

Special Features

  • Wide application compatibility: The KA35 series is suitable for milling machines, lathes, grinders and CNC equipment to meet a variety of industrial needs
  • High resolution: Provides a high resolution of 5μm (0.005mm) to ensure accurate measurement and is suitable for demanding processing environments
  • design: With IP54 protection level, it can operate stably in the operating temperature range of 0-50°C and adapt to various industrial environments
  • Fast measurement capability: Supports a maximum measurement speed of 60m/min, improves production efficiency, and is suitable for fast processing needs
  • Easy installation: 3-meter cable length and reasonable mounting hole distance design facilitate flexible installation and improve ease of use

Description

Model Number : KA35-100 150 200 250 300 350 400
Operating temperature : 0-50°c
Output mode : TTL
Protection grade : IP54
Interface Typ : DB9
Resolution : 5um/0.005mm
Application : Mill, Lathe, Grinder, CNC etc.
Max of Measuring speed : 60m/min
Input voltage :
Cross Section Dimension : 20mm* 18mm
Scale overall length : Travel+112mm
Installation holes distance : Travel+102mm
Cable length : 3 meters
Procut name : DRO linear scale
