مميزات خاصة
- High precision: The resolution reaches 0.005mm (5μm) to ensure accurate measurement
- Multiple strokes: The optional stroke length ranges from 450mm to 1000mm to meet diverse needs
- solid design: The protection level is IP54, suitable for a variety of industrial environments, and enhances durability
- Efficient performance: The maximum measurement speed is 60m/min, which improves processing efficiency
- Comprehensive accessories: Equipped with ruler cover, screws and mounting accessories for easy installation and use
وصف

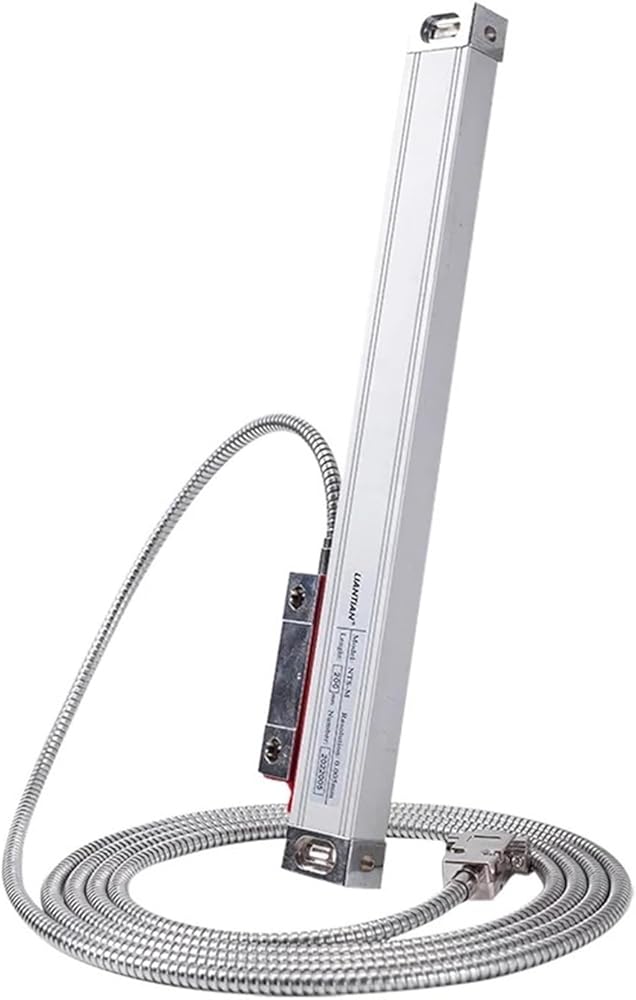

Procut name : 0.005mm linear scale
Scale travel : 450 500 550 600 650 700 750 800 850 900 950 1000mm
Cross section size : 21.5mmx33.5mm
Scale overall length : Travel+142mm
Output signal : TTL / (EIA-422 option)
Installation holes distance : Travel+124mm
Resolution : 0.005mm/5um
Input : ±5% , 100mA
Interface Typ : 20um,DB9
Cable length : 3 meters
Max of Measuring speed : 60m/min
Protection grade : IP54
Operating temperature : 0-50°c
If include accessories : Yes(with scale cover, screws and accessories)
Application : Mill, Lathe, Grinder, CNC Etc.
