Product Description

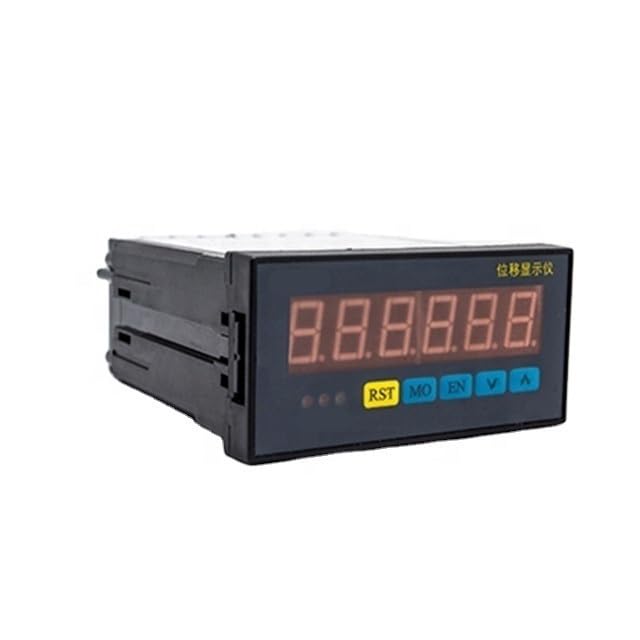

This digital display counter is a high-performance industrial instrument designed for encoder position detection, length measurement, and counting tasks.
It delivers 500KHz high-frequency counting, supporting forward/reverse counting, peak value display, and customizable resolution for precise industrial monitoring.
The device retains data and during power outages, ensuring stable operation in harsh workshop environments. It accepts 90° phase difference signals from encoders, with 4x frequency multiplication for enhanced accuracy.

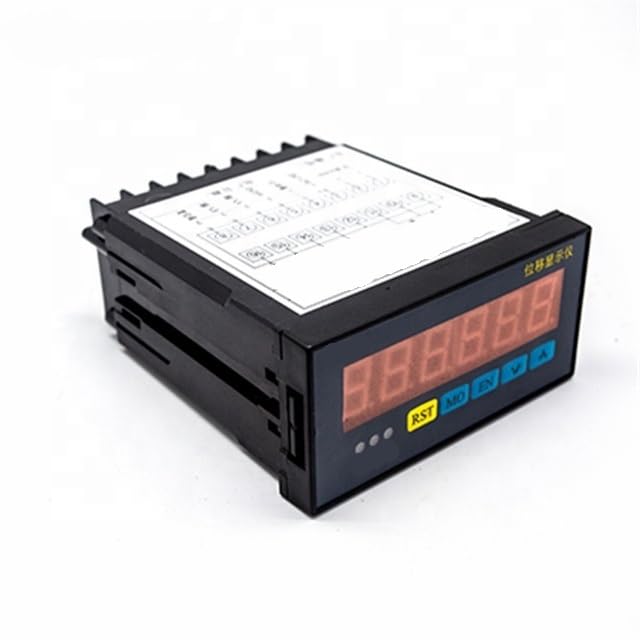

The compact 96×48×112mm size and clip-on installation make it easy to deploy in limited spaces.
It is widely used in industrial automation, machinery, and length measurement applications, providing reliable and efficient digital readout solutions.

Specifications
Input Impedance: 5KΩ
Pulse Level: Low: -50V~0.5V, High: 3.5V~50V

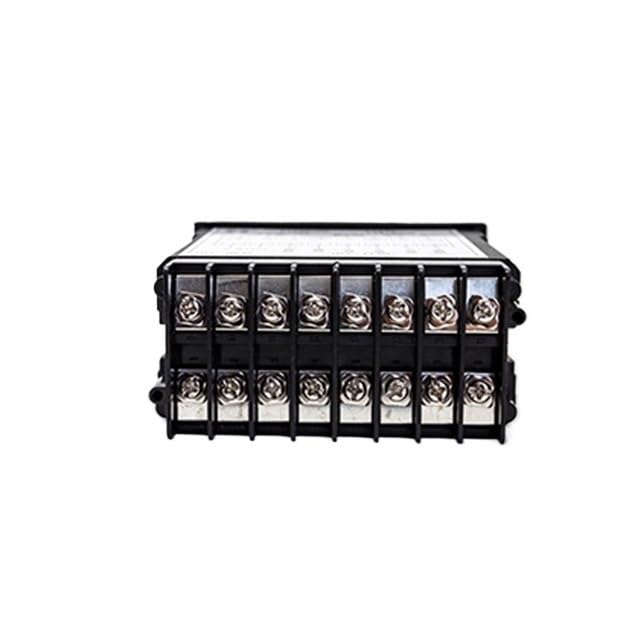

Contact Capacity: AC250V 3A, DC30V 3A
Communication: RS485 (115200bps, auto-send data every 5s)
Optional Output: 4-20mA analog
Size: 96×48×112mm (panel), 92×43.5mm (cutout)
Operating Temperature: -10°C ~ 50°C
Core Functions: Forward/reverse counting, length measurement, peak value display, power-off memory, 4x frequency multiplication
