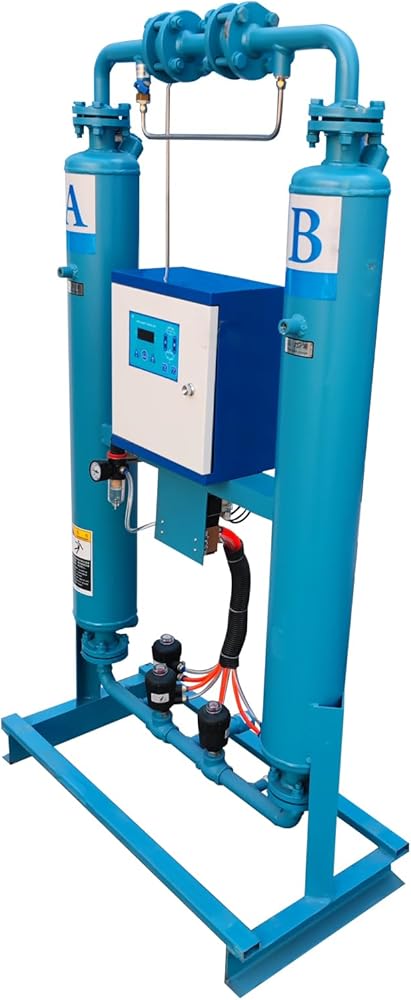

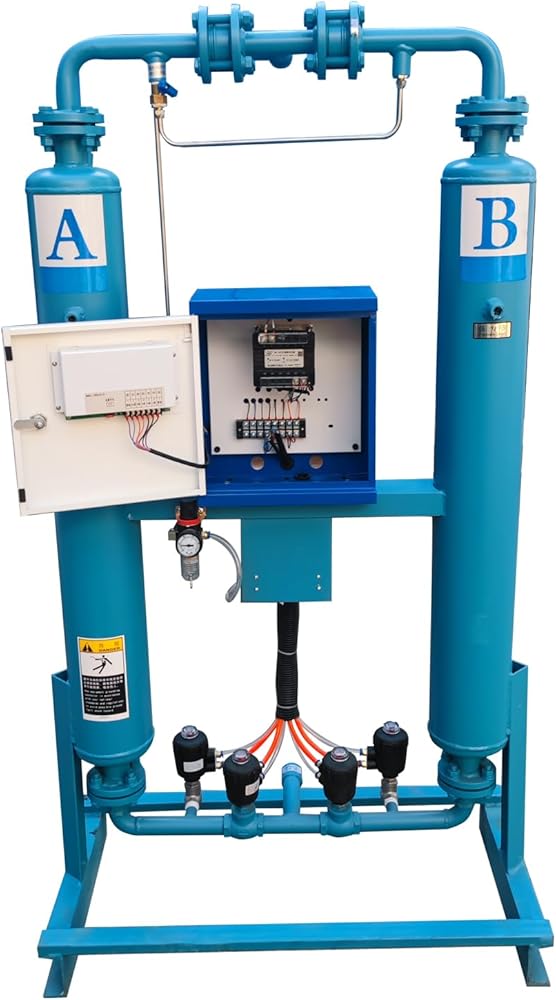

53CFM Adsorption Compressed Air Dryer Non-heat Adsorption Drying Machine for 7.5-11KW Air Compressors 110V

SAR 8,480
Brand
HayWHNKN
Weight
127 kg
– 1 +

Special Features

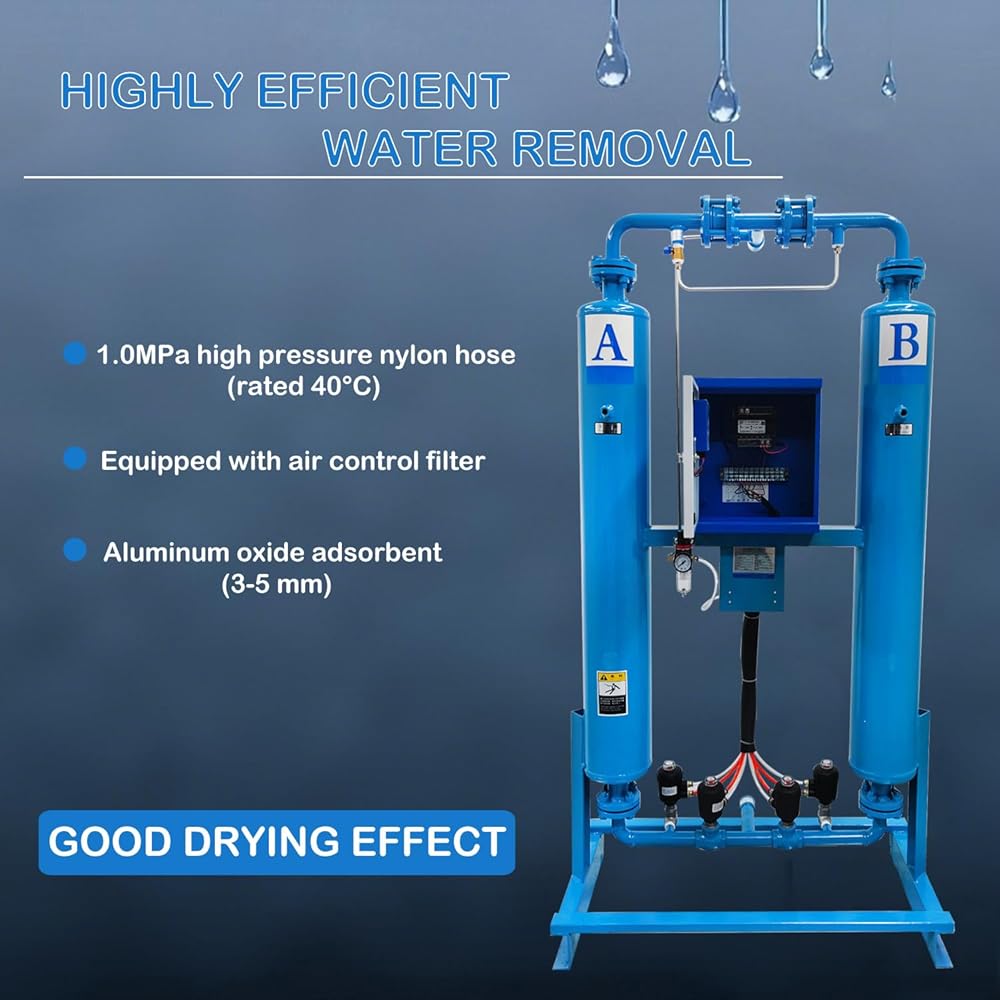

  • HIGH EFFICIENCY:The pressure of nylon hose is 1.0MPa (40℃),equipped with air control filter to ensure the drying effect of the gas and high efficiency of water removal.

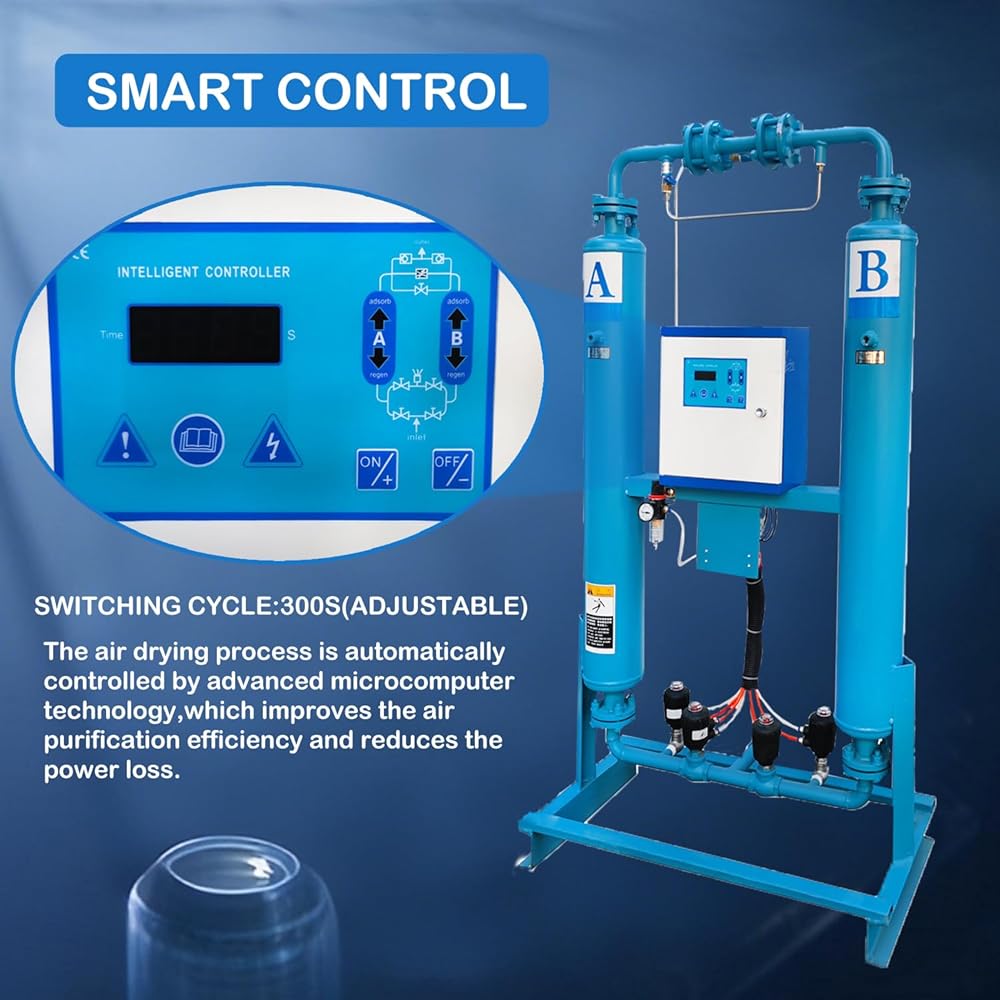

  • SMART CONTROL:The air drying process is automatically controlled by advanced microcomputer technology,which improves the air purification efficiency and reduces the power loss.

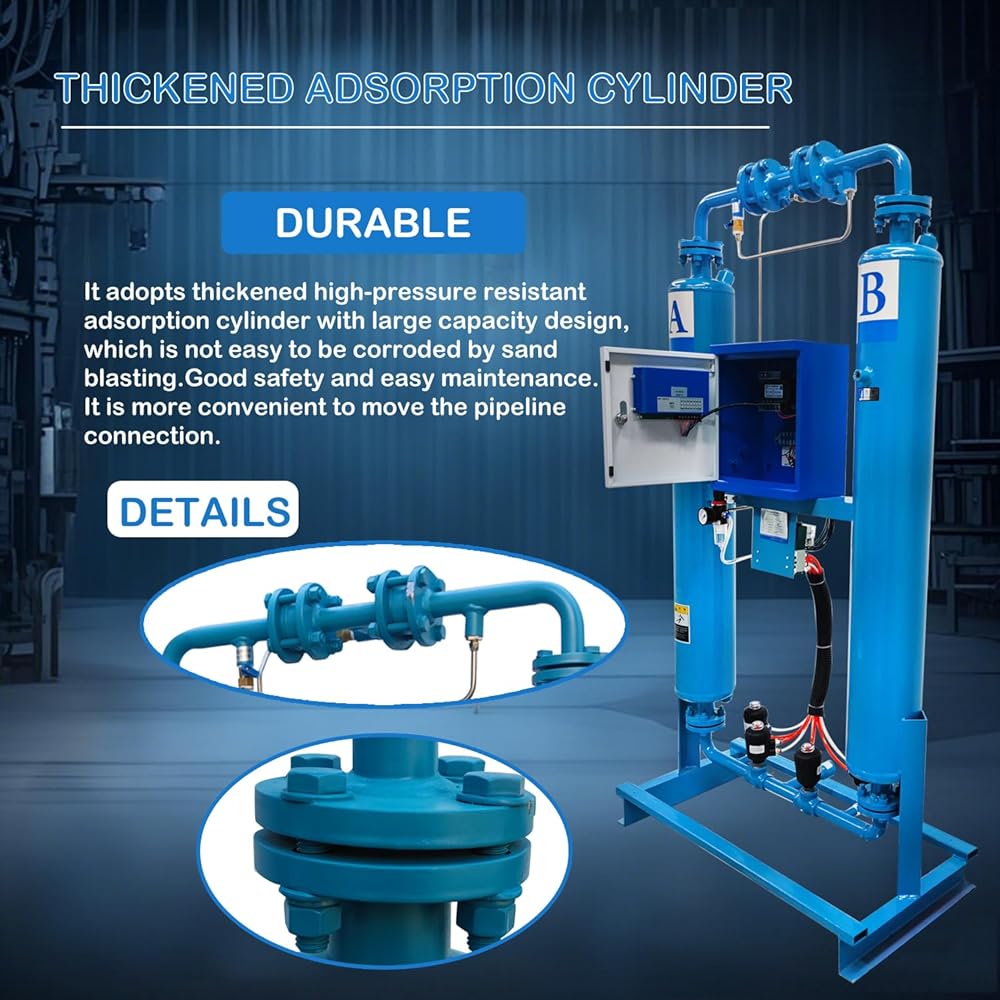

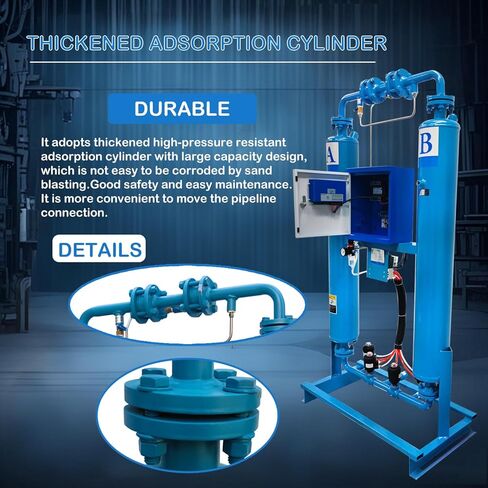

  • DURABLE:It adopts thickened high-pressure resistant adsorption cylinder with large capacity design,which is not easy to be corroded by sand blasting.Good safety and easy maintenance.It is more convenient to move the pipeline connection.

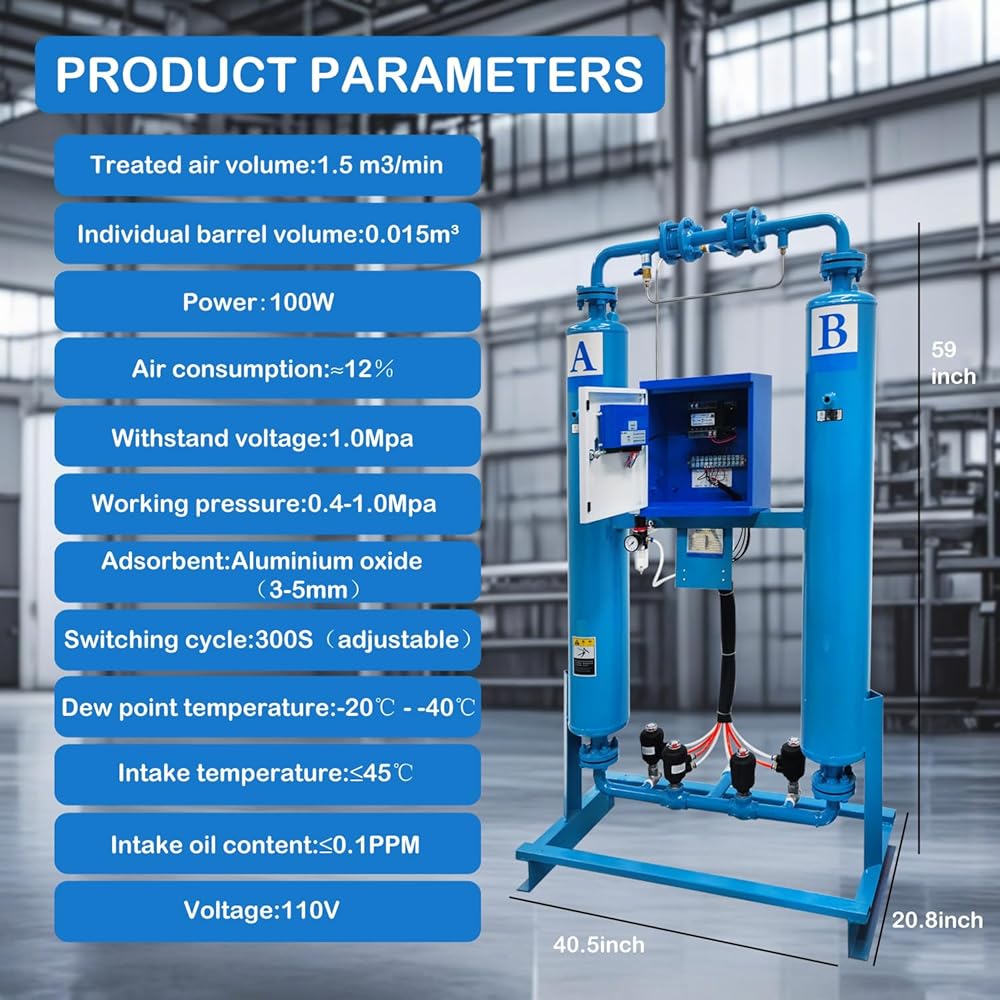

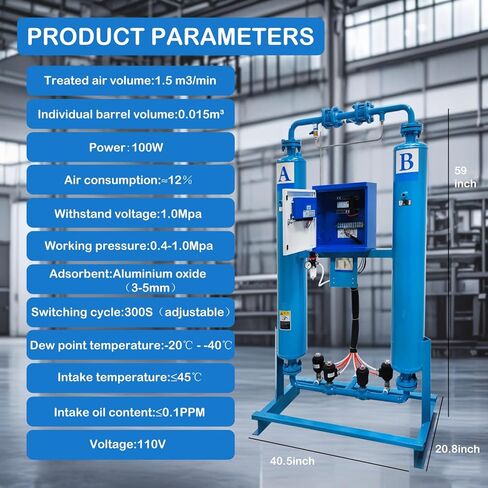

  • PRODUCT PARAMETERS:Treated air volume:1.5m3/min,Inlet and outlet size:1 inch threaded pipe,Bobbin size:140*1000mm,Individual barrel volume:0.015m³,Power:100W,Power:100W,Air consumption:≈12％,Withstand voltage:1.0Mpa,Working pressure:0.4-1.0Mpa,System pressure drop:≤0.03Mpa,Adsorbent:Aluminium oxide(3-5mm),Dew point temperature:-20℃ to -40℃,Switching cycle:300S(adjustable),Intake temperature:≤45℃,Intake oil content:≤0.1PPM,Suppressor:2PCS of XY-05,Diffuser:4PCS of DN25
  • WIDE APPLICATION:Thermal-free adsorption compressed air dryer is a kind of equipment for drying compressed air according to the principle of pressure change adsorption.This dryers is widely used in electronics,food,metallurgy,electric power,chemical industry,petroleum,medicine,light textile,tobacco instrument,automatic control and other industries.

Description

Installation:
1.Users shall construct and install it according to the foundation drawing.
2.Pay attention to the verticality of the cylinder when installing the equipment.
3.The equipment shall be fastened and tightened after a period of use.
4.Connecting inlet and exhaust pipes, filter and efficient oil remover should be as close as possible.
5 In order to ensure safety, non-safe voltage electrical parts shall be effectively grounded.
6 The muffler shall be connected to the outside room.
