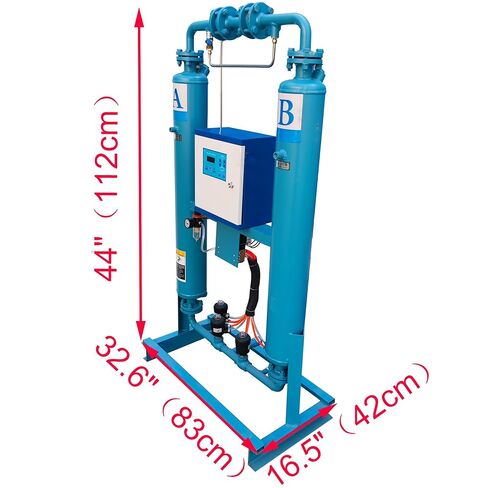

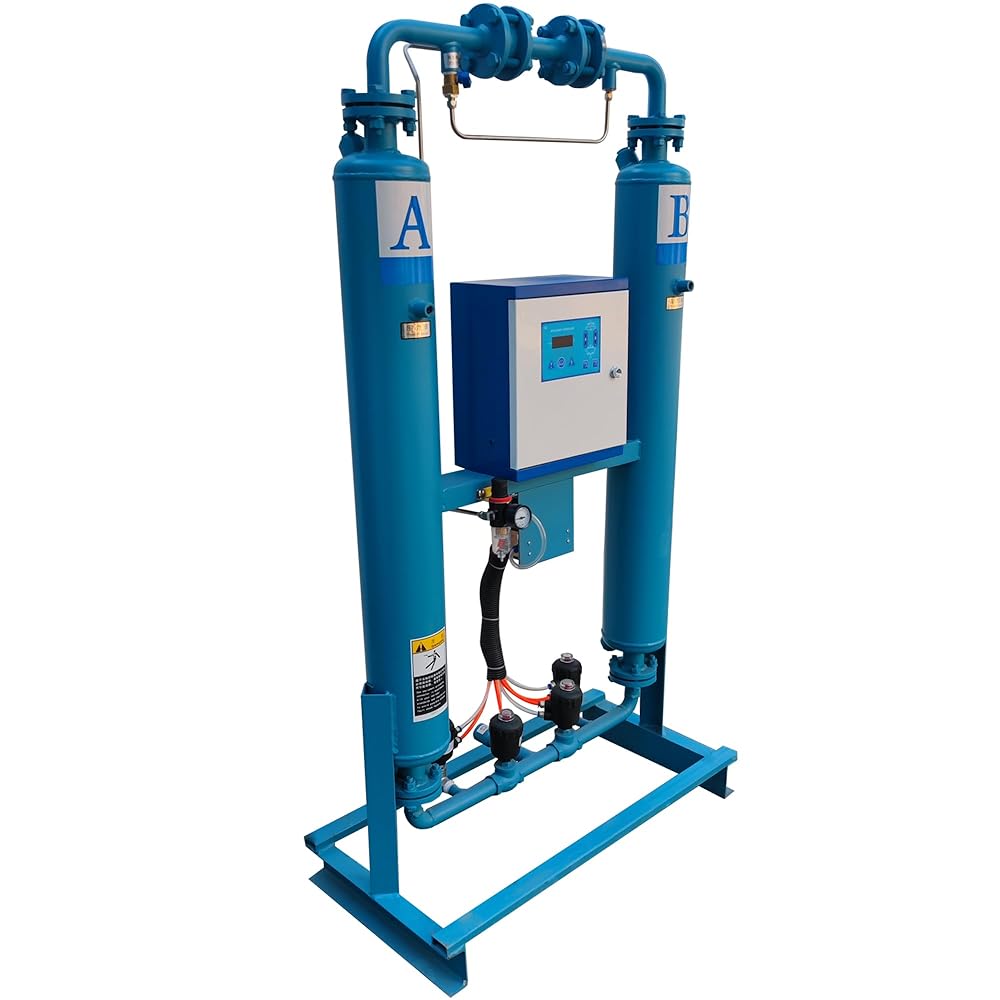

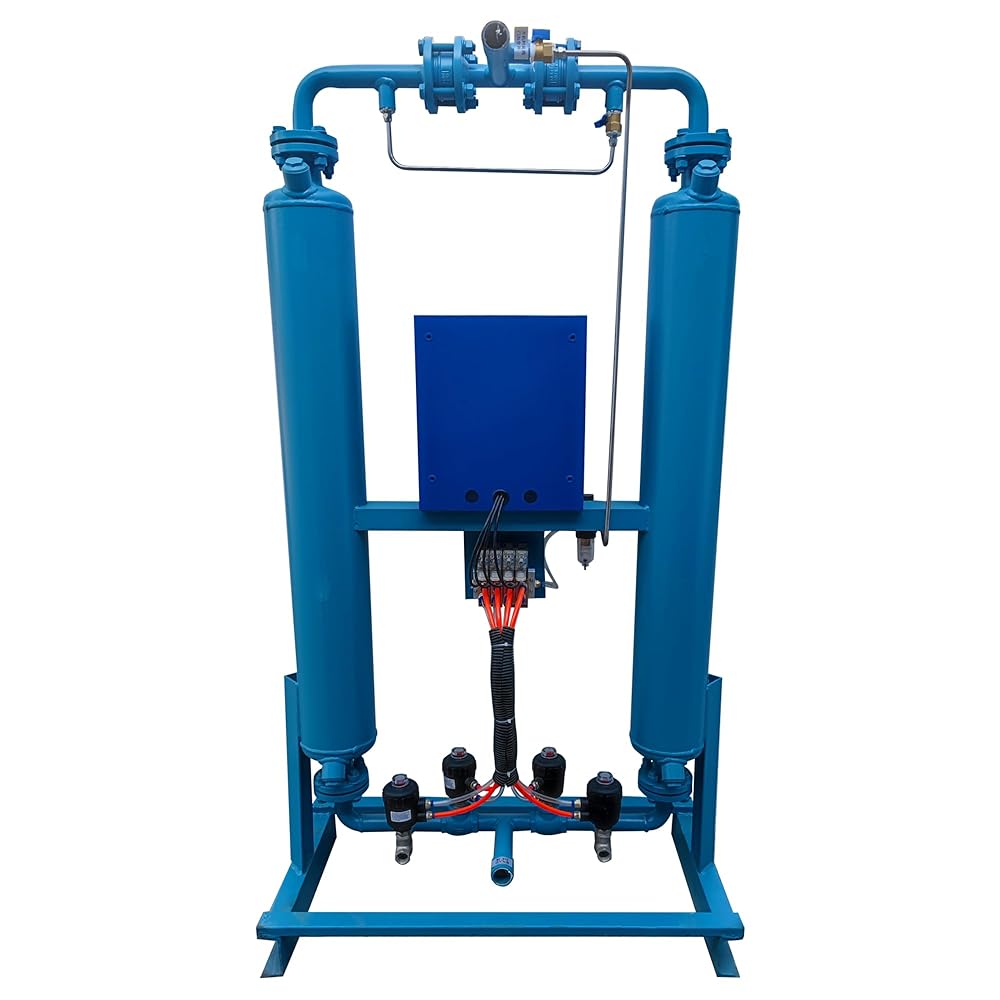

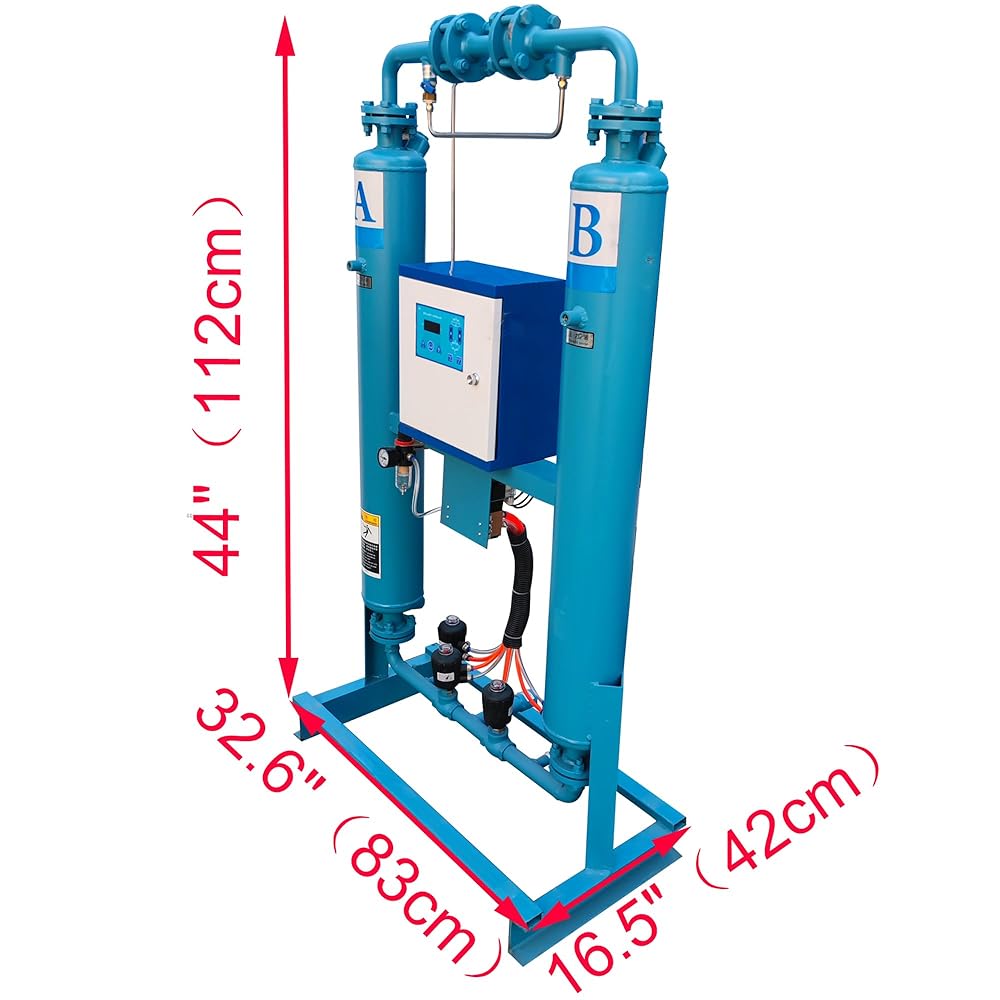

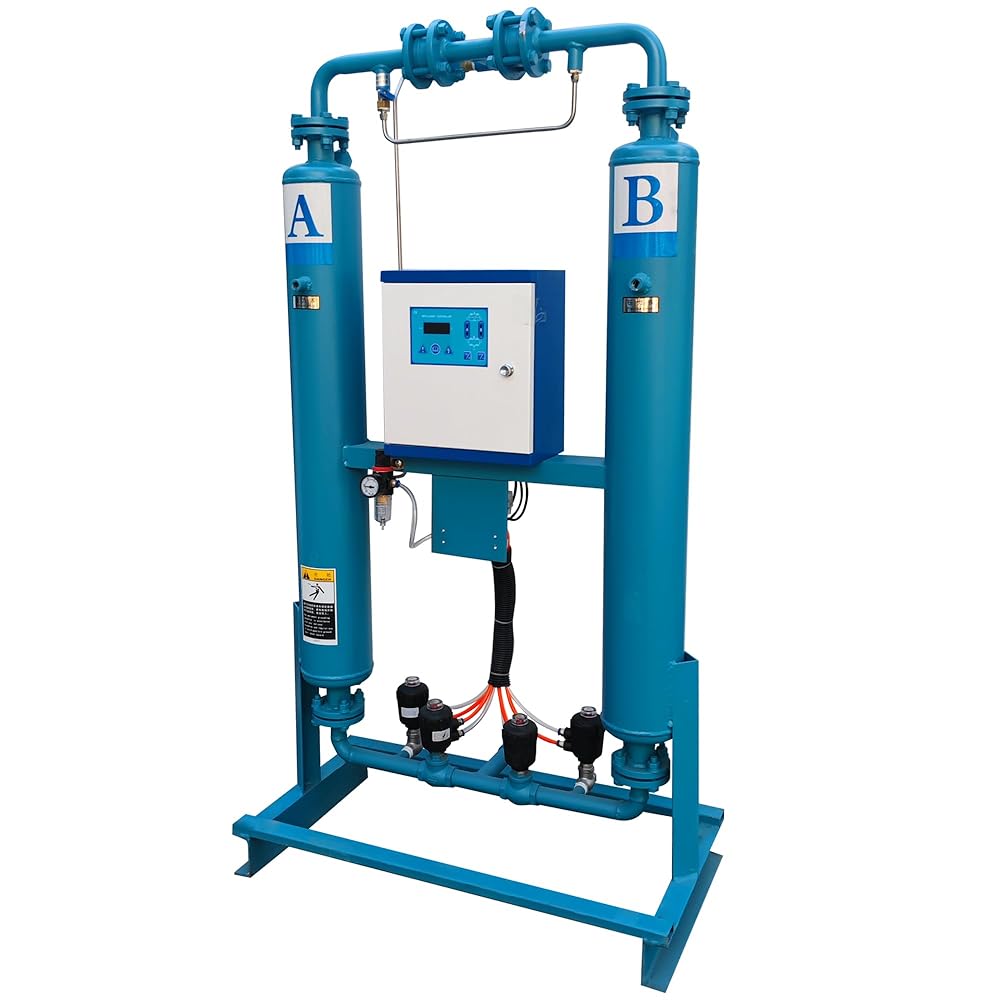

[Application]: The Thermal-free adsorption compressed air dryer is used for drying compressed air according to the principle of pressure change adsorption. 3-5mm Aluminium oxide is used as the adsorbent for removing moisture, oil and particle impurities from compressed air.
[High Quality]: Adopts thickened high-pressure resistant adsorption cylinder with large capacity design, efficient water removal, which is not easy to be corroded by sand blasting.
[Excellent Performance]: The treated air volume is 1.5 m3/min. Adopt high quality nylon hose, which pressure is 1.0MPa (40℃). Mobile pipe connection is more convenient. Good safety and easy maintenance.

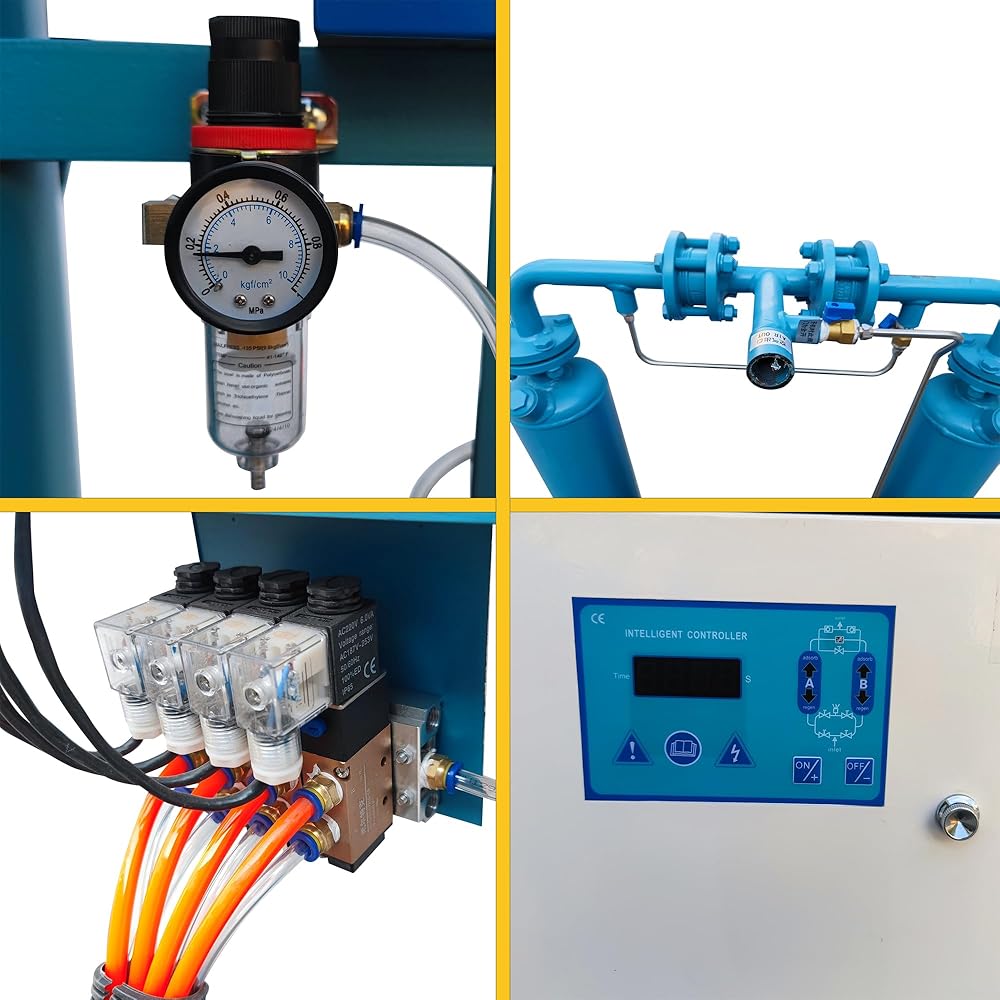

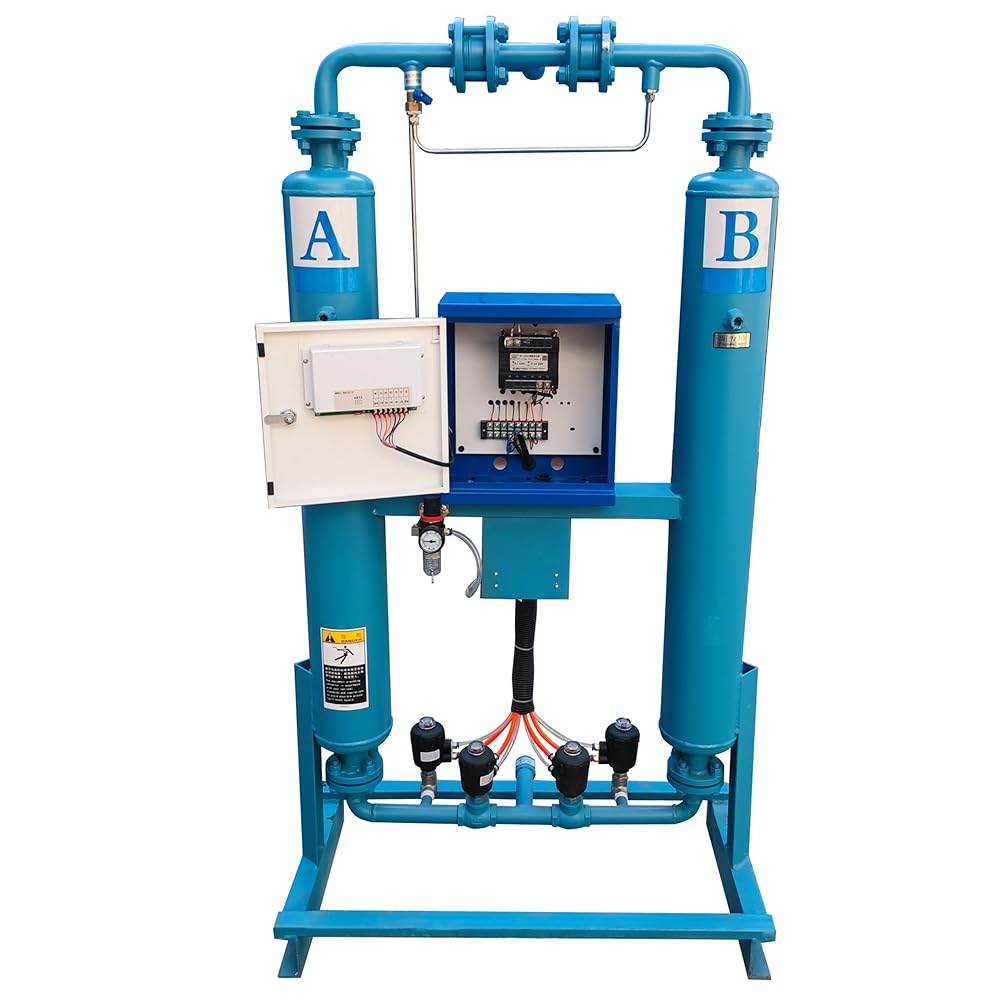

[Intelligent Controller]: The air drying process is automatically controlled by the YX intelligent controller using advanced microcomputer technology to improve the air purification efficiency and reduce the power loss.
[Attention of Installation]: According to the foundation drawing to install it. Pay attention to the verticality of the cylinder. Need to be fastened and tightened the equipment after a period of use. Connecting inlet and exhaust pipes, filter and efficient oil remover should be as close as possible.non-safe voltage electrical parts shall be effectively grounded to ensure safety. The muffler shall be connected to the outside room.
وصف

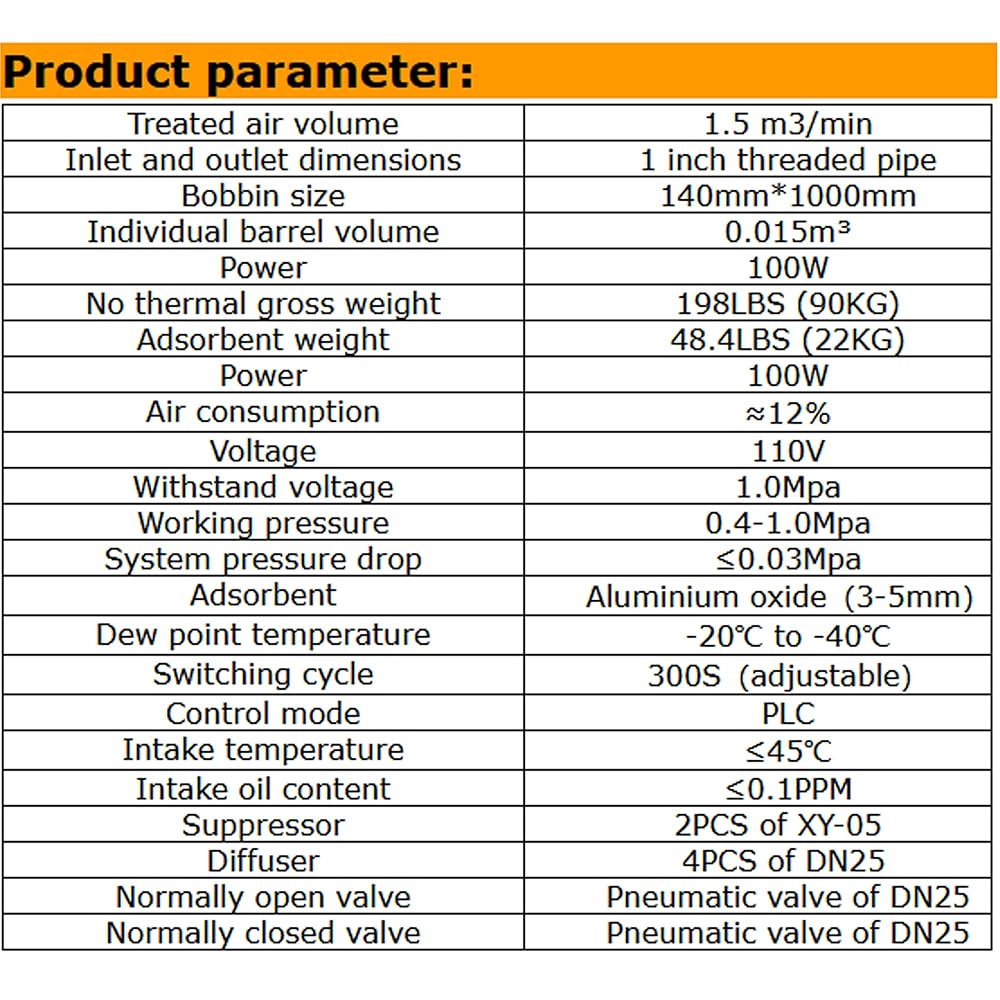

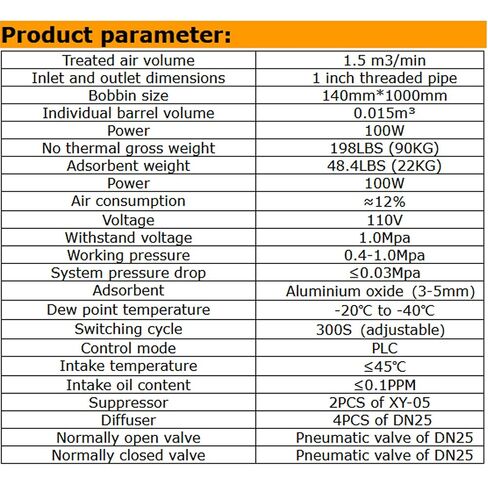

Product parameter:
Treated air volume: 1.5 m3/min
Inlet and outlet dimensions:1 inch threaded pipe
Bobbin size: 140mm*1000mm
Individual barrel volume: 0.015m³
Power: 100W
No thermal gross weight: 198LBS (90KG)
Adsorbent weight: 48.4LBS (22KG)
Air consumption: ≈12％
Voltage: 110V
Withstand voltage: 1.0Mpa
Working pressure: 0.4-1.0Mpa
System pressure drop: ≤0.03Mpa
Adsorbent: Aluminium oxide（3-5mm）
Dew point temperature: -20℃ to -40℃
Switching cycle: 300S（adjustable）
Control mode: PLC
Intake temperature: ≤45℃
Intake oil content:≤0.1PPM
Suppressor:2PCS of XY-05
Diffuser: 4PCS of DN25

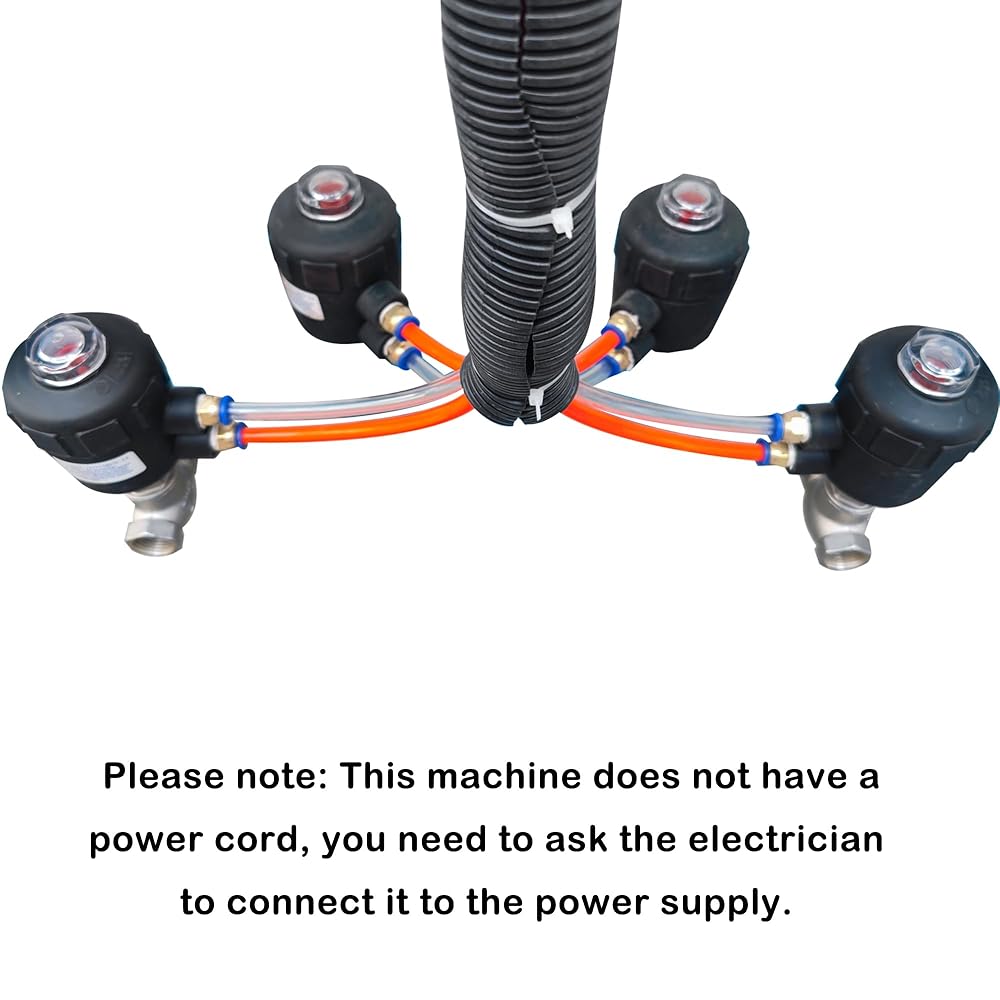

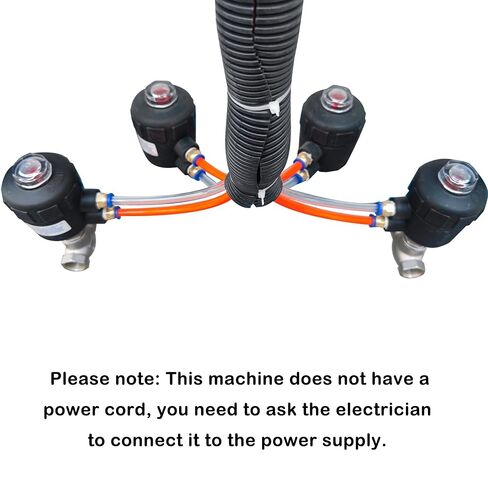

Normally open valve: Pneumatic valve of DN25
Normally closed valve: Pneumatic valve of DN25
