Description
Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged.
The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable.
By using ISO components, system assembly is quick and cost effective. The ISO dimensions of flange sizes 10, 16, 25, 40 and 50.

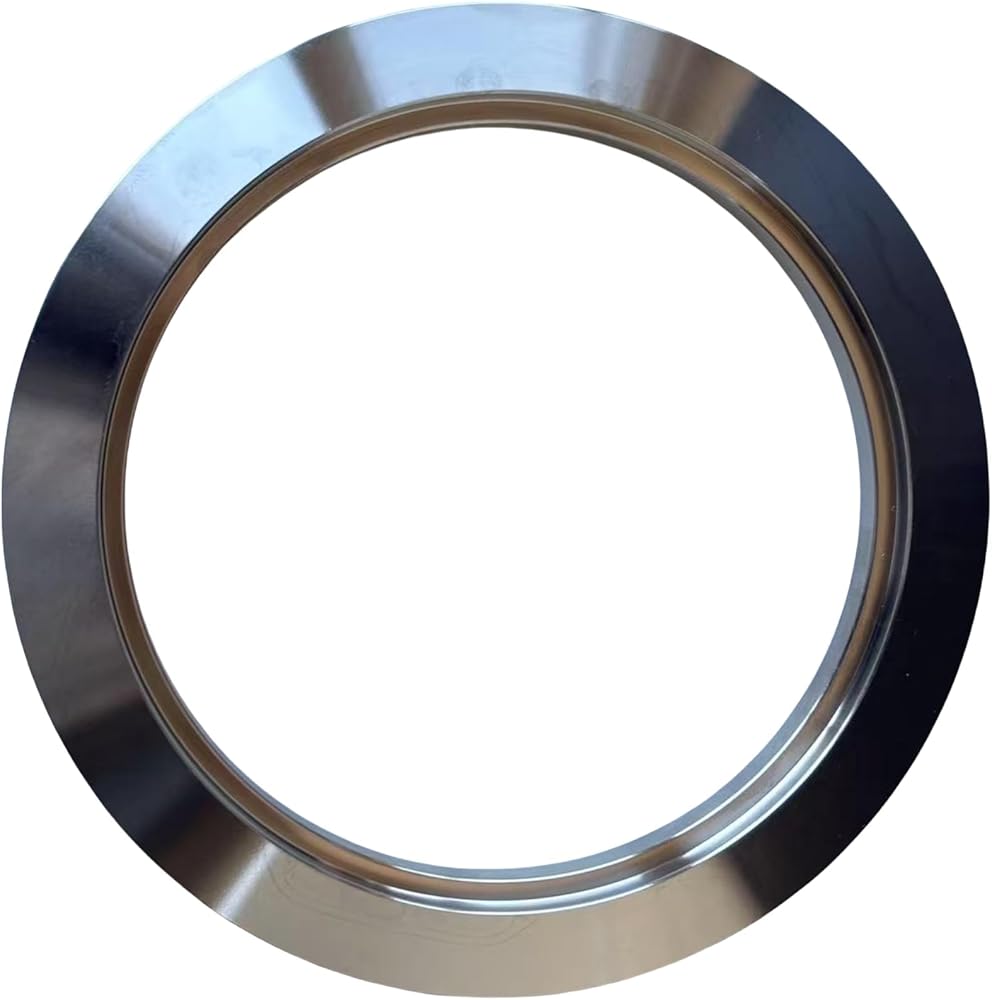

The KF Bored Blind Flange (KF Flange Blind Plate) is an essential component used in vacuum systems, commonly applied in situations that require quick installation and removal.
The KF Bored Blind Flange is primarily used to seal openings in vacuum pipelines, providing both a sealing and closing function. It consists of a disc-shaped blind plate with a KF flange interface, with a bored hole at its center. This hole allows for the connection of pipes and equipment or facilitates future maintenance and inspection operations.
The flange is devised for simple and efficient closure of pipe openings, while also being easily removable and replaceable when necessary, avoiding the need for welding or other fixed methods. Due to its compact and standardized devise, the KF Bored Blind Flange is widely used in vacuum equipment, laboratory instruments, and other precision devices.
Installation
The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp.
Vacuum range
Elastomer seal: >= 1 x 10-8 Torr
Temperature range
Viton: -50°C to 200°C
Material: 304 stainless steel
Process: mirror polishing
Usage: welding flange
Package includes:5pcs KF Bored Blank Weld Flange
