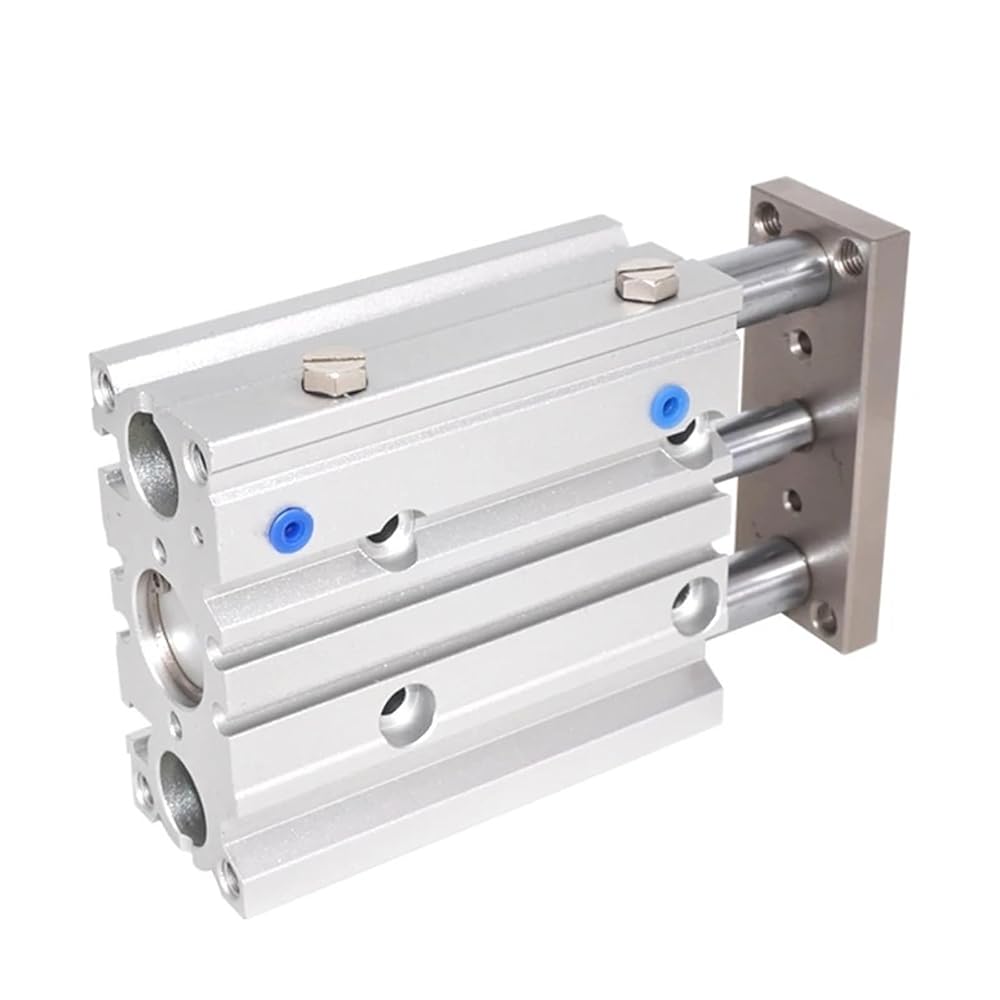

أسطوانة توجيه رفيعة ثلاثية المحاور MGPL/MGPM 32 بقطر أسطوانة 32 مم وشوط قضيب توجيه دقيق 25-400 مم اختياري (شوط 350 مم، MGPM32) in Saudi Arabia

MGPL/MGPM 32 Thin Three-axis Guide Cylinder with a Cylinder Diameter of 32mm and a Precision Guide Rod Stroke of 25-400mm is Optional(350mm Stroke,MGPM32)

SAR 2,018
ماركة
NPASDHOIW
وزن
50 g
اللون350mm السكتة الدماغية
مقاسMGPM32
– 1 +

مميزات خاصة

  • Three axis integrated structure: innovatively integrating the main cylinder and two precision guide rods into a compact unit, it can simultaneously output linear thrust and withstand lateral loads and moments, with strong operational rigidity and stability far exceeding ordinary cylinders.
  • Excellent torsional and load-bearing capacity: The built-in high rigidity linear bearing and guide rod combination can effectively resist the overturning moment caused by eccentric load, prevent piston rod jamming, and ensure smooth operation of the equipment at high speed or high load.
  • Ultra thin design saves space: Adopting optimized thin design, the overall structural height is low, significantly saving the vertical installation space of equipment, which is very suitable for use in space limited automation equipment and precision devices.
  • High repeatability positioning accuracy: The precise guide rod guidance system eliminates the rotation and radial clearance of the piston rod, achieving extremely high repeatability positioning accuracy, perfectly suitable for applications such as precision pressing, positioning, and inspection.
  • Flexible installation and selection: We offer multiple installation methods such as MGPM (flange installation) and MGPL (foot mount installation), with a cylinder diameter of 32mm and a stroke coverage of 25mm to 400mm, which can be flexibly configured according to your specific structural needs.

وصف

Type : Cylinder
Origin : Mainland China
We prioritize customer satisfaction.

Our responsive customer service team is available to assist you with any questions or concerns you may have.
