Reducer, servo motor
Reducers
Product specification details:
Compatible motor: Nema23 frame stepper motor/servo motor
Reduction ratio: 4 5 6 10 (please specify the required ratio when placing the order)
Gear type: Planetary Gearbox
Structural form: Right Angle
Material: Metal shell alloy steel gear
Applications: Computerized Numerical Control machine tools 3D printers engraving machines robots automation equipment precision conveyor systems etc.
H E N G L I Z I D O N G H U A
Packing Content
1 Pcs PXW57/ PXW60 Right Angel Plandetary Reducer
(Optional Ratio:4/5/6/10/)
Right angle design master of space utilization
The unique 90 ° input/output shaft structure allows you to easily optimize the mechanical layout and install it perfectly in narrow and limited spaces completely breaking free from design bottlenecks and creating more compact and efficient equipment.
Planetary gear structure symbol of power and precision
Adopting high-strength alloy steel planetary gear structure it has excellent characteristics of high rigidity and low backlash. The output Tq is surging and strong running smoothly and quietly not afraid of heavy load challenges ensuring precise and error free transmission every time greatly improving your machining and positioning accuracy.
Multiple speed ratios one-stop solution
We offer various reduction ratio options such as4 5 6 10 16 20 24 30 36 40 50 60 etc. Whether you need higher Tq output or more optimized speed matching you can always find the one that is most suitable for your application scenario meeting all your design needs.

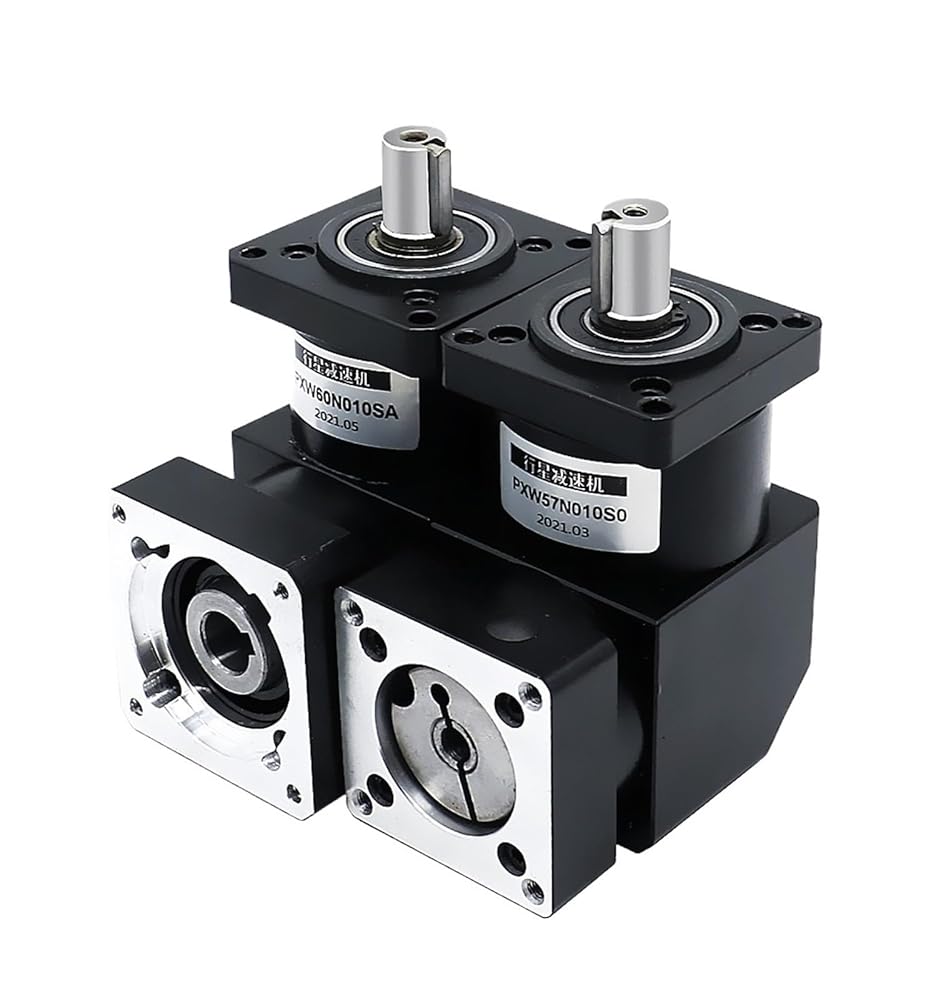

PXW57/60 Right Angle Planetary Reducer
H E N G L I Z I D O N G H U A
PXW57 ReducerSize Display
Input Side First Level 141 Second Level 174 Output Side
Level
First Level
Second Level
Third Level
Reduction Ratio
4/5/6/10
16/20/24/36
64/96/144/216
Length of Reducer(MM)
103
117
131
Rated Load(N.M)
15
30
40
Max Load(N.M)
25
40
50
Full Load Effectiveness(%)
90
86
80
Backlash Precision(arcmin)
20
30
65
IP Grade (IP)
65
65
65
Weight(KG)
0.8
1.1
1.1
Noise(DB)
60
60
60
Service Lift(H)
20000
20000
20000
Lubrication
Grease(Long-term Lubrication)
Grease
Grease
Mounting Type
Flange
Flange
Flange
H E N G L I Z I D O N G H U A
PXW60 ReducerSize Display
Input Side First Level 103 Second Level 117 Output Side
Level
First Level
Second Level
Third Level
Reduction Ratio
4/5/6/10
16/20/24/36
64/96/144/216
Length of Reducer(MM)
103
117
131
Rated Load(N.M)
15
30
40
Max Load(N.M)
25
40
50
Full Load Effectiveness(%)
90
86
80
Backlash Precision(arcmin)
20
30
65
IP Grade (IP)
65
65
65
Weight(KG)
0.8
1.1
1.1
Noise(DB)
60
60
60
Service Lift(H)
20000
20000
20000
Lubrication
Grease(Long-term Lubrication)
Grease
Grease
Mounting Type
Flange
Flange
Flange
