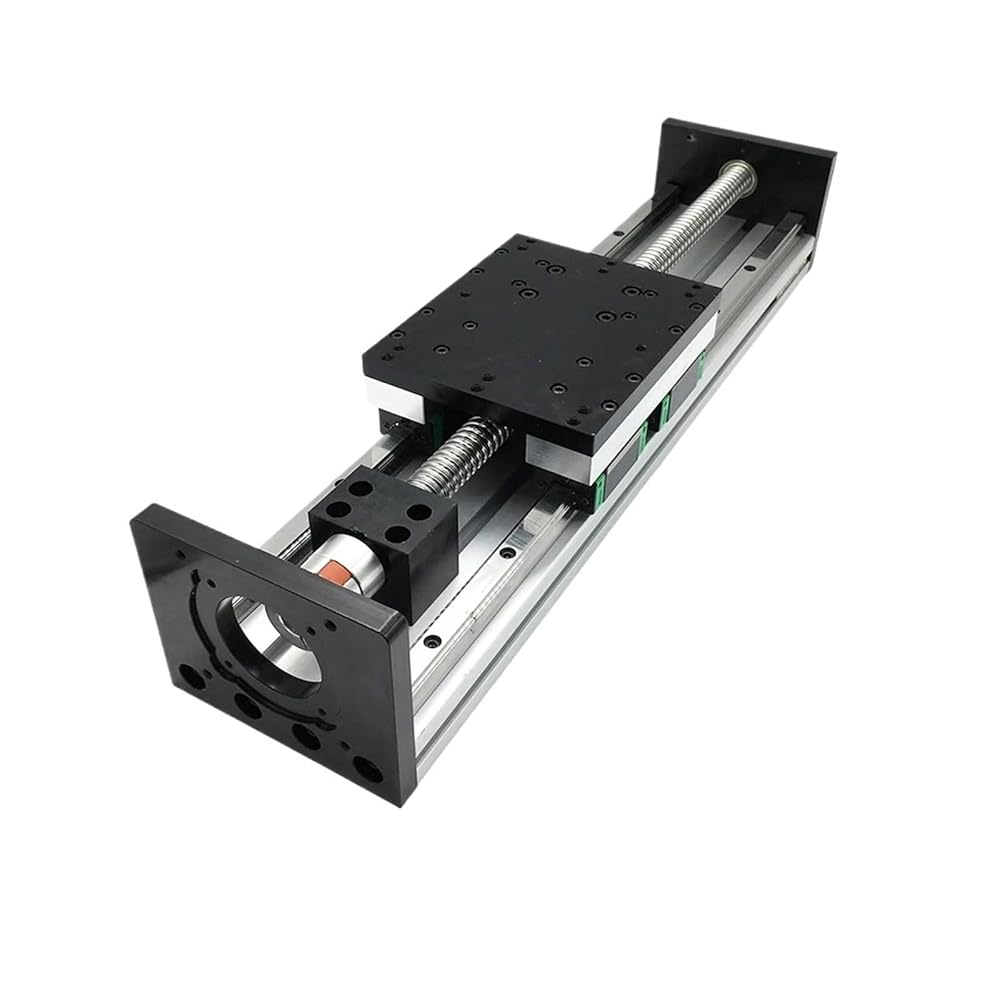

Linear Motion Guide Actuators
Model: SXG150*125
Ball screw model: SFU1605 / SFU1610 / SFU2005 / SFU2010
Ball screw accuracy: C7
Effective stroke: 50mm-1000mm optional
Total length: effective stroke + 204mm
Mobile phone panel size: 150*125mm
Guide rail diameter: 15mm
Guide rail type: 2*HGR15
Slider type: 4*HGH15CA
Horizontal load-bearing capacity: maximum 120KG
Vertical load-bearing capacity: maximum 60KG
Maximum speed: 500mm/s
Ball screw repeatability: 0.02-0.03mm
