مميزات خاصة

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

وصف

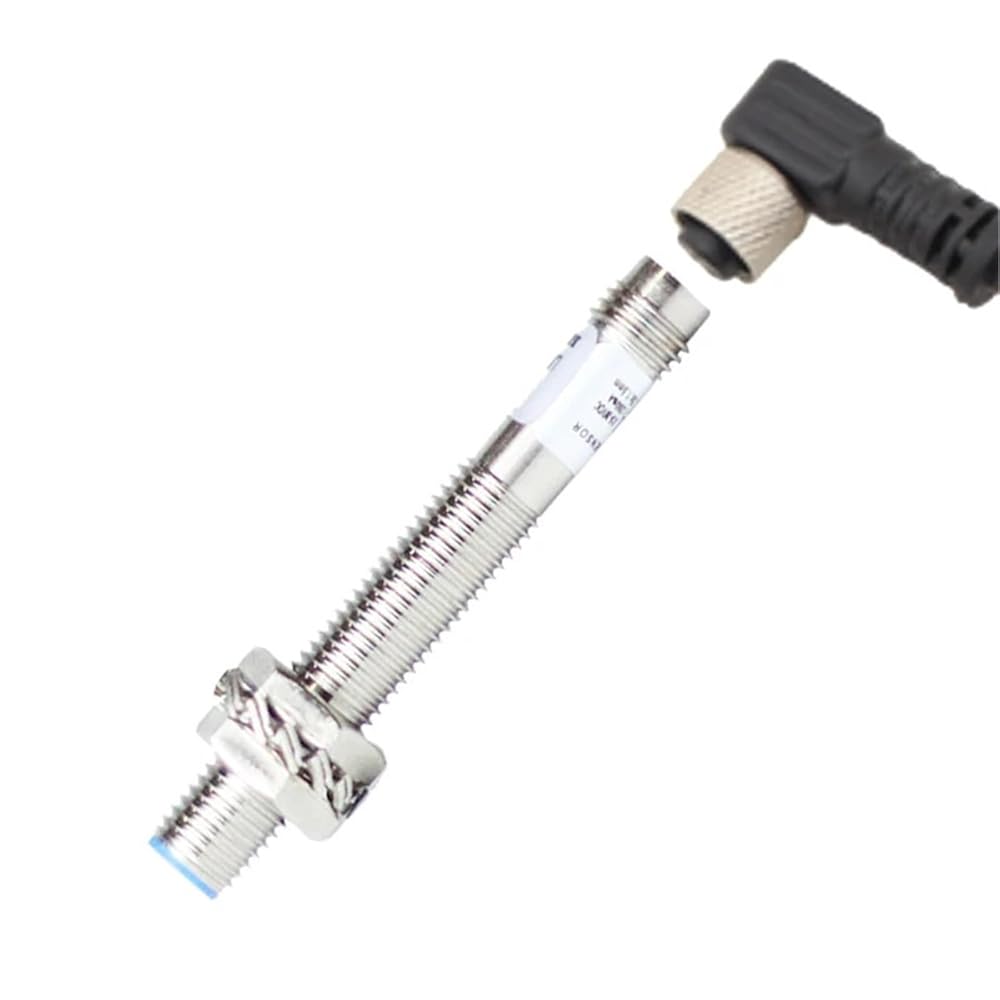

Inductive Proximity Switch LM8 With 2M, 3-pin Air Plug Cable 1mm / 2mm AC DC 2-wire NPN PNP NO NC Proximity Sensor, 1pc
Features:
1) Compact volume, Diversified exterior
2) High precision of repeated location
3) Good performance of anti-interference
4) High on-off frequency, Wide voltage range
5) Dust proof, vibration proof, water proof and oil proof
6) With short-circuit protection and inverted connecting protection
Current : 100mA(DC2wire)/200mA(DC3wire)/400mA(AC)
Material : Stainless steel
Certification : None
Switch Type : Proximity Switch
Model Number : LM8 / LJ8
Features : Inductive type proximity sensor
Item Type : SWITCHES
Standard detected object : 8*8*1(A3 iron)
Repeated precision : 0.01
DC/AC Response frequency : 200Hz(DC) / 20Hz(AC)
Working environment temperature : -25C to 75C
Insulation resistance : more than 50Mohm
Shell material : Metal
Protection grade : IEC standard IP67
