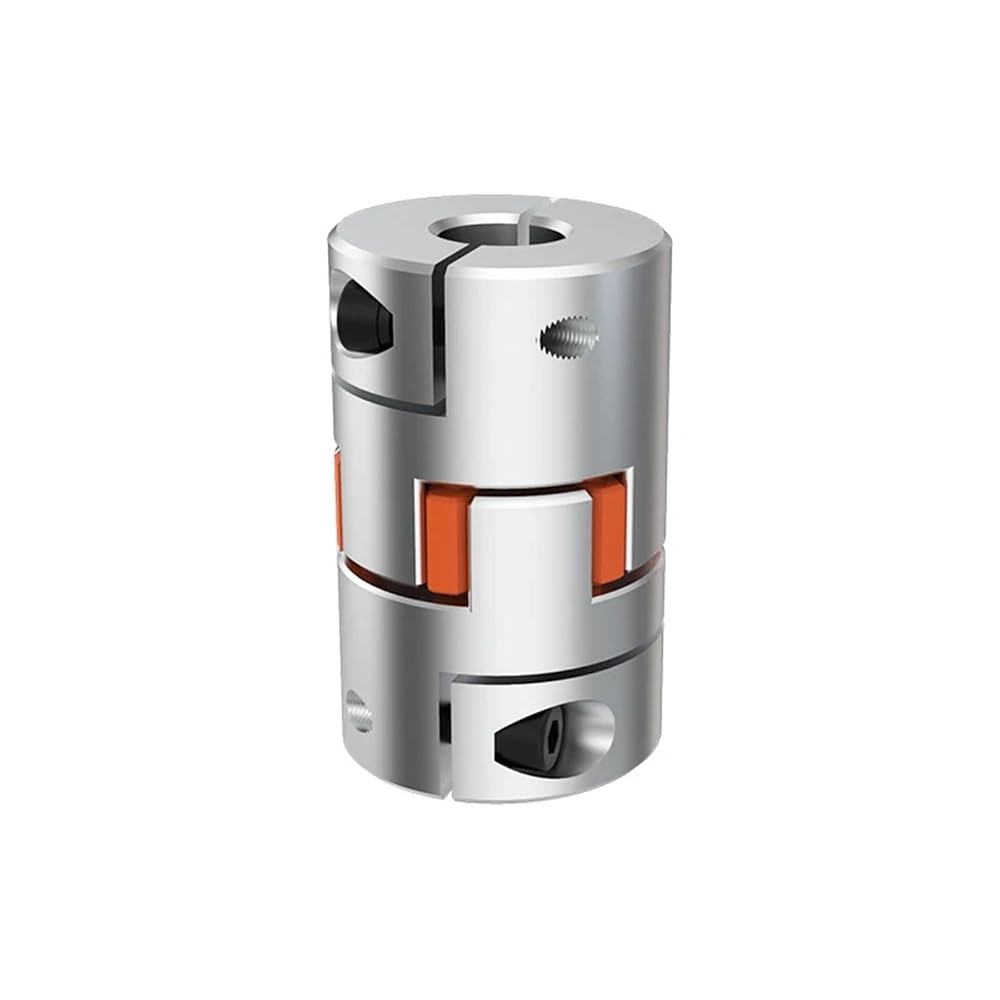

Couple Series 1PC Flexible Plum Clamp Coupler Shaft Size CNC Jaw Shaft Coupling/8/10/12/14/16mm Couples(10mmx14mm) in Saudi Arabia Couple Series 1PC Flexible Plum Clamp Coupler Shaft Size CNC Jaw Shaft Coupling/8/10/12/14/16mm Couples(10mmx14mm) in Saudi Arabia

12mmx16mm

SAR 194
Color12mmx16mm
– 1 +

Special Features

  • Robust Material:Constructed from durable aluminium, ensuring long-lasting performance.
  • High Torque Capacity:Boasts a max torque of 16n.m (3 jaw), suitable for high-power applications.
  • Clamp Floating Shaft Coupling|Flexible Design:Features a flexible jaw/spider structure, allowing for misalignment up to 1 degree.
  • Wide Range of Sizes:Available in 8 to 65mm diameters, catering to diverse shaft coupling needs.
  • High Speed Performance:Supports up to 19,000rpm, ideal for fast-moving machinery.

Description

After you choose the body length and outside diamesion, pls must leave us message the inner hole size,it is very important!!!
(2/3JAW)
Clamping
Type
ONE SIDE HOLE SIZE CAN MESSAGE(D1):
6/7/8/9/10/11/12/13/14/15/16MM
THE OTHER SIDE HOLE SIZE CAN MESSAGE(D2):
6/7/8/9/10/11/12/13/14/15/16MM
Shaft diameter
Keyway width
Keyway depth
==========
Standard or Nonstandard : Standard
Flexible or Rigid : Flexible
Material : Aluminium
Structure : Jaw / Spider
Origin : Mainland China
Rated Torque : 7.4n.m (2 jaw) 8n.m (3 jaw)
Max Torque : 14.8n.m (2 jaw) 16n.m (3 jaw)
Inner diameter : 6-16mm
Max speed : 18000tpm
Moment of Inertia : 6.0*10-6 kg.m2
Permissible parallel : 0.15mm
Permissible angular misalignment : 1 degree
Installation : set screw / clamp
