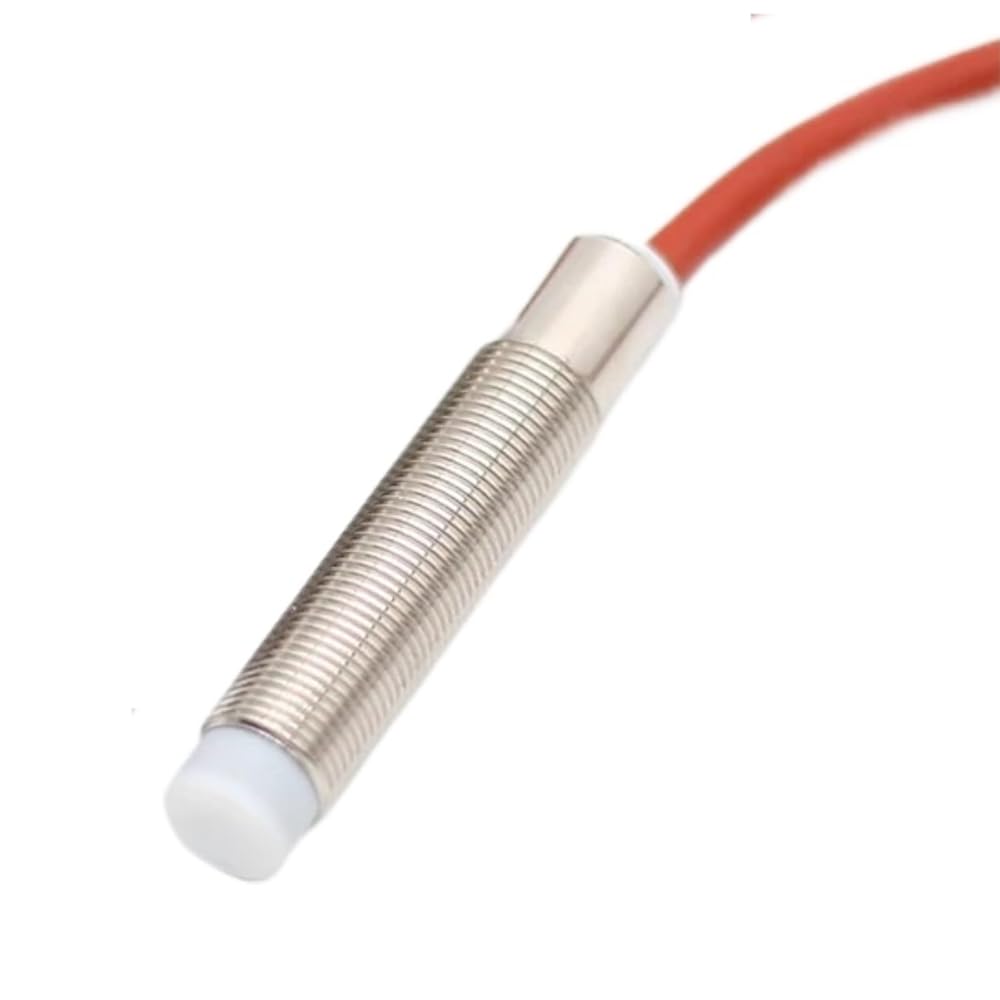

مفتاح تقريب لدرجة الحرارة العالية، مستشعر M12/M18/M30 150 تيار مستمر ثلاثي الأسلاك NPN PNP NO NC تحريض معدني، قطعة واحدة (M18unShielded، NPN NO) in Saudi Arabia مفتاح تقريب لدرجة الحرارة العالية، مستشعر M12/M18/M30 150 تيار مستمر ثلاثي الأسلاك NPN PNP NO NC تحريض معدني، قطعة واحدة (M18unShielded، NPN NO) in Saudi Arabia

مفتاح تقريب لدرجة الحرارة العالية، مستشعر M12/M18/M30 150 تيار مستمر ثلاثي الأسلاك NPN PNP NO NC تحريض معدني، قطعة واحدة (M12Shielded، NPN NC)

SAR 489
ماركة
LOXNVUY
وزن
202 g
اللونM12مدرع
مقاسإن بي إن إن سي
– 1 +

مميزات خاصة

  • 【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
  • 【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
  • 【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
  • 【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
  • 【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

وصف

High Temperature Proximity Switch, M12/M18/M30 150 Sensor DC Three-wire NPN PNP NO NC Metal Induction, 1pc
M12: 1000Hz / 500Hz
M18:500Hz/400HZ
M30:400Hz/300Hz
Detection distance
M12: flush 2mm/non flush 4mm
M18: flush 5mm/non flush 8mm
M30: flush 10mm/non flush 15mm
Response time:0.5ms
Shell material:nickel plated
Wire material:250high temperature silicone wire
Protection grade:IP67
Working:environment temperature
M12:0- 120
M18/M30:0-150
Output mode:NPN PNP NO NC
Overload current:protection point
M12/M18: 180mA
M30:150mA
Working voltage:10-30vdc
Standard line length：2m
High-concerned chemical : None
Material : Copper
Switch Type : Proximity Switch
Model Number : GLJ12/18/30
Features : High temperature resistance
Item Type : SWITCHES
Maximum load current : 150mA
Response time : 0.5ms
Switching hysteresis : 15% (SR)
Protection grade : IP67
Overload current protection point : M12/M18:180mA M30:150mA
Standard line length : 2m
No load current : 10mA
Installation method : flush/non flush
Shell material : nickel plated
Output mode : NPN PNP NO NC
Working voltage : 10-30vdc
Detection distance : M12: flush 2mm/non flush 4mm
Detection distance2 : M18: flush 5mm/non flush 8mm
Detection distance3 : M30: flush 10mm/non flush 15mm
