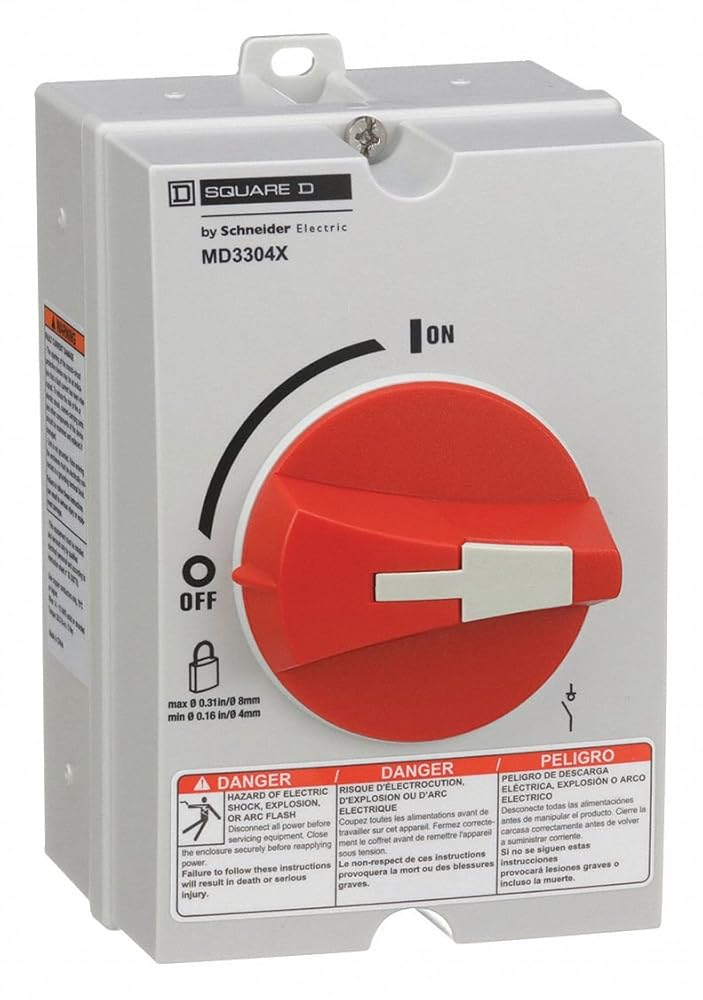

Economical switch is suitable for use as a motor disconnect. Serves as an “On/Off “switch for a motor when the motor branch circuit protection is in a central enclosure. Feature clear “On/Off” indicator and built-in handle interlock that helps prevent cover removal when in “On” position. OSHA lockout/tagout compatible and accepts up to three 8mm padlocks. Neutral assembly included.

Item: Enclosed Disconnect Switch
Protection Method: Nonfusible
Duty: General
Amps: 30
Voltage: 600VAC
Phase: 3
HP: 25 HP @ 600VAC
NEMA Enclosure Type: 1, 3R, 4, 4X, 12
IP Rating: 66
Material: Non-Metallic
Number of Wires: 4
Number of Poles: 3
Contact Form: 3PST
Height: 6"
Width: 3.9"
Depth: 4.4"
Standards: UL Listed
Neutral Assembly Included: Yes
Fuse Kit (Class R): Non-Fusible
Includes: Red Handle
