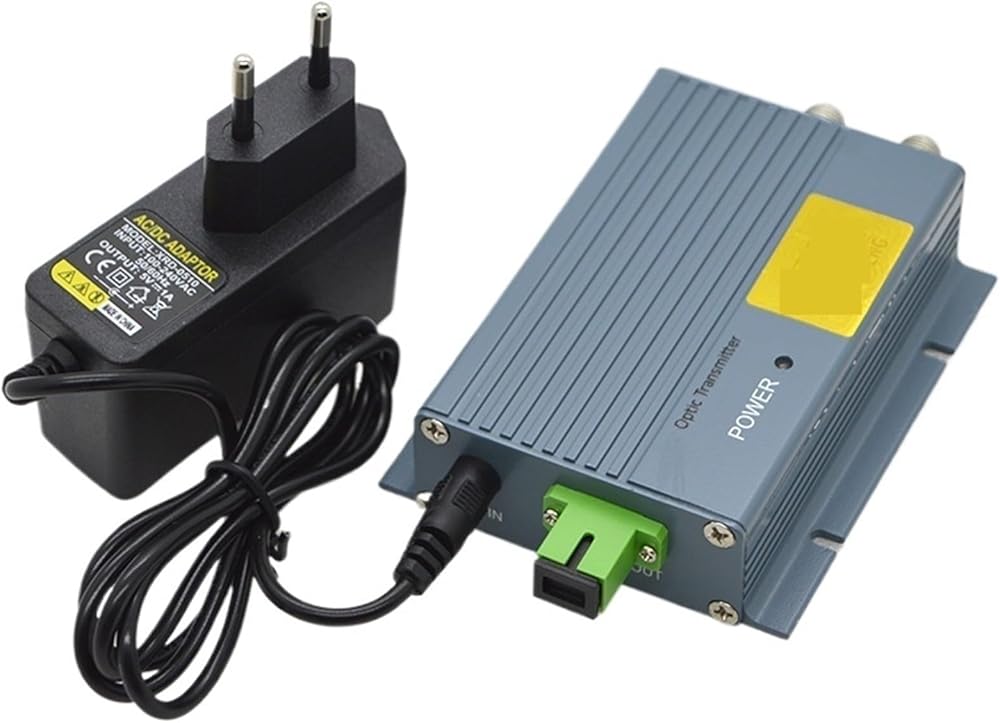

FTTH CATV Mini Optical Transmitter 2 RF Output 10mw 47-1218MHz With AGC
1 Product description
OTP23 1310/1550nm Transmitter specifically designed for CATV FTTH network.
Its main feature is low power consumption,Ultra-wide RF input range. AGC optical
constant level output, small Volume and high reliability.Adopting aluminum alloy shell,
with optical control AGC circuit built in, compact structure and external modular
power supply make the installation and debugging very convenient. It is an ideal
product to build FTTH CATV network.
2. Product feature
1. Cast aluminum shell with good heat dispersion.
2. Adopts GaAs module as RF amplifying module,The RF input range is
50~90dbuv.
3. RF input module AGC control range 50~68dbuv or 70~85dbuv
4. Low consumption design and total consumption 2w, The power supply can be directly
input or fed from the RF outlet. The voltage range of the input power is DC8~12V.
5. Realize the 12V input port feeding way of power supply
3. Technical parameter
Note1:
For conventional RF input, the input range is 70 to 88dbuv. When the input level is lower than 70
dBuV, turn the ATT knob clockwise 1 turn and stop when you hear the click sound.
Note 2:
In the AGC range, this output ranges from 82 to 84dbuv, if more than 84dbuv, turn the ATT knob
counterclockwise, if less, turn it clockwise.
4. Diagram
==========
Wireless function : No
High-concerned chemical : None
Fiber Type : Single Mode
Connector Type : SC/APC
Item Length : 1m
Model Number : 1550nm
product name : FTTH catv mini Optical Transmitter
Working wavelength : 1550nm
Optical output : 10mw
Bandwidth : 47-1218MHz
AGC Range : 70~88dBuV
RF input Range : 50~88dBuV
Power supply : DC5V1A
