Fiber Optic Transmitters
FTTH CATV 1550nm Direct Modulatio Mode Optical Transmitter 7~10dBm 25km RF to Optical Converter Dual Power Supply
Working wavelength: 1550 ± 15 (nm)
Output optical power: 7~10dbm (MW)
Optical connector type: fc/apc &scapc
Overall power consumption 30 W
Operating temperature: -5~45 ()
Net product size: 482 (L) 357 (W) *44 (H)
Package size: 490 (L) *595 (W) *120 (H
Transmission distance: 25km
RF input level: the recommended optimal value is 80dbuv
Power supply voltage: AC220V (16ov-265v)/
AC110V(90V-130V)/
DC48V(38V-58V)
Weight: 5K (g)
Direct modulation optical transmitter
Laying of fiber to the home (FTTH) network,
Constructing CATV secondary network signal transmission
It can cooperate with multi port high-power optical amplifier
Reserved dual module structure
RJ45 provides serial communication
High performance DFB
Product application
The optical transmitter is designed according to the CATV standard. It modulates the CATV RF amplitude signal into 1310nm/1550nm optical signals, and then transmits them to the optical nodes in the HFC network through a single-mode optical fiber. It is mainly used for medium-sized network transmission of TV signals. It can cooperate with multi port high-power optical amplifiers to lay the fiber to the home (FTTH) network.
optical transmitter is equipped with reliable and stable optical output power circuit and temperature control circuit of pump thermoelectric cooler to ensure the best equipment performance. Professional heat dissipation structure design, intelligent temperature control fan, low power consumption. It is an ideal choice for constructing CATV secondary network signal transmission!
Storage temperature: -30 ~+70
Relative operating humidity: maximum 95% non condensing
Functions can be added: light emitting, light emitting and RF fast. Off function module

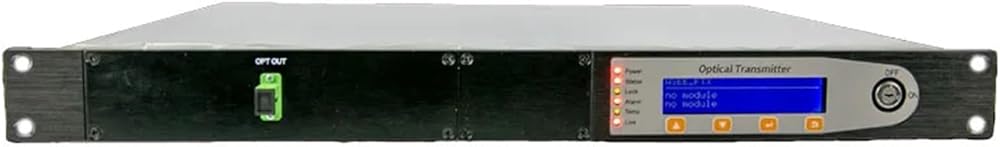

front panel
With pump switch
RJ45 network management interface, conforming to SNMP network management protocol
Micro USB2.0 interface, which can be directly connected to the computer through the data line for serial port communication
Reserved dual module structure, function modules can be added to facilitate the function expansion of the equipment, and realize multi-function of one machine the front panel key setting modifies the equipment performance parameters to meet the different network design needs of customers
Rear panel
High performance DFB with narrow spectral line, good linearity and high output power
32 is an arm processor, which can efficiently coordinate the working status of each transverse block of the whole machine, accurately monitor and control various operating parameters
Dual power supply backup, power supply voltage 220V, 110V, 48V optional
For more popular products, please click on the following link to purchase
FTTH CATV 4Way Optical Amplifier EYDFA 4Ports 16,19,20,21,22,23, 24dBm With WDM Dual-PowerSpecial
1550nm Erbium Doped Fiber Amplifier 22 dBm Modular FTTH CATV Mini EDFA WDM Optical Power Amplifier
==========
Wireless function : No
High-concerned chemical : None
Size : 59*49*12CM
Fiber Type : Single Mode
Connector Type : Hybrid
Item Length : 1m
Product Name : Direct Modulatio Mode Optical Transmitter
Working wavelength : 1550 ± 15 (nm)
Output optical power : 7~10dbm (MW)
Transmission distance : 25km
Optical connector type : SC /APC & FC/APC
