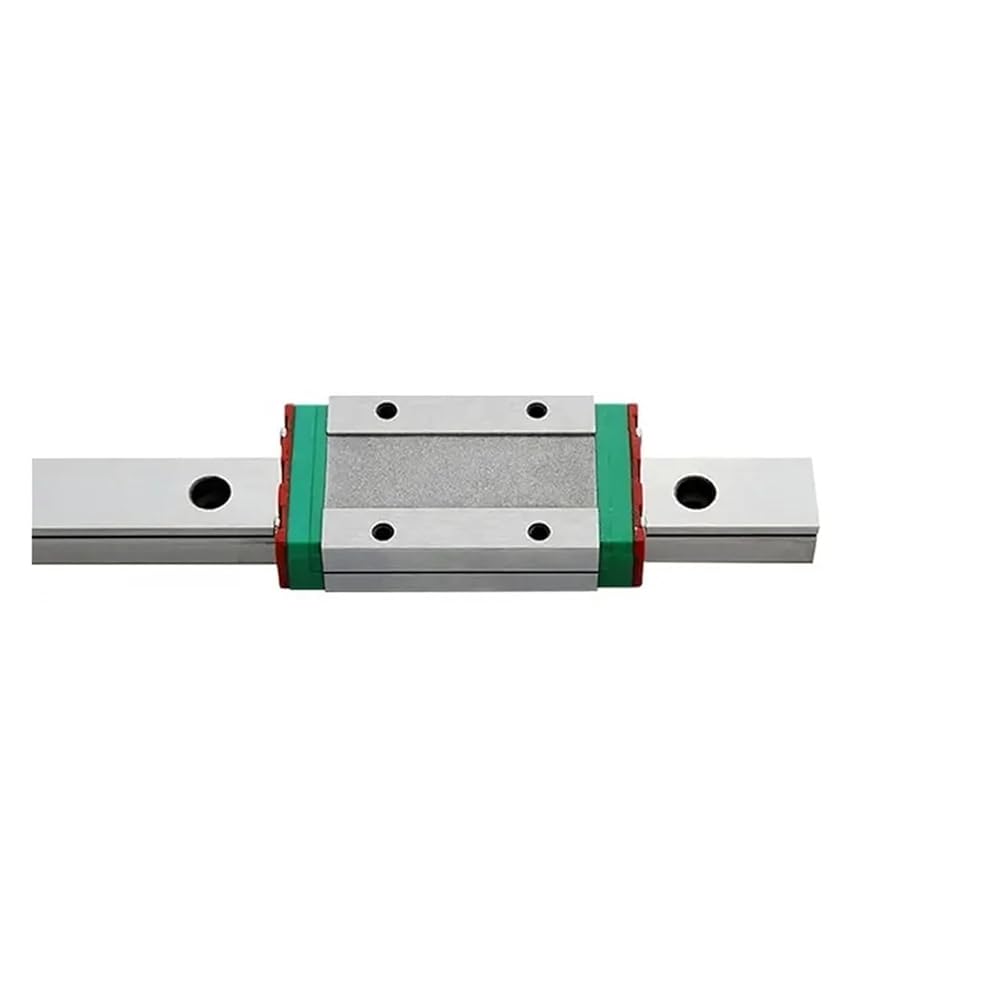

Linear Motion Guide Actuators
MGN7R Guide Rail
Combination height: 8mm
Slider height: 6.5mm
Rail height: 4.8mm
Slider thread hole: M2*2.4
Rail width: 7mm
Guide rail bolt: M2*6
MGN9R Guide Rail
Combination height: 10mm
Slider height: 8mm
Rail height: 6.5mm
Slider thread hole: M3*3
Rail width: 9mm
Guide rail bolt: M3*8
MGN12R Guide Rail
Combined height: 13mm
Slider height: 10mm
Rail height: 8mm
Slider thread hole: M3*3.5
Rail width: 12mm
Guide rail bolt: M3*8
MGN15R Guide Rail
Combined height: 16mm
Slider height: 12mm
Rail height: 10mm
Slider thread hole: M3*4
Rail width: 15mm
Guide rail bolt: M3*10
