Special Features

【Non contact sensing, durable and long-lasting】;Multiple technologies including inductance, capacitance, and optoelectronics are available, eliminating the need for contact with the measured object, avoiding collision and wear, and extending the service life of equipment and sensors
【High sensitivity anti-interference, zero misjudgment】:Adjustable sensing distance, built-in anti electromagnetic interference chip, fearless of dust and oil stains, precise detection without triggering false alarms
【Multi specification full compatibility, full scene coverage】:Micro/standard/long-distance options available, compatible with DC 2/3/4 wires and AC 2 wires, universal for assembly line/limit/sorting
【high protection, able to withstand harsh working conditions】:Stainless steel/engineering plastic shell, with a wide temperature tolerance of -25 ℃~70 ℃, dustproof, waterproof, and shockproof, suitable for use in both workshop and outdoor environments
【Triple protection+easy installation, worry free and effortless】:Short circuit/overload/reverse connection protection to prevent burning out; Embedded/non embedded/bracket installation, compatible with M8-M30 threads, single person quick deployment

Description

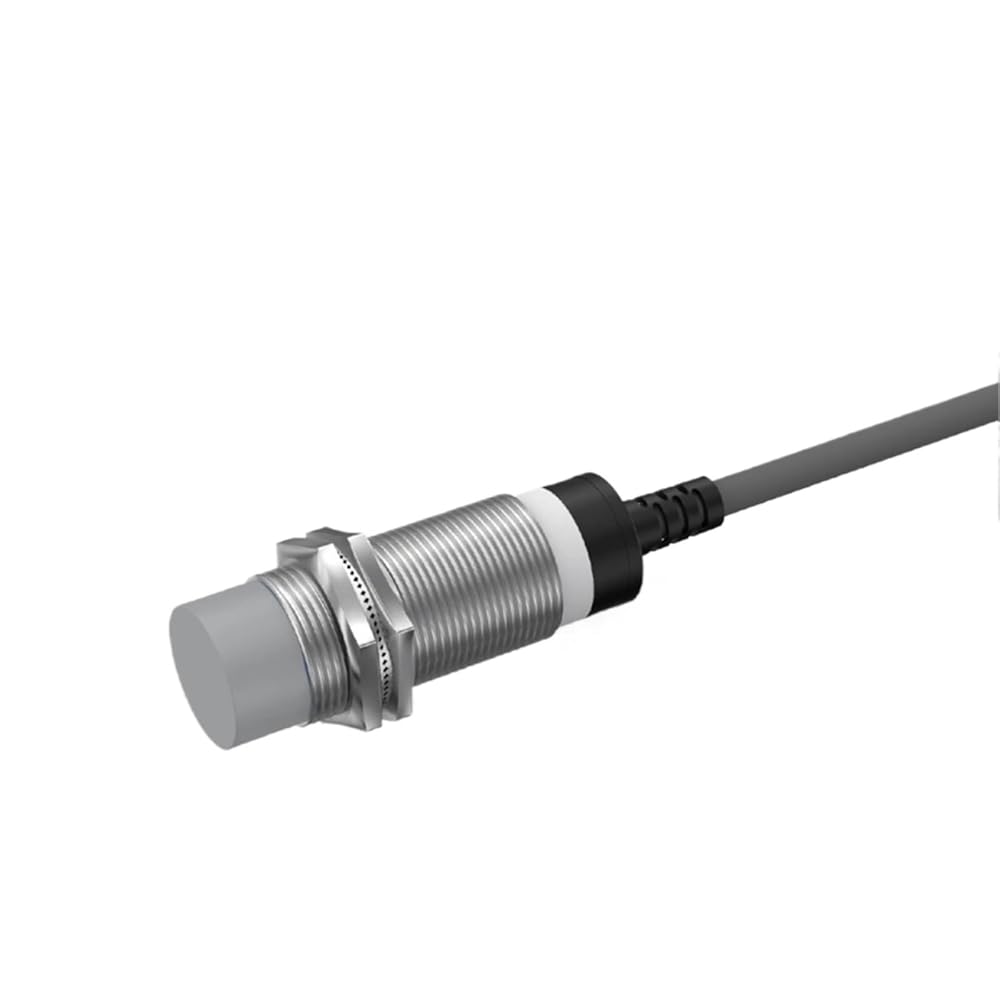

Long Distance Proximity Sensors, M18 NPN PNP 10-30V DC Sensing Range 8mm 16mm Non-contact Switch, 1pc
High-concerned chemical : None
Theory : Inductance Sensor
Material : Metal
Output : Switching Transducer
Use : Position Sensor
Sensing distance : 10mm/12mm/16mm
Assured distance : 0-9mm/10.8mm/14.4mm
Protection degree : IP 67
Switching frequency : 500Hz
Connection : 2m PVC Cable
Supply voltage : 6-36VDC 3-Wires
Theory : Self-induction
Mounting way : Flush/Non-flush
Sensing surface diameter : 18mm
