ترس ترس محرك ثقيل من الفولاذ 0.5 معامل 40 أسنان عجلة تروس دودة نحاسية 5 مم مجموعة عمود فتحة ضياء 1:40 نسبة تخفيض مع برغي in Saudi Arabia

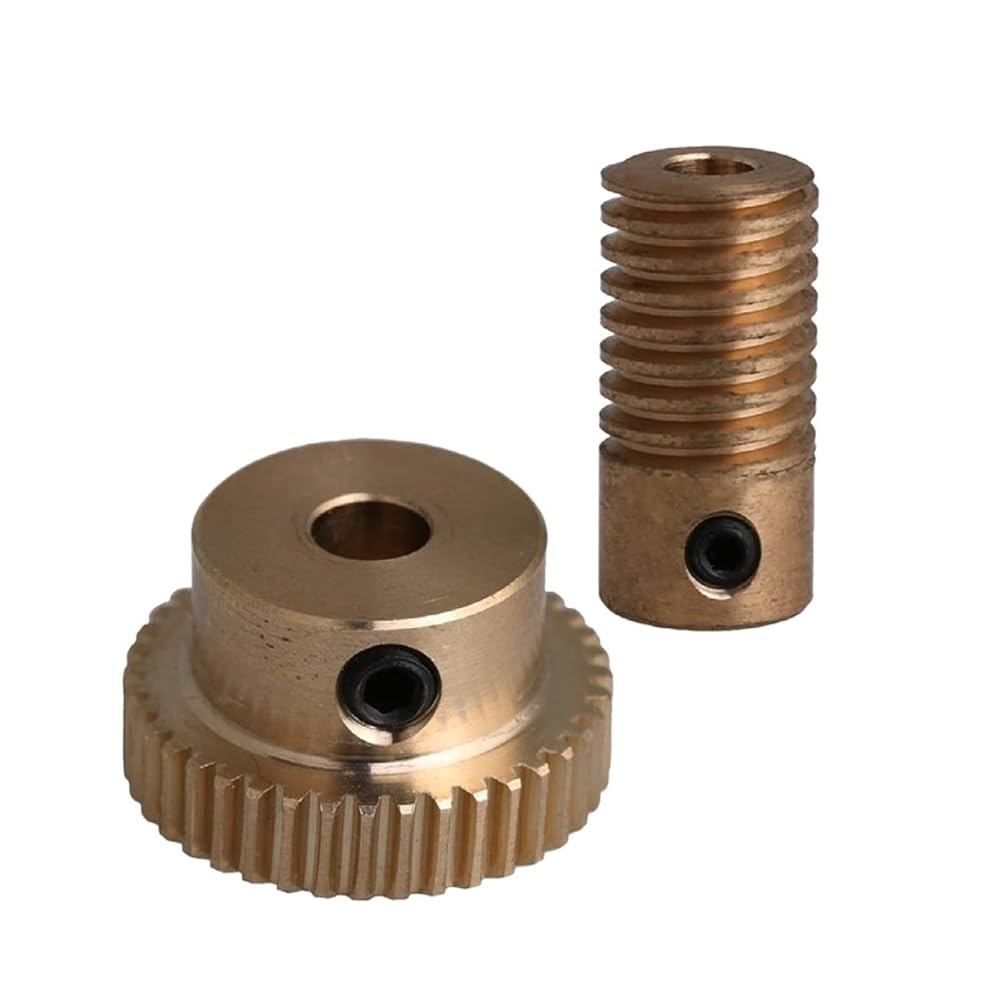

ترس ترس محرك ثقيل من الفولاذ 0.5 معامل 40 أسنان عجلة تروس دودة نحاسية 5 مم مجموعة عمود فتحة ضياء 1:40 نسبة تخفيض مع برغي

SAR 227
– 1 +

مميزات خاصة

  • 1. Each pinion is equipped with a fixing screw for easy installation.
  • 2. The spur gears are wear-resistant, produce less noise, and roll more smoothly.
  • 3. Widely used in various electric grinding machines, gearboxes, reducers, and gear reducers.

وصف

1. The spur gears are made of high-strength steel, suitable for withstanding the pressure of heavy-duty applications.
2. The structural design of the steel gears emphasizes stability and durability, enabling them to withstand long-term operation in harsh environments.
3. Precision machining processes ensure smooth gear surfaces and burr-free edges, guaranteeing safe operation.
Material: Brass
Modulus:0.5
Reduction Ratio: 1:40
Weight: 28g
Worm Gear Wheel:
Teeth:40
Teeth Dia: 21.2MM
Height: 12MM/0.47 Inch
Outer Diameter: 21MM/0.82 Inch
Hole Diameter: 5MM/0.2 Inch
Step Size: 15x7MM/0.59x0.27 Inch (Dia x H)
Overall Size: 12x21x5MM/0.47x0.82x0.2Inch(H x OD x ID)
Worm Gear Shaft:
Height: 20MM/0.79 Inch
Outer Diameter: 9.7MM/0.38 Inch
Inner Diameter: 5MM/0.2 Inch
Size: 20x9.7x5MM/0.79x0.38x0.2 Inch(H x OD x ID)
1 x Brass Worm Gear Shaft
1 x Brass Worm Wheel
2 x Screws
