بيت / Baomain / توصيلات
مشعب صمام الملف اللولبي الهوائي 24 فولت من BAOMAIN DC، 2 موضع 5 اتجاهات 4V110-06 مع كاتم صوت قاعدة 4 محطات وتركيبات سريعة للنسيج والصناعة الخفيفة والأتمتة الكيميائية in Saudi Arabia مشعب صمام الملف اللولبي الهوائي 24 فولت من BAOMAIN DC، 2 موضع 5 اتجاهات 4V110-06 مع كاتم صوت قاعدة 4 محطات وتركيبات سريعة للنسيج والصناعة الخفيفة والأتمتة الكيميائية in Saudi Arabia مشعب صمام الملف اللولبي الهوائي 24 فولت من BAOMAIN DC، 2 موضع 5 اتجاهات 4V110-06 مع كاتم صوت قاعدة 4 محطات وتركيبات سريعة للنسيج والصناعة الخفيفة والأتمتة الكيميائية in Saudi Arabia مشعب صمام الملف اللولبي الهوائي 24 فولت من BAOMAIN DC، 2 موضع 5 اتجاهات 4V110-06 مع كاتم صوت قاعدة 4 محطات وتركيبات سريعة للنسيج والصناعة الخفيفة والأتمتة الكيميائية in Saudi Arabia

مشعب صمام الملف اللولبي الهوائي 24 فولت من BAOMAIN DC، 2 موضع 5 اتجاهات 4V110-06 مع كاتم صوت قاعدة 4 محطات وتركيبات سريعة للنسيج والصناعة الخفيفة والأتمتة الكيميائية

SAR 208
ماركة
Baomain
– 1 +

مميزات خاصة

  • EFFICIENT 2-POSITION 5-WAY ACTION: Features a high-speed solenoid mechanism that provides precise 2-position 5-way air flow control. When energized, the valve instantly switches air pressure between output ports A and B, making it the perfect "Normally Closed" logical choice for driving double-acting pneumatic cylinders.
  • UNIVERSAL DC 24V POWER: Engineered with professional-grade DC 24V coils designed for low power consumption and long-term reliability. Each coil features independent status indicators to ensure stable operation and simplified monitoring in complex automated systems.
  • COMPACT 4-STATION MANIFOLD: Built on a centralized 4-station aluminum manifold base to save valuable installation space. This integrated design organizes your air lines in one location, reducing potential leak points and simplifying your pneumatic logic setup.
  • DURABLE ALUMINUM & EASY SETUP: Constructed with a high-strength aluminum alloy body for superior wear resistance and heat dissipation. The kit comes pre-installed with 6mm/8mm quick-fittings and high-efficiency mufflers, ensuring a quick, stable, and professional-grade installation right out of the box.
  • INDUSTRIAL KIT VALUE & UTILITY: This complete 4-valve assembly provides incredible value for complex automation projects, functioning as both a main control hub and a source of high-quality spares. An essential component for maintaining and upgrading textile machinery, chemical processing equipment, and light industrial production lines.

وصف

Setting up your BAOMAIN 4-valve manifold is straightforward. Follow this universal air logic for a perfect seal:
Port P (Inlet): Connect your main 8mm air supply line here. This provides the pressure for all 4 valves.
Ports A & B (Outlets): Connect these 6mm lines to your pneumatic cylinder. Energizing the coil will switch the air from A to B.
Ports R & S (Exhaust): These come pre-installed with mufflers to ensure quiet operation and prevent dust from entering the valve body.
Installation Tip: Ensure your air supply is clean and lubricated for maximum valve life. The pre-installed quick fittings allow you to simply push your tubes in for an instant, leak-proof connection.

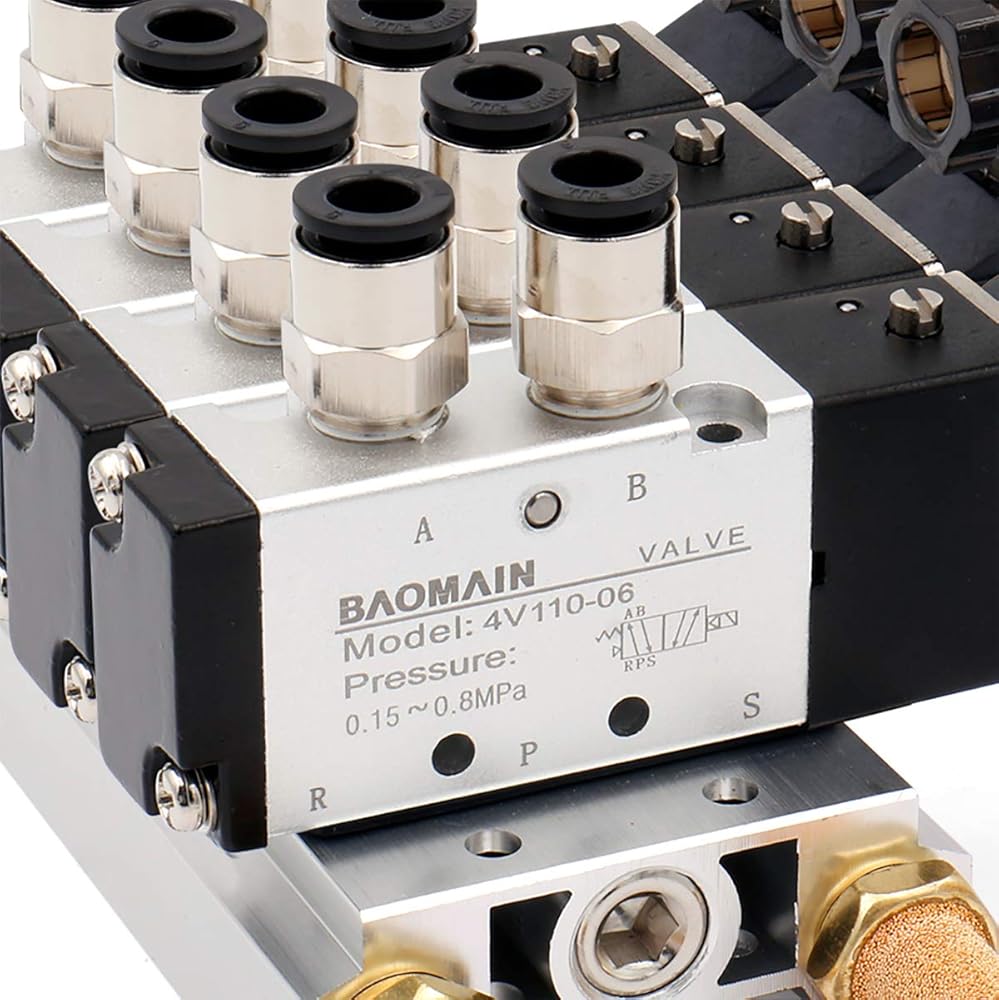

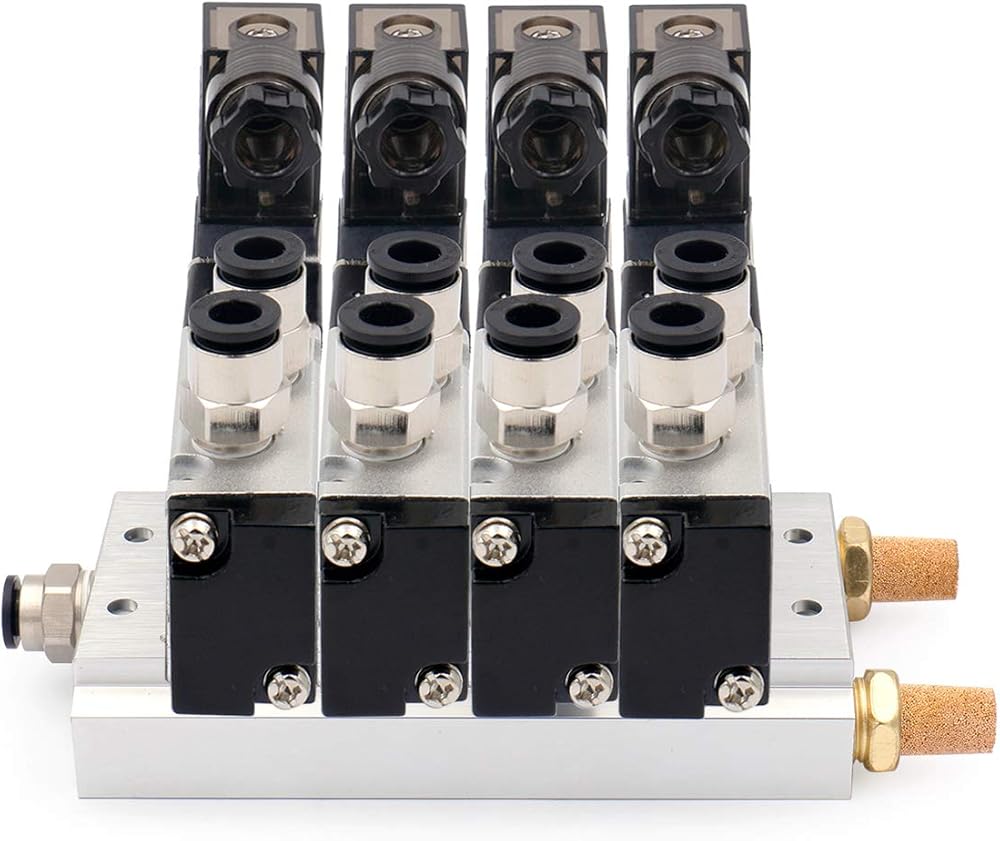

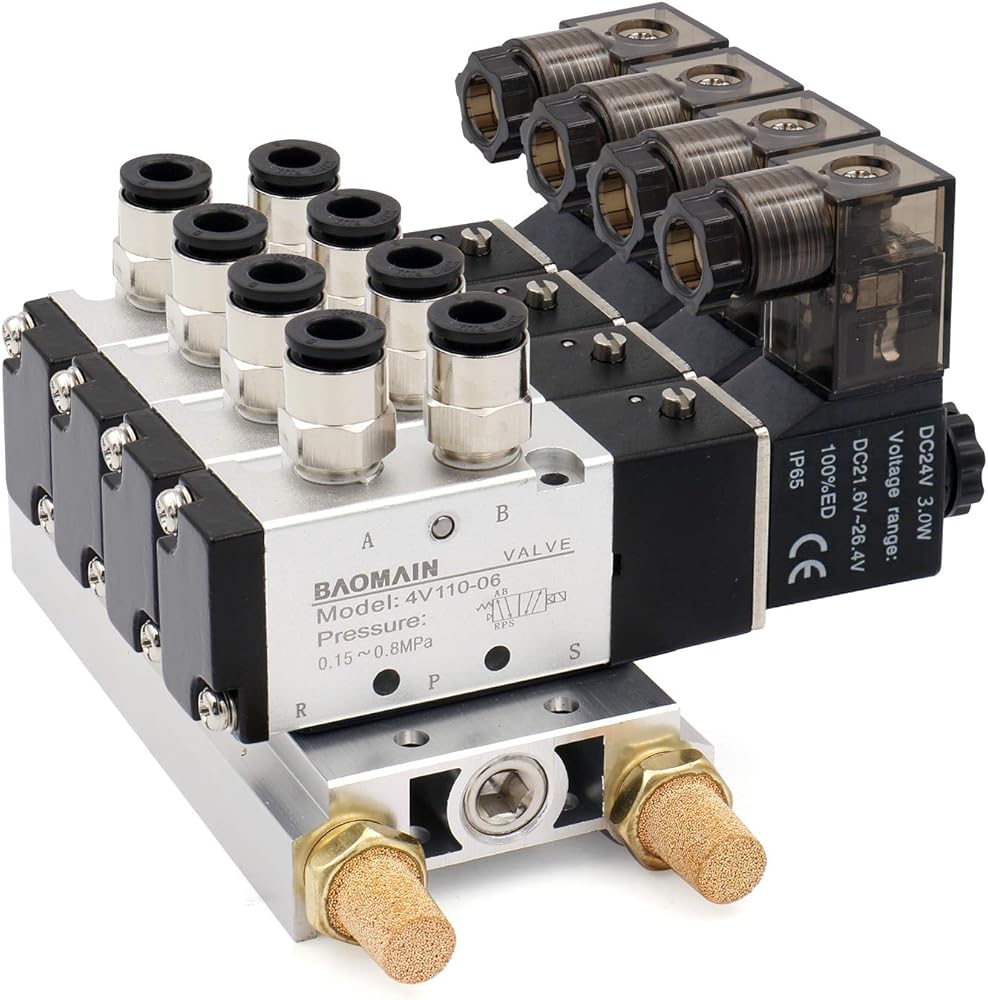

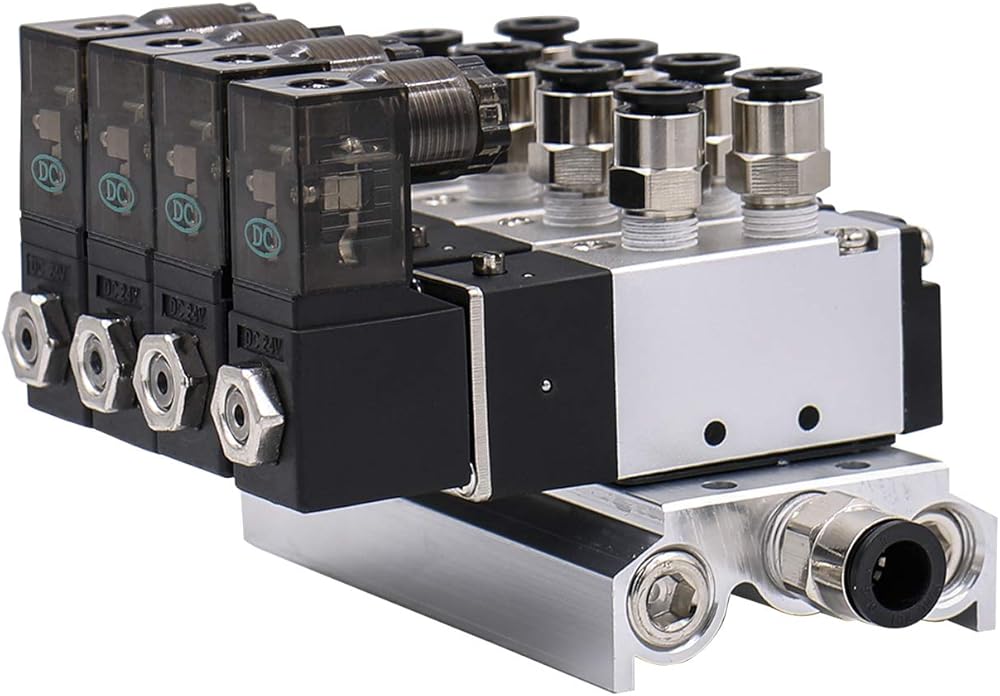

4 solenoid valves are connected on a base, 2 position 5 way and single head design.
Consisted of 5 solenoid valves and base, buit-in quick fittings and solenoid valve mufflers.
It is applied widely to the pneumatic system and mechanism, such as textile industry, light industry and chemical industry, etc.
