Isolation
When the capacitor input
Supply voltage per anode 450 450 550 V
Transformer impedance per arm 150 175 200
Output DC current 200 200 160 mA
Output DC voltage 480 560 640V
When the inductor input
Supply voltage per anode 500 550 V
Input inductance 10 10 H
Output DC current 250 225 mA
Output DC voltage 420 465 V
Extreme Rating
Anode reverse peak voltage 1500V
Peak anode current 750 mA
Anode AC power supply voltage reference curve
Output DC voltage reference curve

Channels: 1

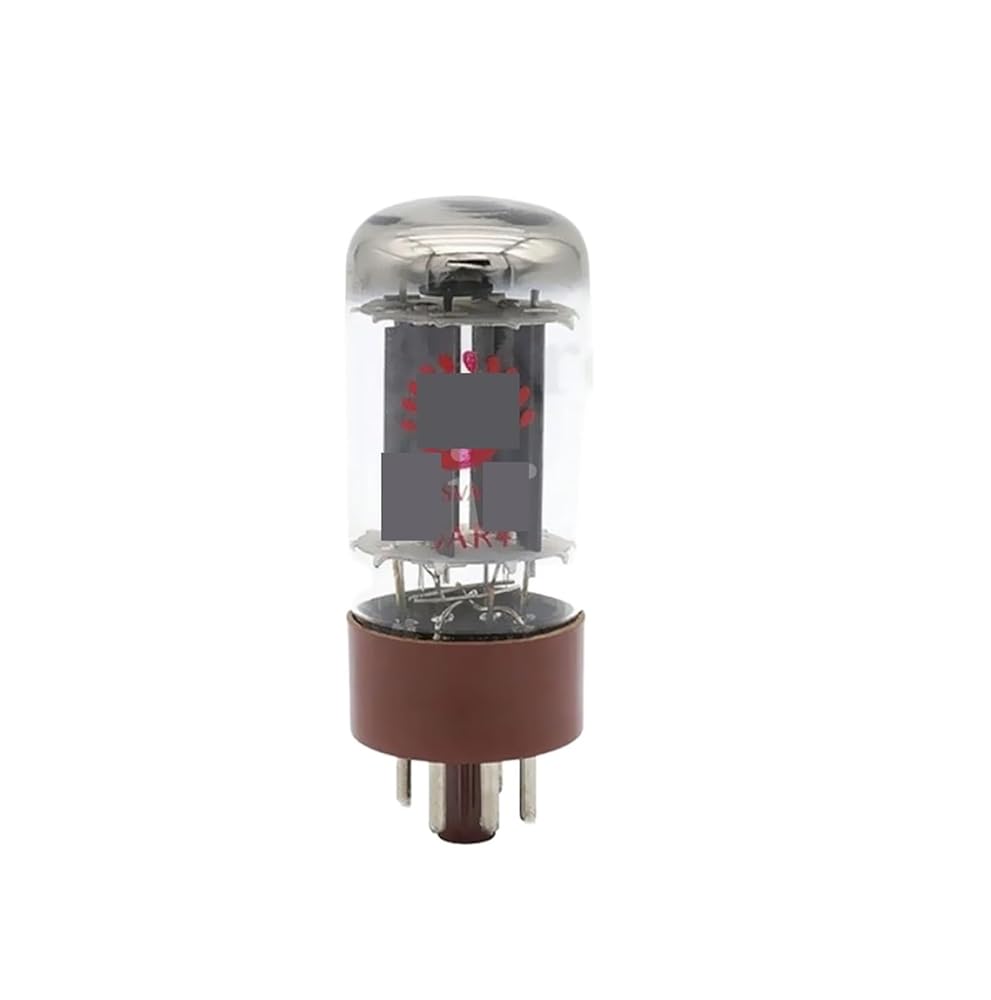

Model: 5AR4
Maximum power per channel: No power supply
