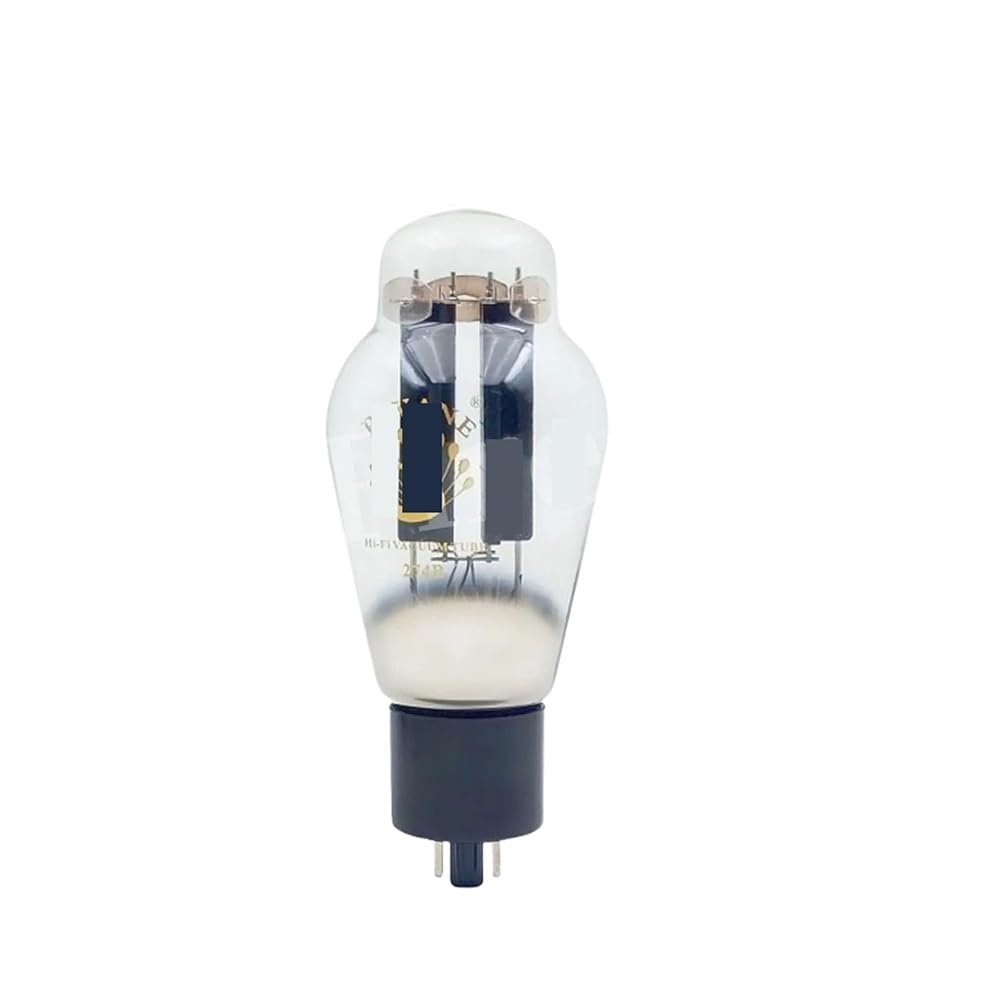

استبدال أنبوب 274B 5U4G WE274B 5Z3P 5R4 5AR4 GZ34 5Z4P (4 قطعة رباعية متطابقة) in Saudi Arabia

274B أنبوب استبدال 5U4G WE274B 5Z3P 5R4 5AR4 GZ34 5Z4P (1 قطعة)

SAR 1,330
ماركة
UUJHIKXD
وزن
158 g
مقاس1 قطعة
– 1 +

مميزات خاصة

  • Isolation

وصف

Isolation
The glass-enclosed eight-pin direct-heated full-wave rectifier is similar to 5U4G and 5Z3P and can be interchanged.
Filament Heating
Overshoot...5V
If...2.5A
Limit ratings
Peak anode reverse voltage......1550V
Peak anode current...750mA
Recommended working status
Anode power supply voltage 2×500V
Impedance per arm 75
Load impedance 2000
Filter capacitor 4F
Rectification current 230mA

Channels: 1
Model: 274B
Maximum power per channel: No power supply
