منصة إزاحة الشرائح ذات المحور XY ذات الأخدود عالي الدقة (LWY4090) in Saudi Arabia

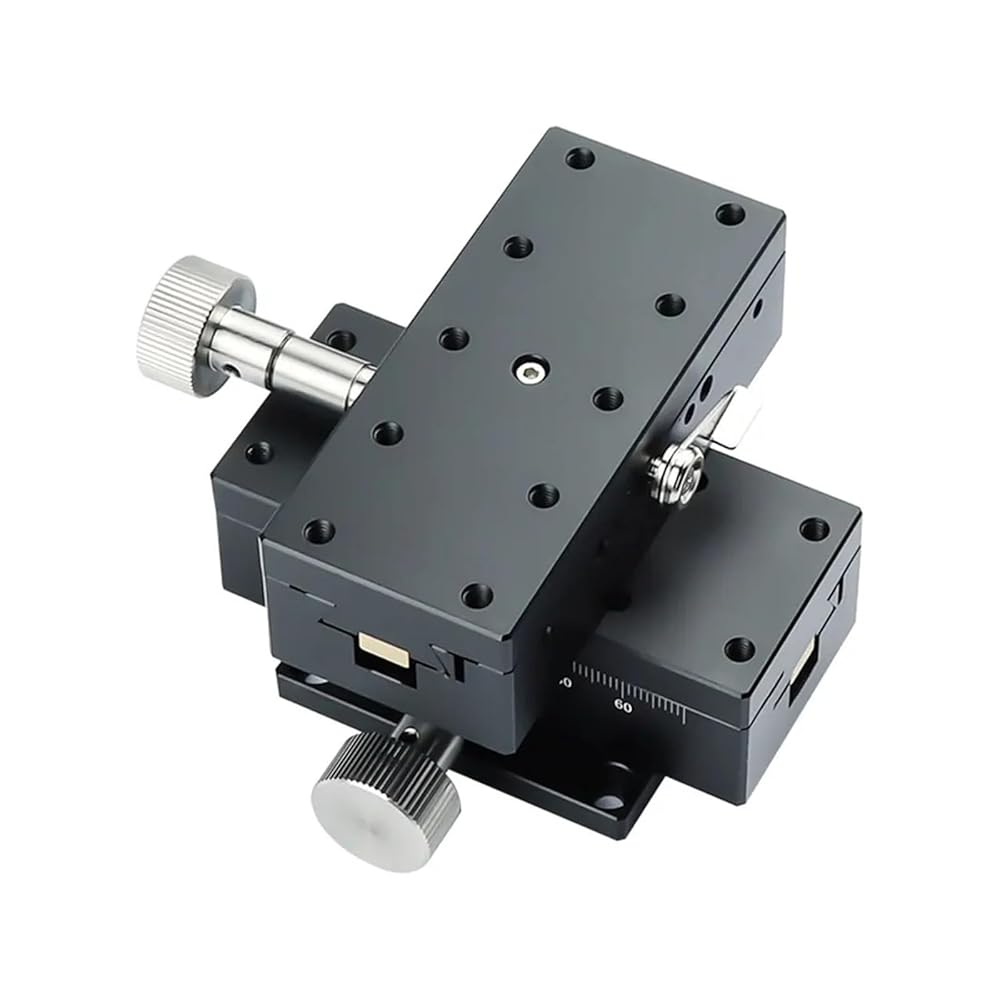

منصة إزاحة الشرائح ذات المحور XY ذات الأخدود عالي الدقة (LWY4090)

SAR 2,179
ماركة
IPDBLBYL
وزن
50 g
مقاسLWY4090
– 1 +

مميزات خاصة

  • Roller Tables
  • XY axis compatibility: Suitable for multi-directional motion in a variety of applications.
  • Gear Knob Adjustment Slider: Allows smooth, precise manual adjustment
  • High-precision slide table: ensures precise movement to complete detailed positioning tasks.
  • LWY4040/LWY4060/LWY4090 models: Provides multiple options for different linear guide requirements.
  • Dovetail design: Provides enhanced stability and alignment for reliable performance.

وصف

Roller Tables
Parameters: LWY4040
1. Workbench size: 40*40mm
2.Moving direction: XY axis
3. Driving method: Micrometer head
4. Stroke: ±10mm
5. Load: 29.2N (3kgf)
6. Workbench thickness: 62mm
7.Moving parallelism: 0.3mm/24mm
8. Minimum scale: 0.1mm
9. Parallel depth: 0.06
10. Weight: 0.39KG
Parameters: LWY4060
1. Workbench size: 40*60mm
2.Moving direction: XY axis
3. Driving method: Micrometer head
4. Stroke: ±15mm
5. Load: 49N (5kgf)
6.Moving parallelism: 0.06mm/30mm
7. Minimum scale: 0.01mm
8. Parallel depth: 0.08
9. Weight: 0.5KG
Parameters: LWY4090
1. Workbench size: 40*90mm
2.Moving direction: XY axis
3. Driving method: Micrometer head
4. Stroke: ±30mm
5. Load: 49N (5kgf)
6.Moving parallelism: 0.3mm/60mm
7. Minimum scale: 0.1mm
8. Weight: 0.814KG
