Filter Valves
product name:
(A)Integrated ball valve
Advantages: small size, light weight, one-piece molding, good sealing performance, gaskets can be used.
Disadvantages: Small pipe diameter, suitable for branch pipes and gas pipes.

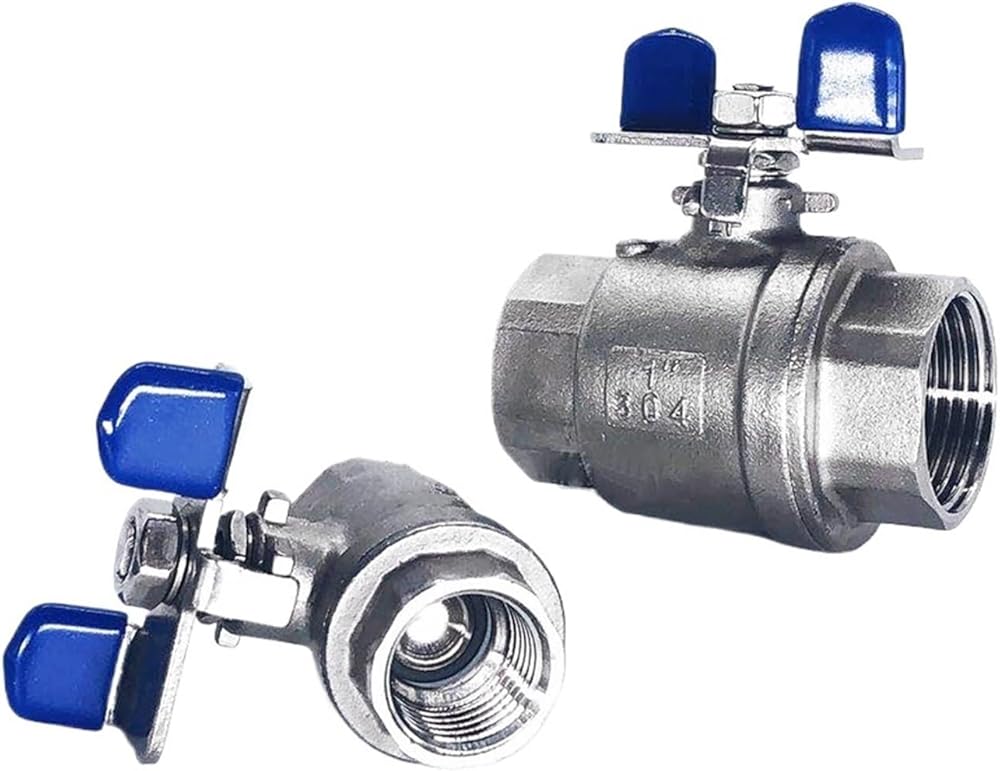

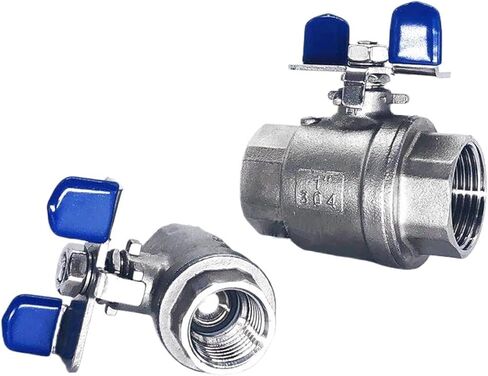

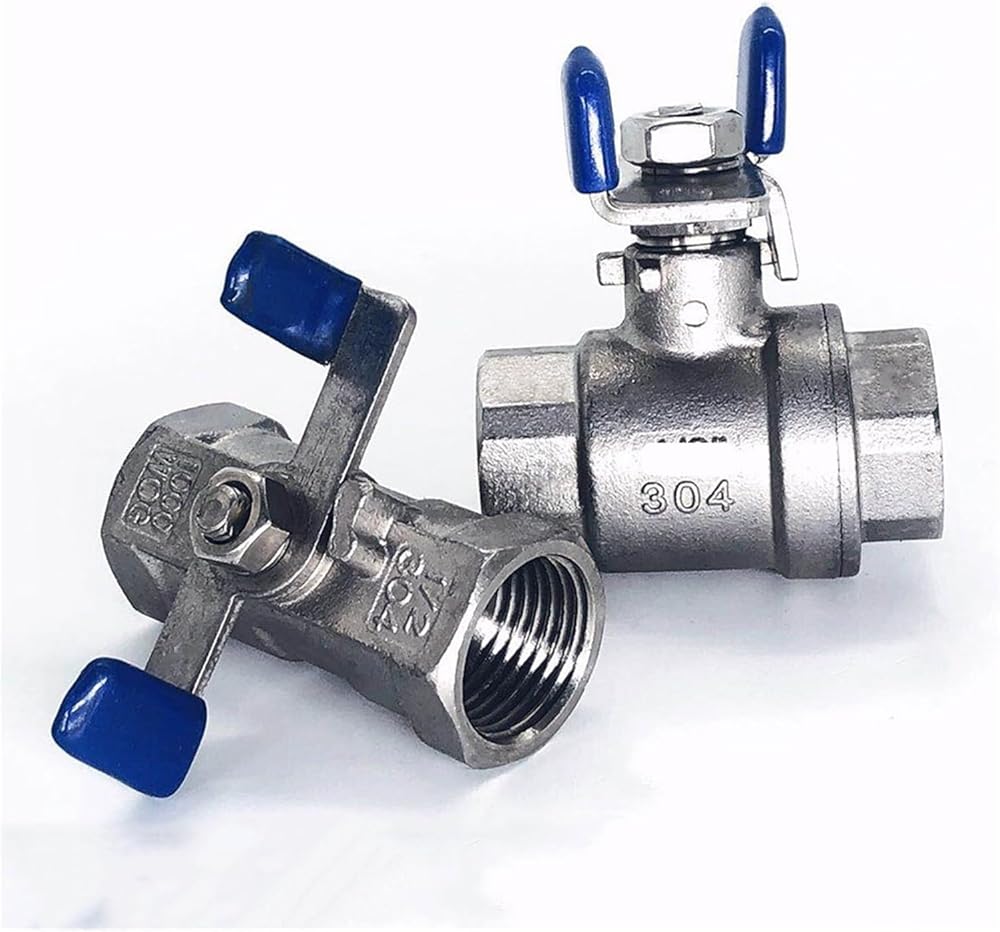

(B) Two-piece ball valve
Advantages: full bore, large flow, resistant, two-part assembly.
Disadvantages: The valve body is divided into two parts, making maintenance more complicated.
Main material: 304 stainless steel
Thread type: Internal thread x Internal thread
Thread standard: BSPT (standard pipe)
Thread size: 1/4", 3/8", 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", (optional)
Thread specifications
DN8=1/4"(female)11.5mm
DN10=3/8"(female)15.3mm
DN15=1/2"(female)19.5mm
DN20=3/4"(female)24mm
DN25=1"(female)30.5mm
Pressure resistance: 1.6Mpa
Used for: water, gas, steam, corrosion, acid and alkali
Packing: 1 ball valve
