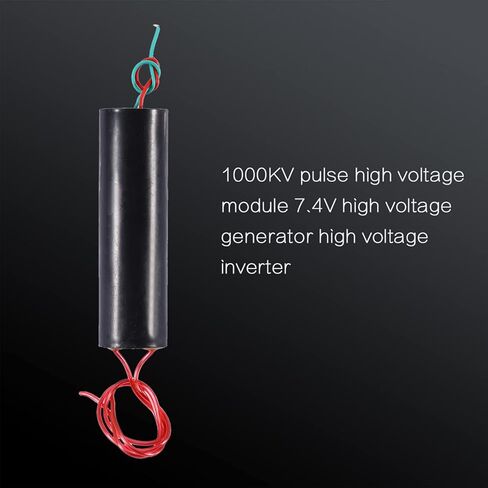

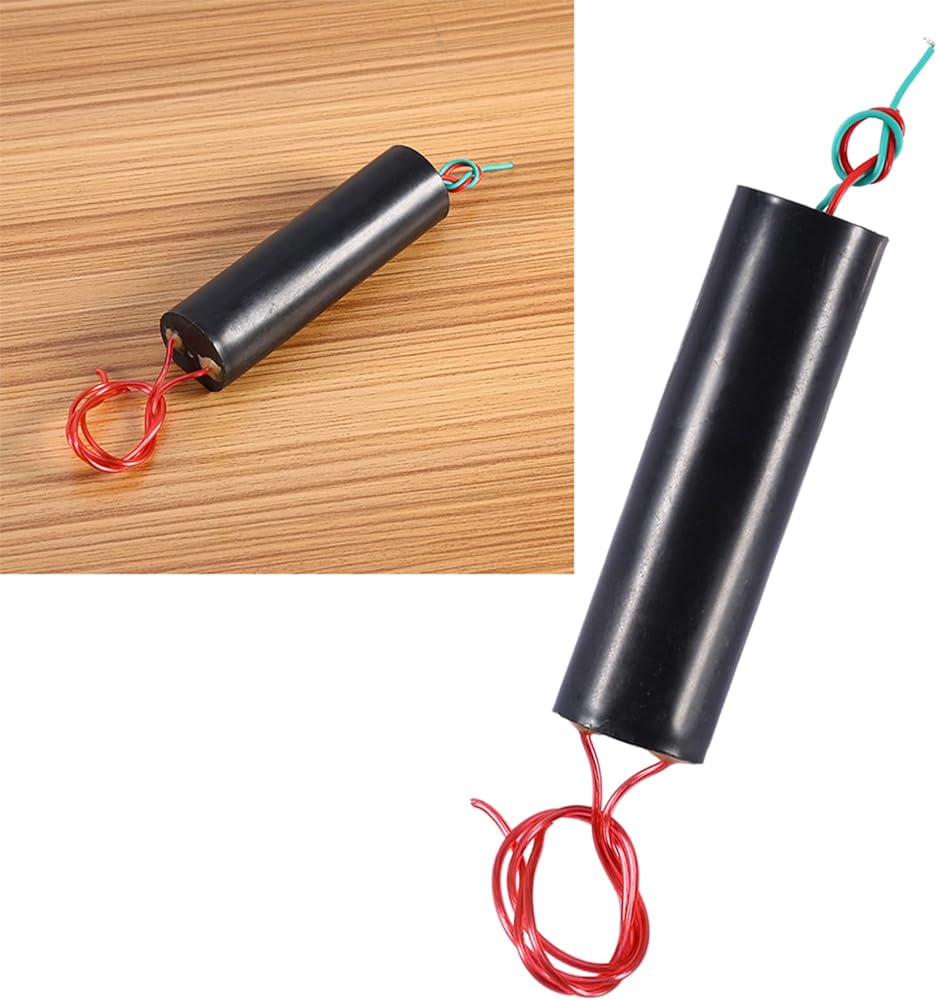

Specifications:
Module type: MC-901
Input voltage: 3.7V-7.4V
Input current: 0.5A-2.5A
Input wire length: 9cm
High voltage type: pulse DC type
Output voltage: 800KV-1000KV (please pay attention to safety when using)
Output current: 0.5A-1A
Output length: approximately 15 cm
High voltage bipolar discharge distance: 0.5 cm -1.5 cm
Size: 88.5 x 26mm(LxD)

Product usage method:

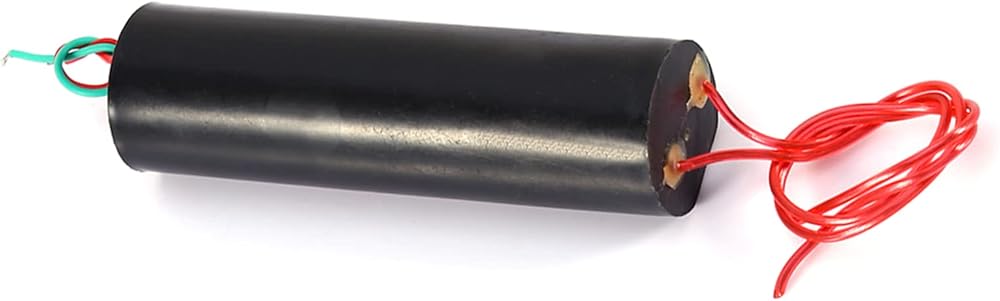

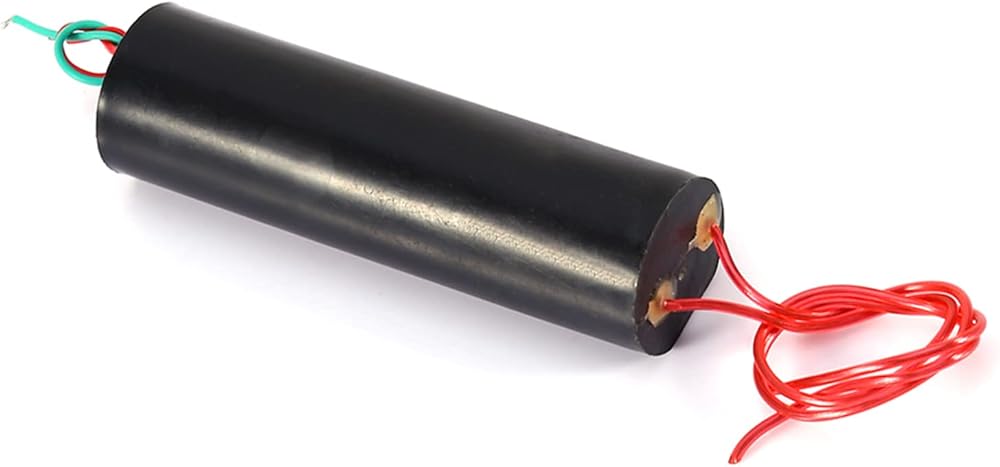

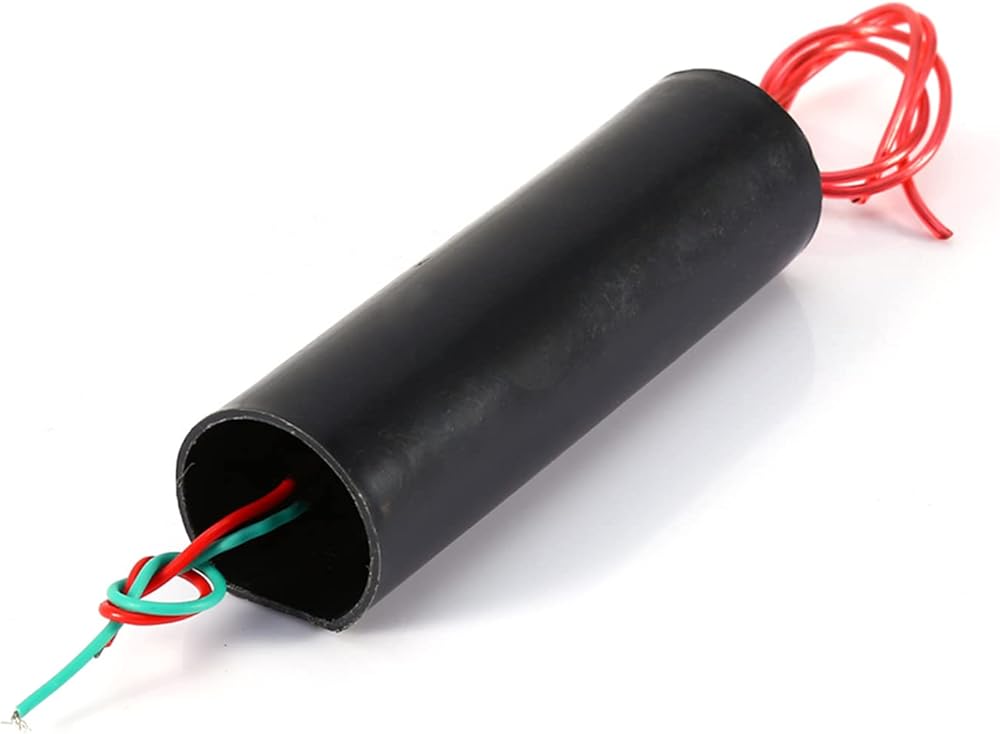

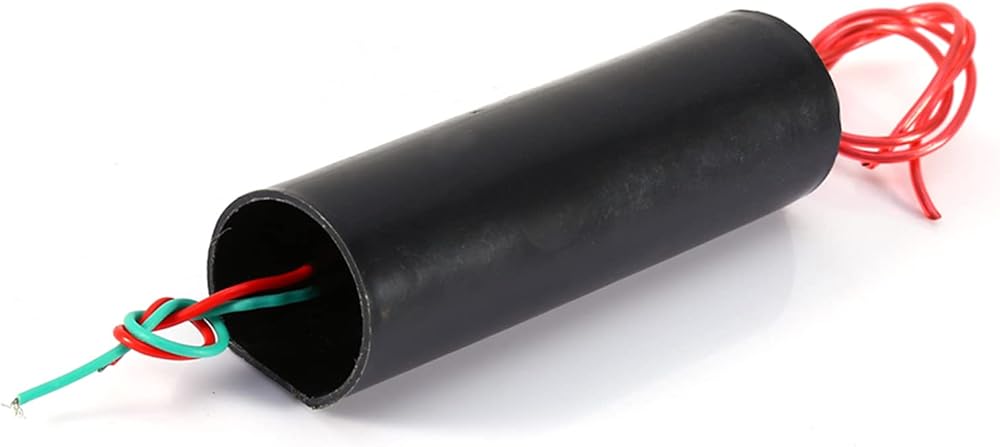

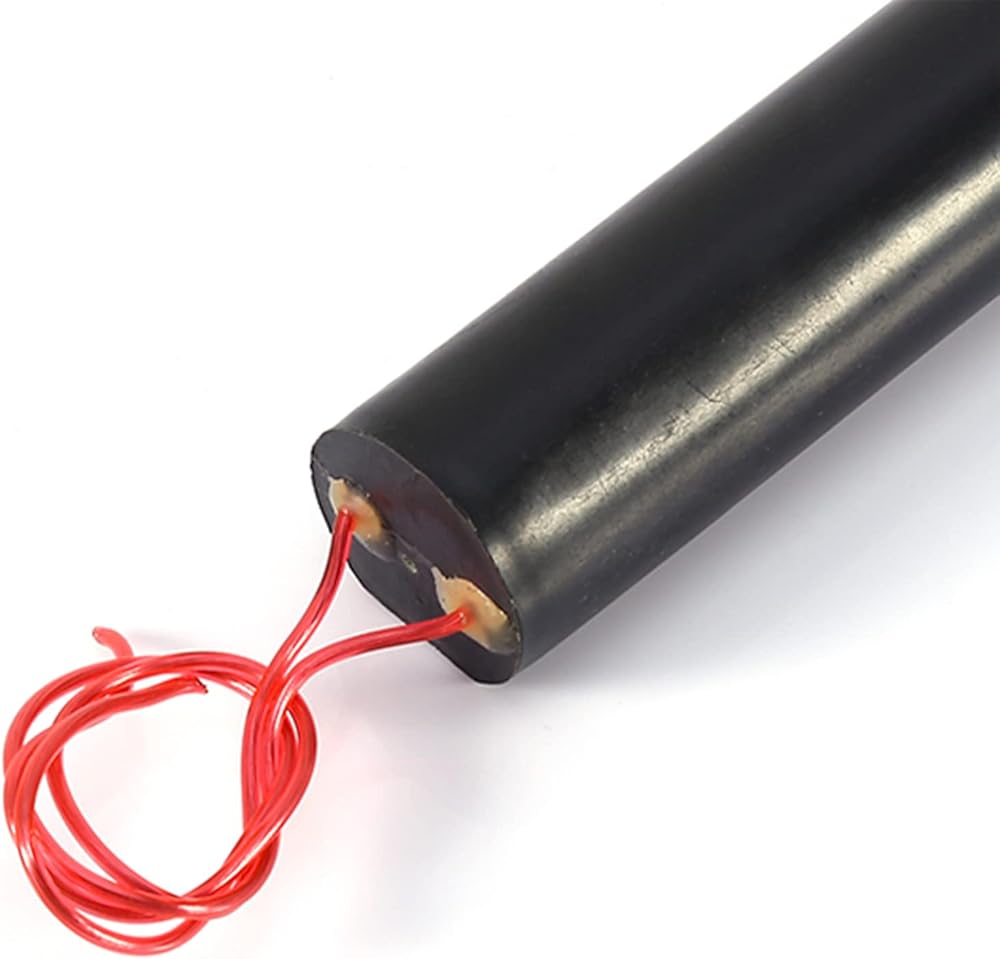

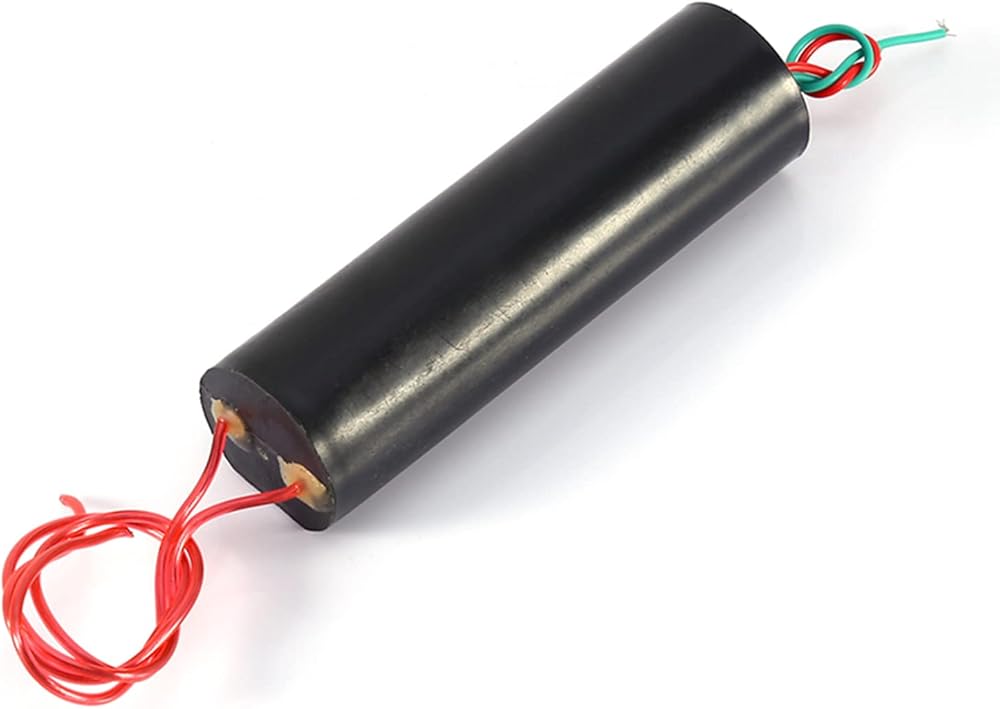

Module input terminal and the output terminal, red and green line is Input terminal, red"-" green"+",two thick line which has same color is the high voltage output, fixed output end of the proper arc distance and input end is connected with a battery can generate high-voltage electric arc.

Module use note:
1. high voltage module should avoid the use of high voltage no-load, power must be adjusted before the high voltage line end of the right distance, high voltage wire drawing distance and the use of battery voltage and capacity is proportional to.
2. The test arc distance from short to long experiment, when the power is prohibited beyond the longest arc distance, due to the high pressure energy can not be released, very easy to damage the module.
3. The power of the module, the internal heat is not heat, so not a long time to work.

Package include:
1pc x High voltage inverter
