【High-Precision Humidity and Temperature Sensor】 10-bit resolution; ±1.5% RH humidity accuracy; ±0.2°C temperature accuracy; Suitable for smart home and Settingal monitoring applications
【Wide Voltage Compatibility】 2.4V to 5.5V DC operation; low power consumption in sleep mode; suitable for battery-powered devices and portable systems
【Robust I²C Interface】 I²C communication up to 1 MHz; easy integration with microcontrollers; compatible with for Arduino and for Raspberry Pi platforms
【Dustproof and Waterproof Design】 IP67 protection with PTFE membrane; reliable performance in dusty and water spray Settings; suitable for industrial and outdoor use
【Low Power and Stable Operation】 4.8 µW sleep mode; stable output under varying temperatures; no calibration drift for long-term use

Key Product Parameters:

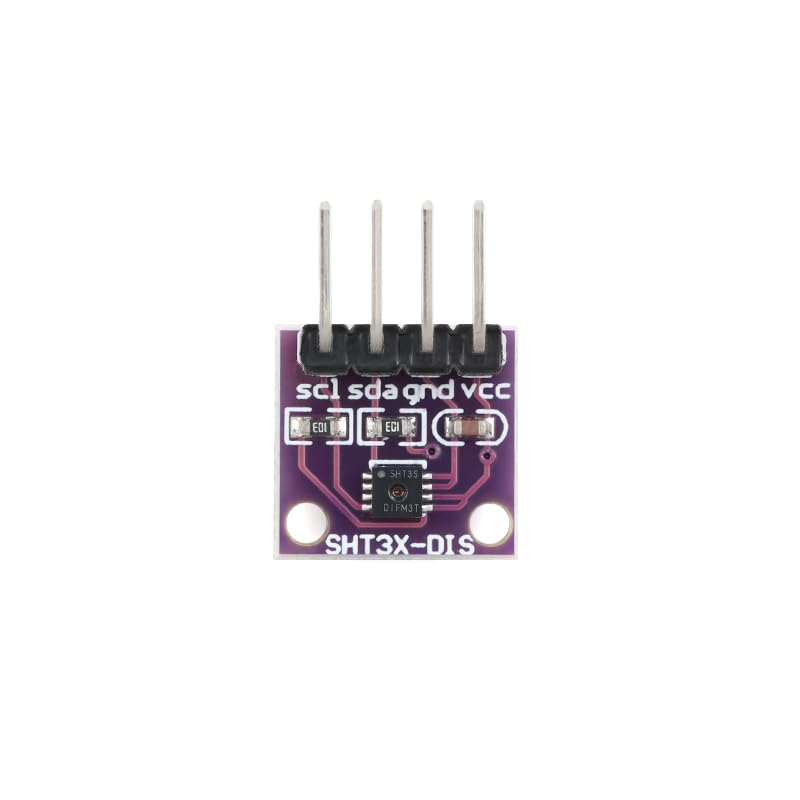

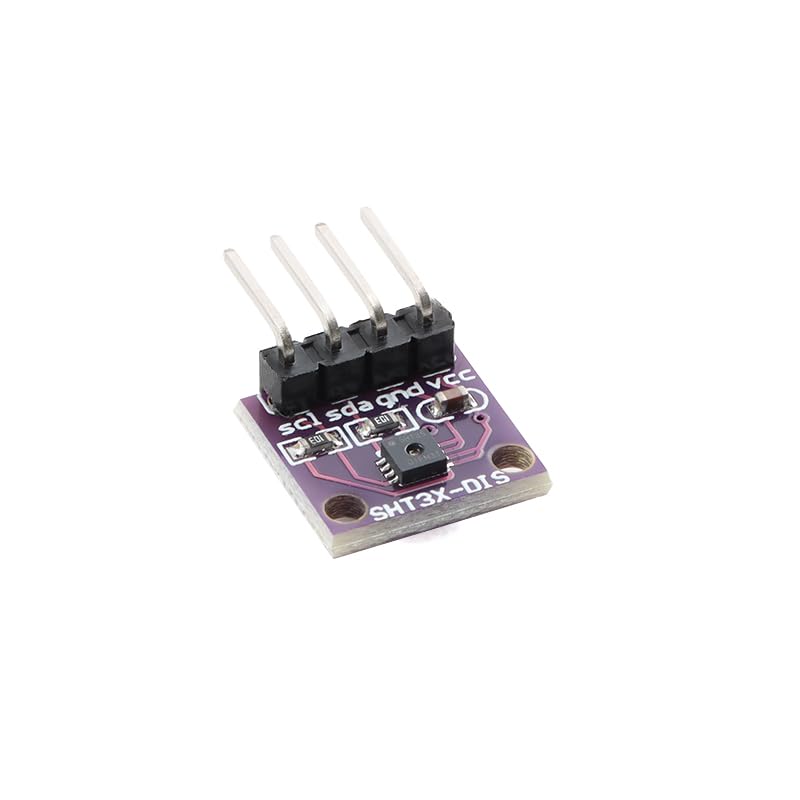

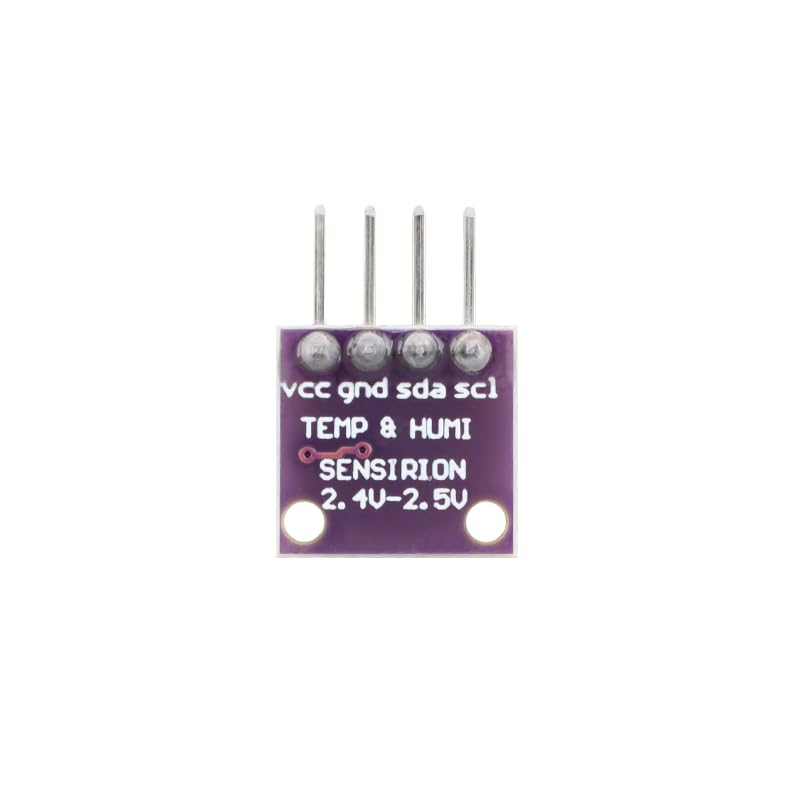

Model: SHT35-DIS (Digital Reliable)

Input Voltage: 2.4V-5.5V DC (Wide Voltage Compatible)

Humidity Range: 0-100% RH

Humidity Accuracy: ±1.5% RH (Typical)

Temperature Range: -40°C to +125°C

Temperature Accuracy: ±0.2°C (@25°C)

Communication: I²C Interface (Up to 1 MHz)

Package: DFN-8, 2.5mm × 2.5mm × 0.9mm

Protection: IP67 (PTFE Membrane Dust/Water Resistance)

Power Consumption: 4.8 µW (Low Repeatability Mode)

Pin Functions ( ):

VDD: Power Positive (2.4V-5.5V DC). External 0.1µF filter capacitor recommended.

GND: Power Ground. Connect to system common ground.

SDA: I²C Data Line (Open-Drain). Requires external 4.7kΩ pull-up resistor.

SCL: I²C Clock Line (Open-Drain). Requires external 4.7kΩ pull-up resistor.

ADDR: I²C Address Select (VDD = 0x45; GND = 0x44).

ALERT: Over-Limit Alarm Output (Open-Drain, Active Low).

nRESET: Hardware Reset (Active Low, Internal Pull-Up if Floating).

FAQ Highlights:

1.
No Data Output?

Verify voltage (2.4V-5.5V). Check SDA/SCL pull-up resistors (4.7kΩ). Confirm I²C address (ADDR pin level).

2.
Humidity Deviation >3% RH?

Avoid condensation. Keep away from PCB heat sources for accurate readings.

3.
I²C Communication Failures?

Shorten bus length (
4.
ALERT Pin Not Triggering?

Program threshold register (command 0x6100 via I²C). Add external 10kΩ pull-up to VDD.
