Feature:
The Optocoupler Isolation Board Feature PC817 chip for 5KHz high frequency signals conversion, offering DC3V-5V/12V/24V isolation protections and NPN shifting between circuits.
Design with positive phase amplification and 1channel isolation, this module maintains equal input/output signals while voltages interferences through photoelectric coupling technology.
Ideal for electronics engineers and industrial automation technicians requiring reliability signals isolation in systems, microcontroller interfaces, or motor control applications.
Perfectly integrates with microprocessor switching, power regulation equipment, and communication devices needing voltages isolation up to 24V in harsh electrical environment.
Each pack contains 2 ready to use module with construction, supporting DC3V-24V voltages ranges for flexible deployment in robotics, intelligent home systems, and industrial control panel.

Specification:
Component:
Size:Approx.40.3x14.9x17mm/1.58x0.58x0.7inch
Optional input voltages: to 5V/12V/24V
Output signals voltages: DC1.8V~24V
Operating Current: >1MA (most 50MA)
Most output current 50MA (input current must be 15-20MA)
Working temperature -55~110 degrees
Most application signals frequency: 5KHz
Applicable scenario:Industrial automation
Option Type: 3 v-5V,12V 24V;

Note:

Please allow 1-10mm errors due to manual measurement.
Due to the differences between different monitors, the picture may not reflect the actual item color.

Package includes:

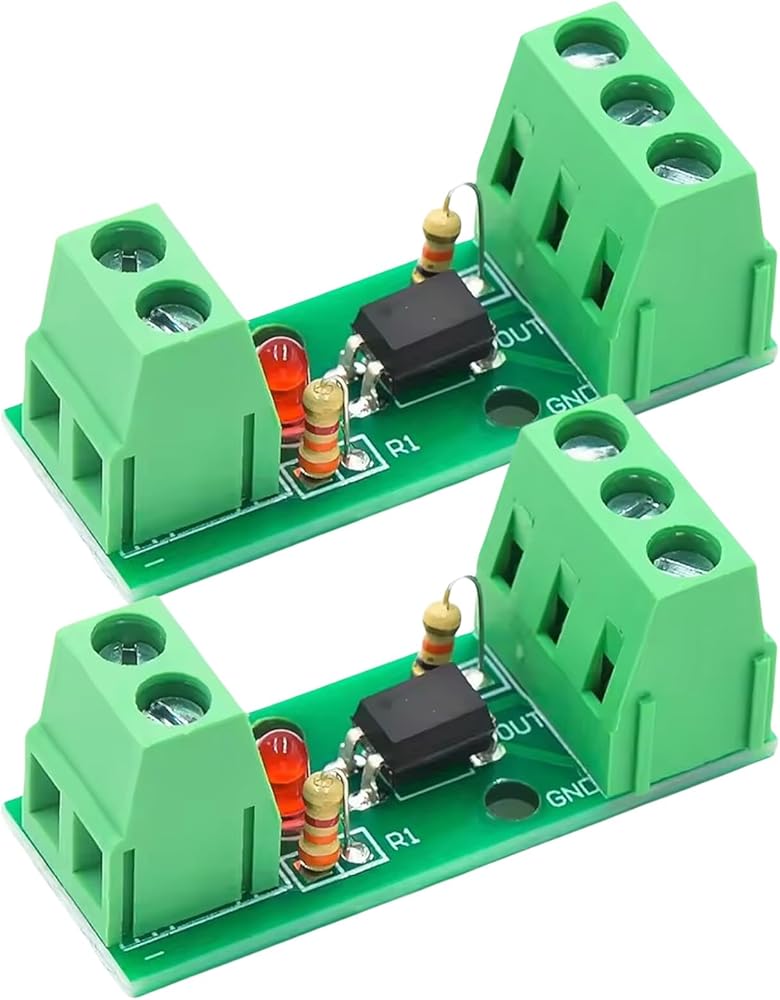

2pcs Optocoupler Isolation Module
