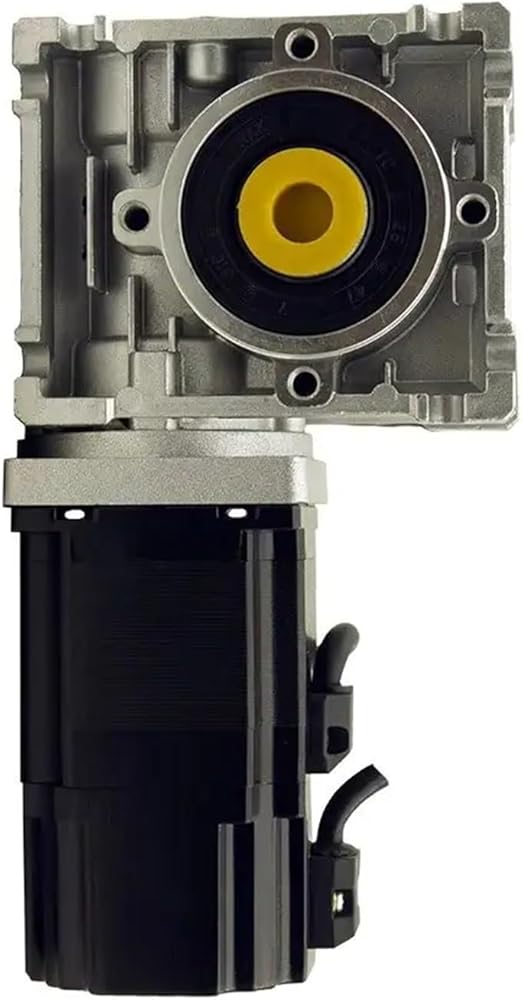

13Nm NEMA23 stepper motor with brake Worm reducer 801/60:1/50:1/40:1/30:1/25:1/20:1/15:1/10:1/7.5:1/5:1 gearbox
Model
Motor
Step
Angle (°)
Length
L(mm)
Motor
Holding
Tq (N.m)
Current (A/Phase)
Resistance ()
Inductance (mH)
Motor
Rotor
Inertia (g.cm2)
Brake
Tq
(N.m)
Weight (kg)
Gear
Ratio
Matched
driver
57HSWGB41A430
1.8
175
0.6
3.0
0.7
1.4
120
1.9
2.2
5:1
7.5:1
10:1
15:1
20:1
25:1
30:1
40:1
50:1
60:1
80:1
JB542C
57HSWGB51A430
185
1.0
3.0
0.74
1.2
275
2.4
57HSWGB56A430
190
1.3
3.0
0.75
2.4
300
2.45
57HSWGB76A440
210
2.3
4.0
0.5
2.0
480
2.75
57HSWGB85A440
219
2.6
4.0
0.8
3.2
520
2.95
57HSWGB115A440
249
3.5
4.0
0.5
2.3
600
3.45
