R/C Color Bearing Series
After more heavy day of bashing, racing, crawling, or whatever kind of driving you like,
It's important to update your bearings to prepare for your next session!
This is the RC racing bearing series,
More colorful colors,
More reasonable structure,
To give you a better update experience for RC cars,
If you have any questions, please contact us before purchase.
We also offer a full range of bearing update custom services for different RC car types,
Build RC Dream.
Model Number: MR117RS ABEC-3
Torque Capacity: 7*11*3mm
Surface Roughness: Ra 0.05
Structure: Ball
Material: 52100 Chrome Steel
Coatings: Chrome Steel/GCr15
Bearing Type: Ball
For Load Direction: Radial
Construction: Single Row
Seal Type: Sealed
Part Number: MR117 2RS
For Shaft Diameter: 7mm

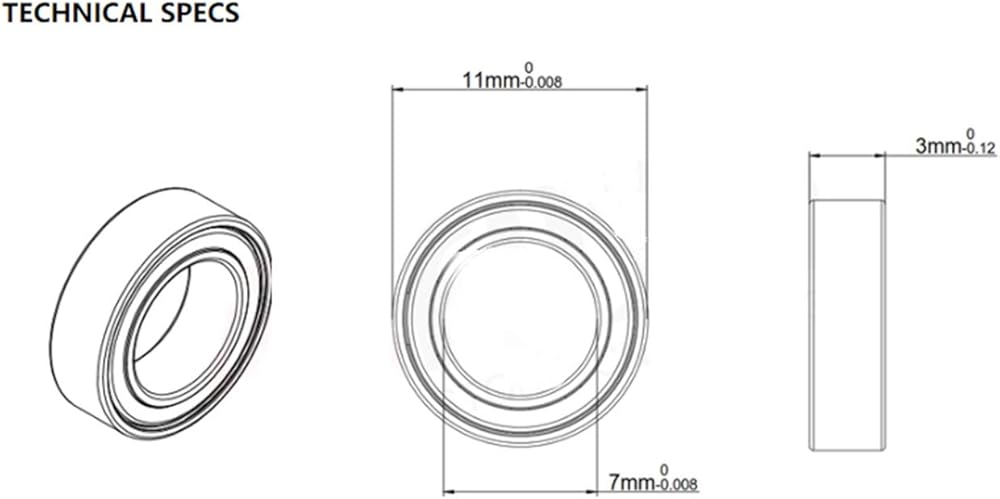

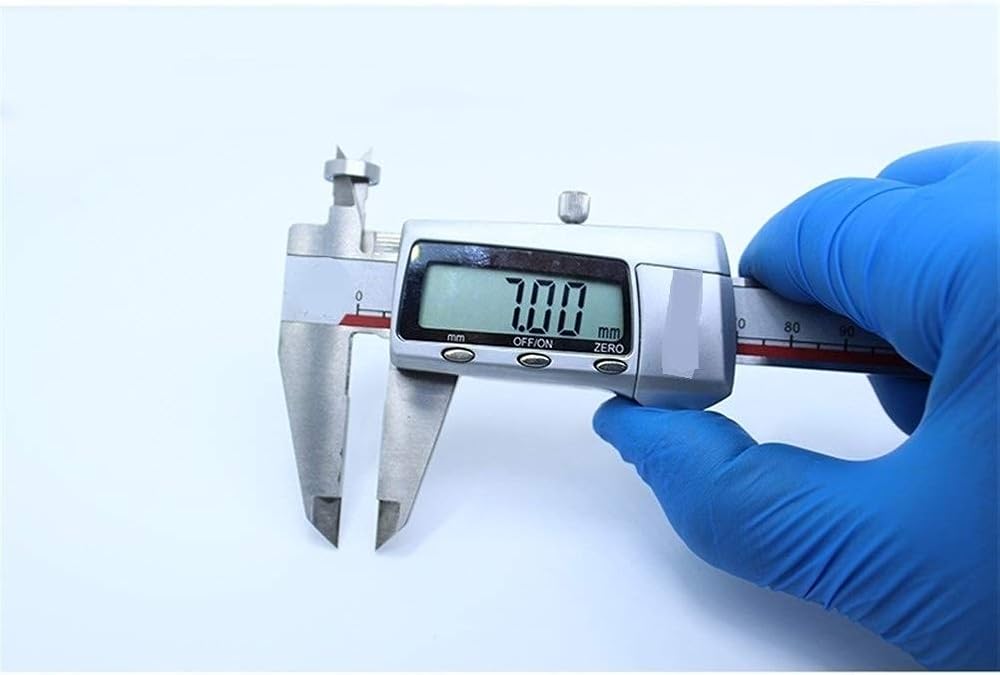

Bore Dia (d): 7mm
Bore Dia Tolerance: -0.008mm to 0
For Housing ID: 11mm

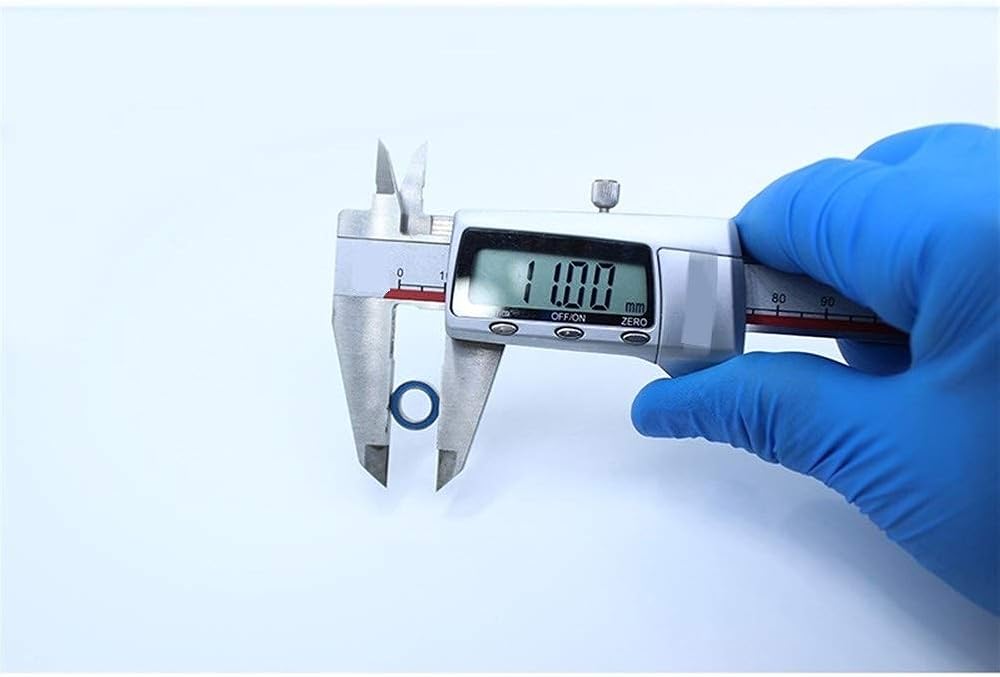

Outer Dia (D): 11mm
Outer Dia Tolerance: -0.008mm to 0

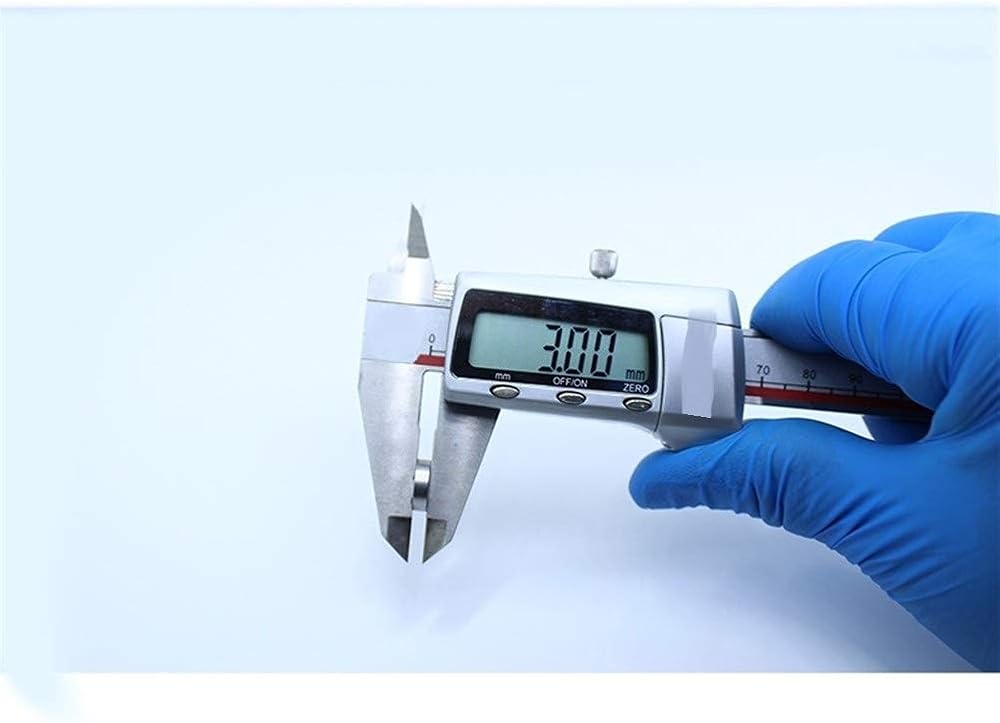

Width (B): 3mm
Width Tolerance: -0.12mm to 0
Ring Material: 52100 Chrome steel
Ball Material: 52100 Chrome steel
Cage Material: 300 Series Stainless Steel
Shield Material: 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons): 357
Static Load Rating (Cor) (Newtons): 142
Max Speed (Grease) (X1000 RPM): 21
Max Speed (Oil) (X1000 RPM): 25
Lubrication: grease
Shaft Mount Type: Press Fit
Temperature Range: -20 to 120
ABEC Rating: ABEC-1
Radial Clearance Trade No.: C0
Radial Clearance: 0.002mm to 0.013mm
Ball Qty: 9
Ball Dia: 1.2000mm

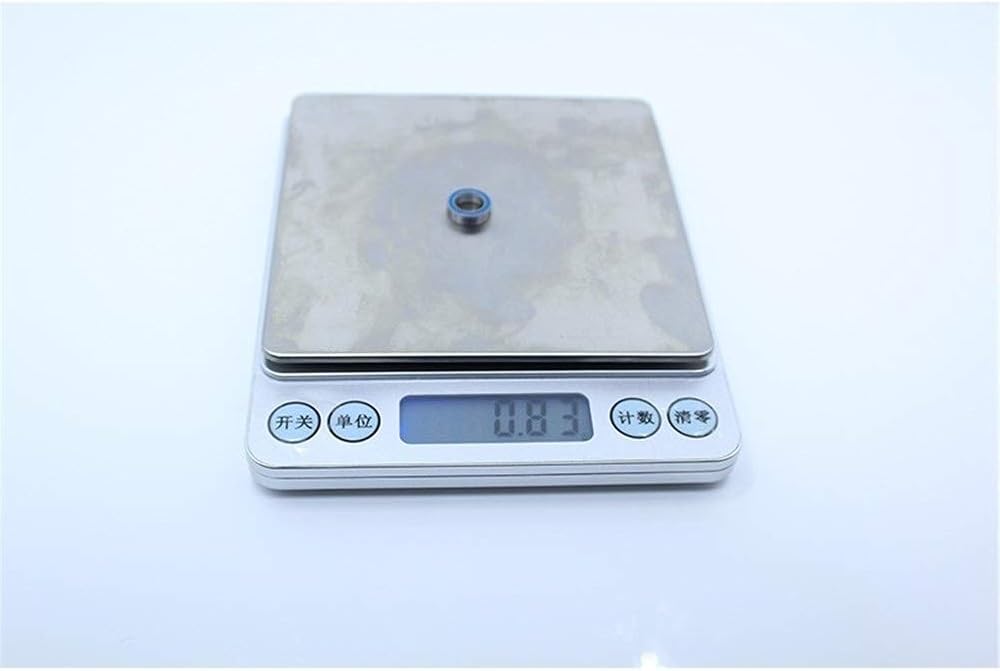

Weight (grams): 0.83
BEARINGS FEATURE
RC Ball bearings should always be your first upgrades, it reduces friction for less rolling resistance, and that means higher speed and longer the running times. RC Ball bearings hardly require maintenance and last a lot longer than stock bushings.
Yeah Racing RC Ball Bearings have the lo
