Description
Usage: Home Appliance
No load Speed: 20000RPM
Type: Motor
Model Number: 895
Output Power: 60-80W
Commutation: Brushless
Voltage: 12-24V
Features:
This a high-speed model: 12V 10000 turn maximum 4 kg, 24V 20000 turn, maximum about 8 kg.
Widely used in : cutting machine, abrasive belt machine, lathe, milling machine, bench drill, electric hand drill, polishing machine, Buddha bead machine, lawn mower, wire saw, band saw, electric mill, engraving machine, scooter, etc.
The generation of 895 motors help you solve all the deficiencies of the 775.
Rated voltage: DC12V -24V. (voltage can be used from 12 to 24V, the higher the voltage, the higher the speed)
Support positive inversion (using positive and negative switch or positive negative pole reverse connection).
It can also be used as a generator. The faster the speed is, the higher the voltage and current will be.
895 the motor shaft diameter is the same as that of the 775 motor, 5MM.
Motor step height: 4.5mm
Motor step diameter: 18mm
Motor diameter: 48mm plus magnetic ring 50mm
Shaft diameter: 5mm (exactly the same as 775 motor)
Length of motor tail shaft: About 6mm
Distance between mounting holes: about 29mm
Screw diameter of mounting hole: M4 screw and M5 screw
Note:
Starting current should be more than 10A. It is recommended to use switching power supply or battery like power.
It is recommended to use 360W24V15A switching power supply, and can not directly use household 220V.
Because the shooting environment, lighting and angle are different, the color of the picture will be somewhat different. Please understand !
Product Weight: 500 G / 17.64 Ounces
Product Dimensions (L*W*H): 110*50*50 MM / 4.33*1.97*1.97 Inches
Package Weight: 500.0 G / 17.64 Ounces
Package Dimensions (L*W*H): 110*50*50 MM / 4.33*1.97*1.97 Inches
Retail Packaging: Yes, Box
Package include
Package Including:

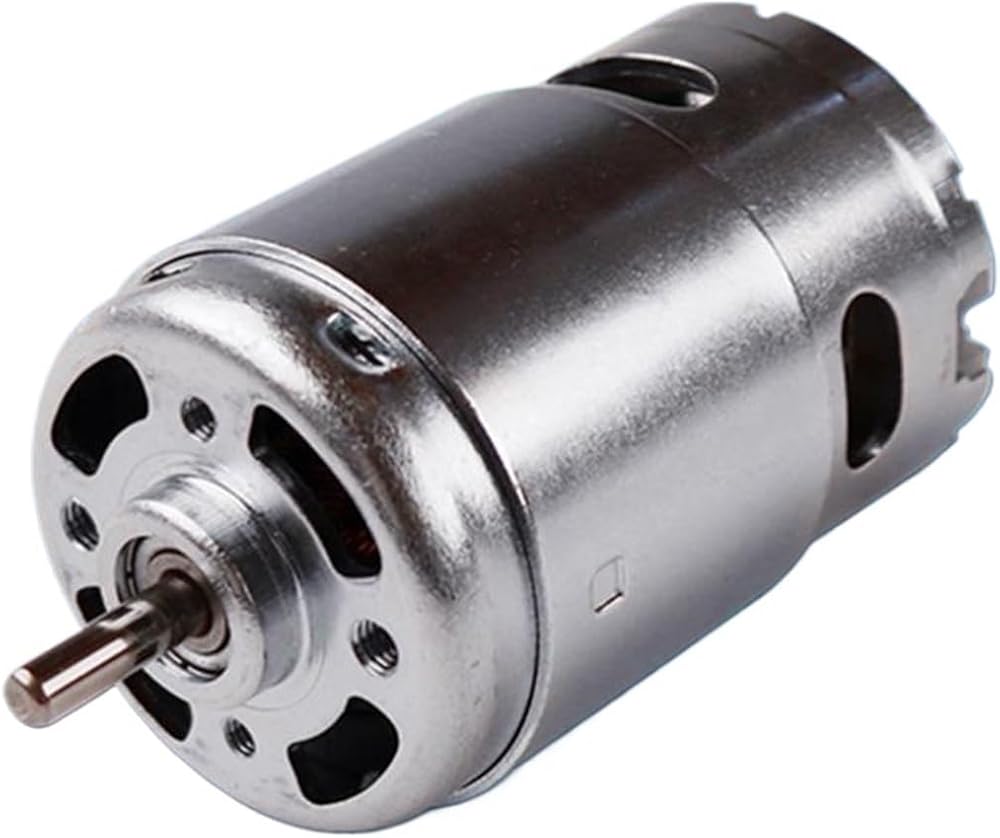

1 x 895 DC Motor
