Reducers
Description
No load Speed: 10000-20000RPM
Output Power: 60-80W
Type: Motor
Voltage: 12-24V
Commutation: Brushless
Model Number: 895
Features:
Adjustable speed, support forward and reverse rotation, power generation/power output two purposes.
Pure copper coil, strong continuous output, the is more than twice that of the 775 motor.
Front and rear double ball bearings, with heat dissipation impeller, stable speed.
Suitable for cutting machine, abrasive belt machine, bench drill, electric hand drill, lawn mower, polishing machine and other places.

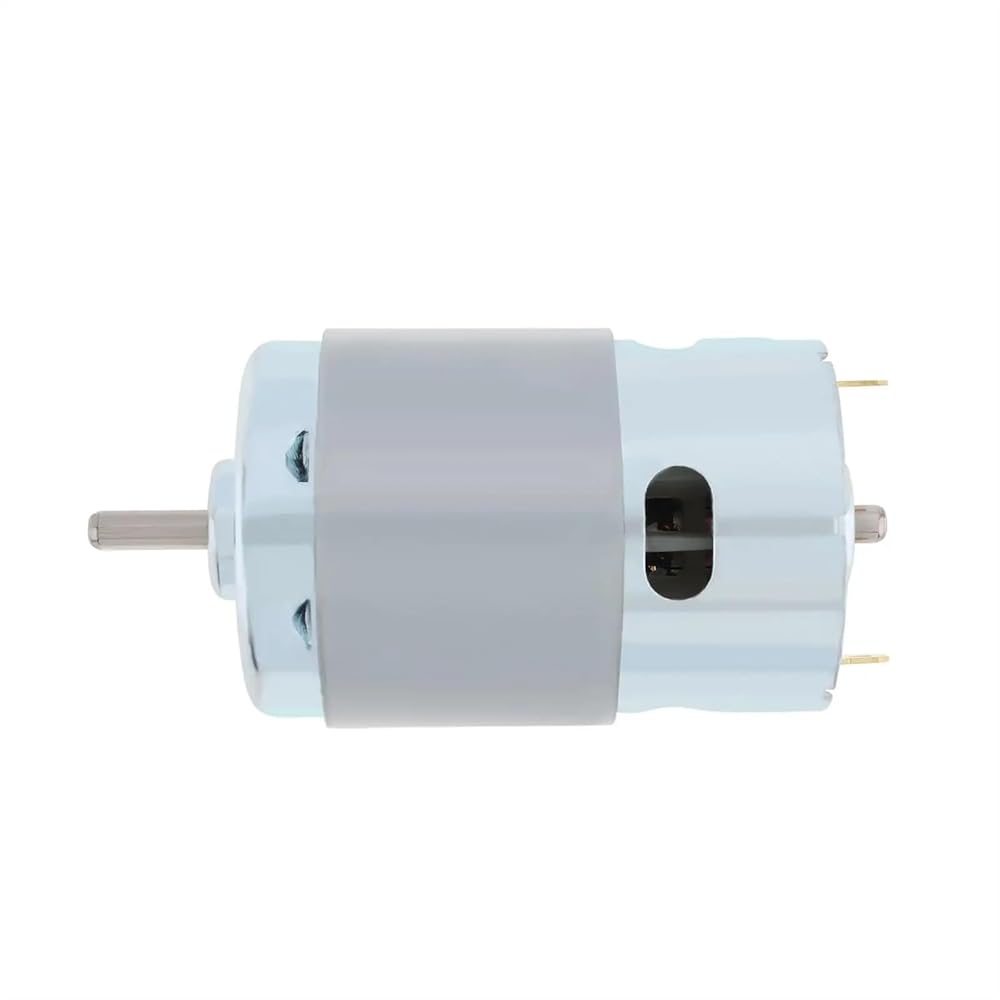

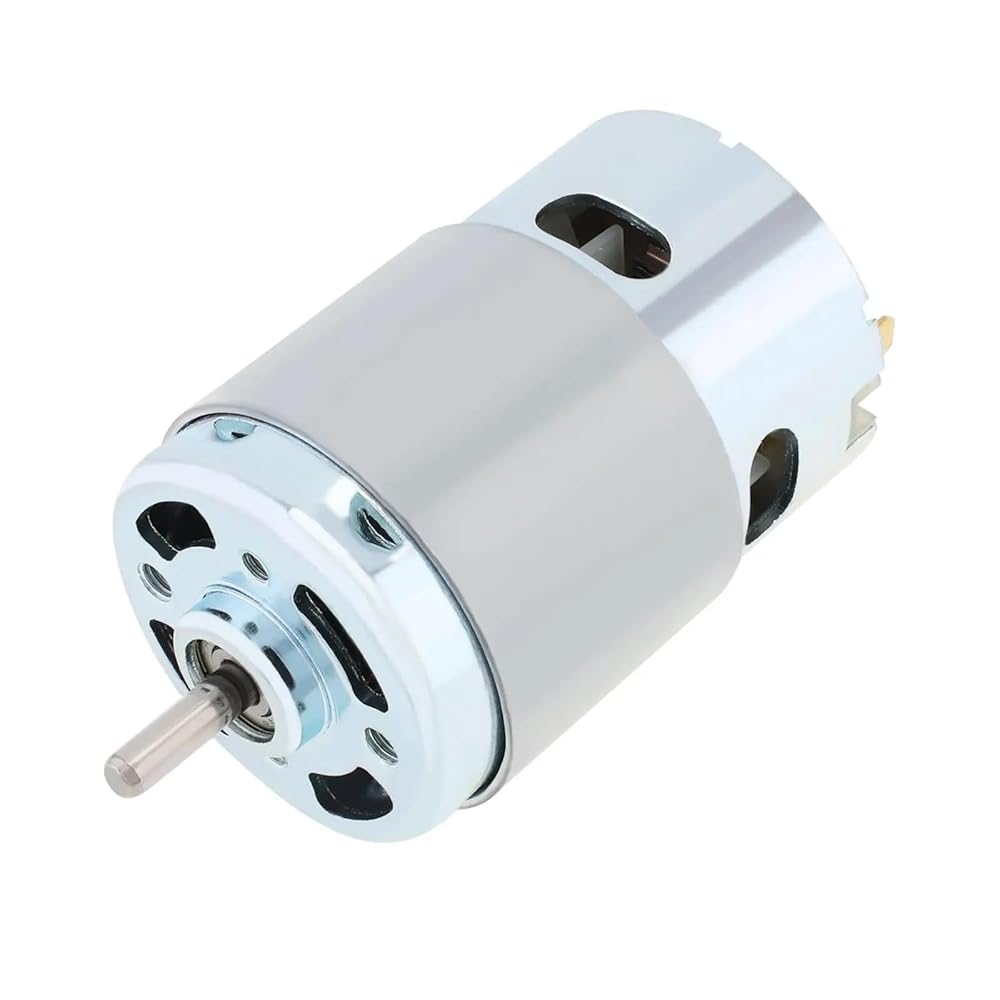

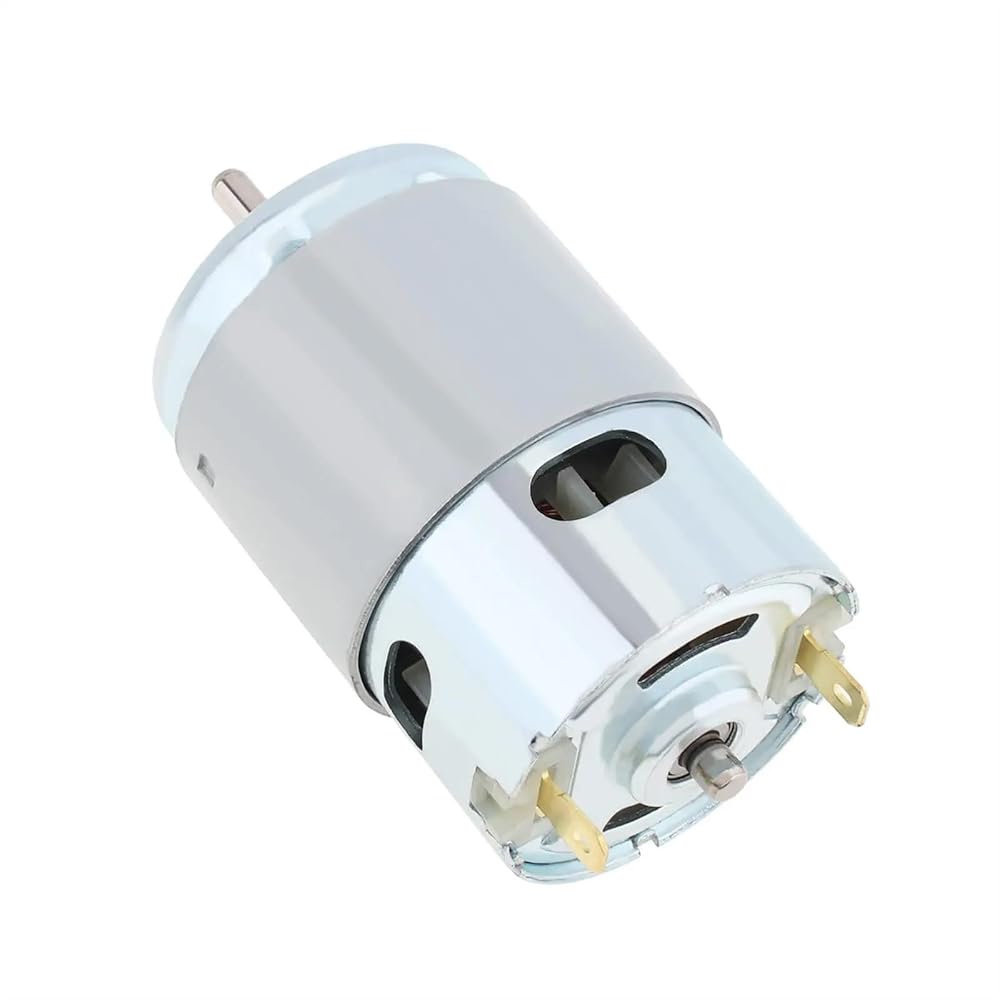

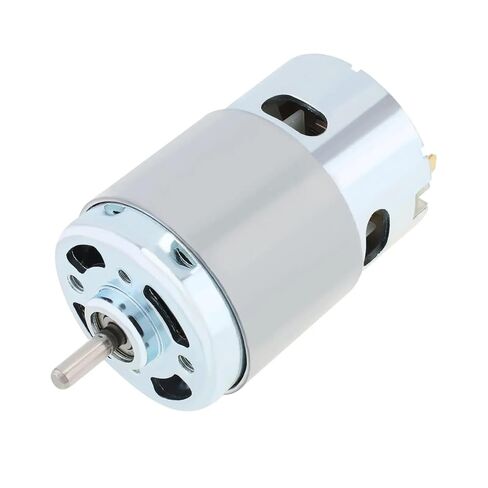

895 DC motor, high speed, high power, sufficient power, low noise, and .

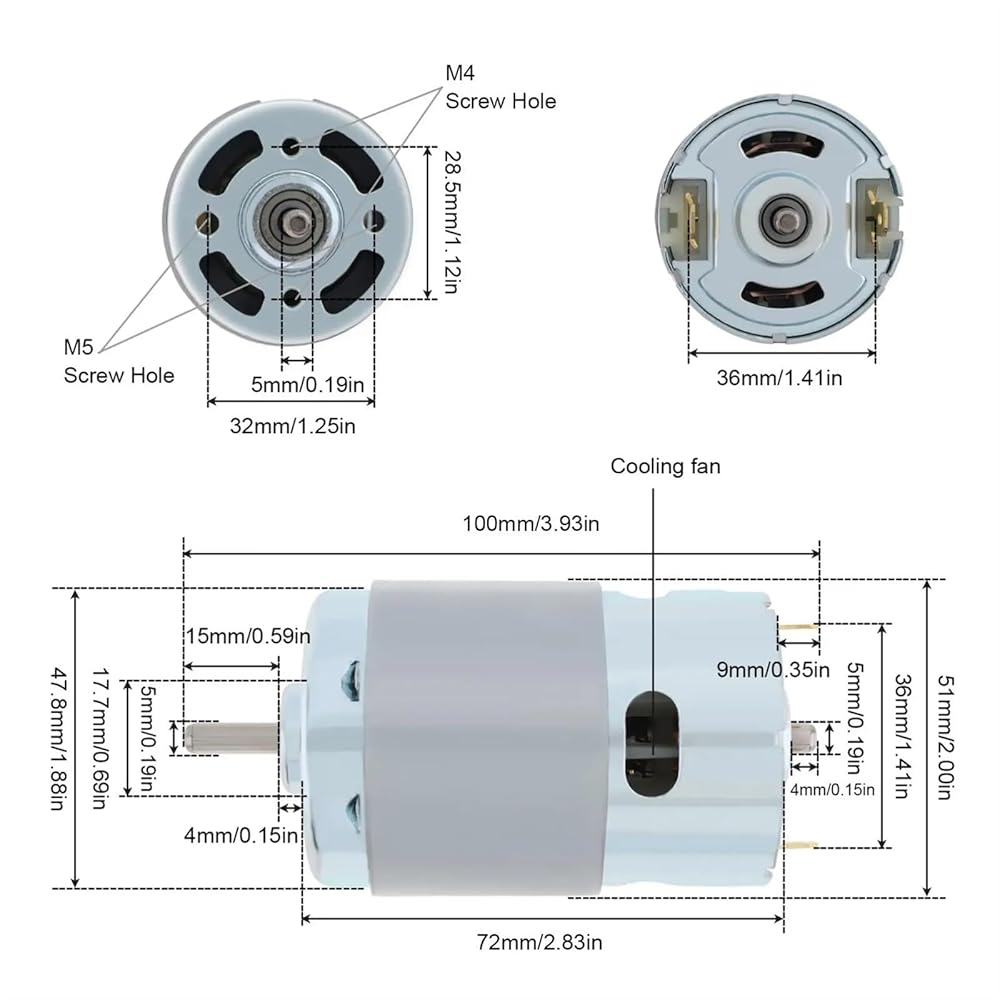

Motor step height: 4.5mm
Motor step diameter: 18mm
Motor diameter: 48mm plus magnetic ring 50mm
Shaft diameter: 5mm (exactly the same as 775 motor)
Length of motor tail shaft: About 6mm
Distance between mounting holes: about 29mm
Screw diameter of mounting hole: M4 screw and M5 screw
Note:
Starting current should be more than 10A. It is recommended to use switching power supply or battery like power.
It is recommended to use 360W24V15A switching power supply, and can not directly use household 220V.
Because the shooting environment, lighting and angle are different, the color of the picture will be somewhat different. Please understand !
Product Weight: 500 G / 17.64 Ounces
Product Dimensions (L*W*H): 110*50*50 MM / 4.33*1.97*1.97 Inches
Package Weight: 501.0 G / 17.67 Ounces
Package Dimensions (L*W*H): 113*53*53 MM / 4.45*2.09*2.09 Inches
Retail Packaging: Yes, Box
Package include
Package Including:
1 x 895 DC Motor
