Description
Output Power: 60-400W
No load Speed: 3000-18000RPM
Type: Motor
Commutation:

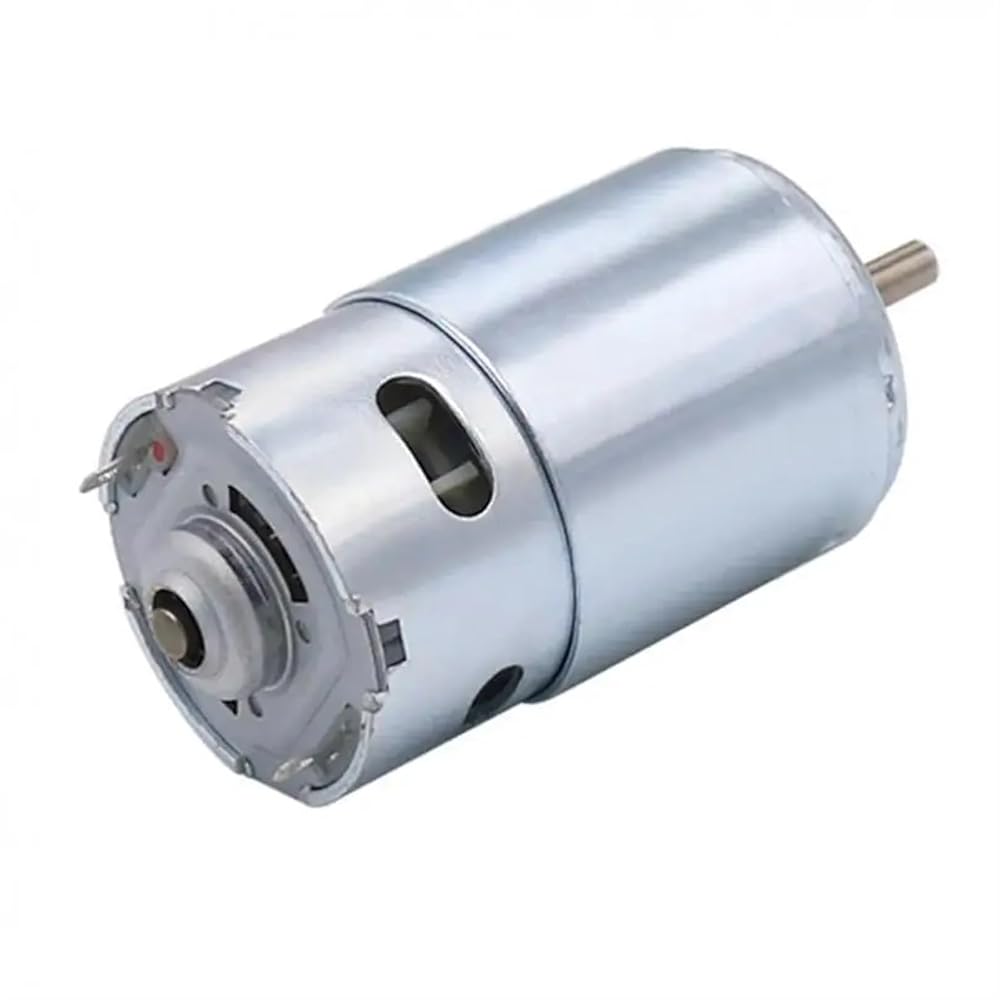

Model Number: 997
Voltage: DC 12-36V
Features:
DC12-36V universal, front and rear ball bearings, pure copper rotor, shaft diameter 5mm.
It can also be used as a generator. The faster the speed is, the higher the voltage and current will be.
Rated voltage: DC12V -36V. (voltage can be used from 12 to 36V, the higher the voltage, the higher the speed)
Used for DIY: Saw, Drill, Lathe, Abrasive belt machine, Grinder, Cutting machine, Milling machine, Aircraft model, etc.
Large , high precision less shaking, high speed, efficient mute and efficient heat dissipation.
Rated Voltage: DC12-36V(Recommended power supply 480W 24V 20A)
No Load Current: 0.51-1.06A (Starting current 10-20A)
Motor Speed:
Type A: 3000RPM(12V); 6000RPM(24V); 9000RPM(36V)
Type B: 6000RPM(12V); 12000RPM(24V); 18000RPM(36V)
Type C: 4500RPM(12V); 6000RPM(24V); 13500RPM(36V)
: Max.26kg/cm
Note:
The current below 10A may not start the motor or have no ; the current above 20A may reduce the service life of the motor or burn out.
Attention should be paid to the temperature of the motor when it is first started. The temperature is too high to indicate that it is not suitable for use.
Product Weight: 700 G / 24.69 Ounces
Product Dimensions (L*W*H): 120*54*54 MM / 4.72*2.13*2.13 Inches
Package Weight: 752.0 G / 26.53 Ounces
Package Dimensions (L*W*H): 130*60*60 MM / 5.12*2.36*2.36 Inches
Retail Packaging: Yes, Box
Package include
Package Including:
1 x 997 DC Motor
