Needle-Bearing
Working temperature: -20℃～+80℃
Dielectric strength: 100MΩ@600VDC
Working humidity: 10%～85%RH
Protection level: IP51
Shell material: engineering plastic
Wire length: 200mm
Contact material: precious metal/gold-gold
Product number
SRM05U-12A
Contact material
Precious Metals/Gold -
Number of channels
Route 12
Shell material
Engineering plastics
Rated voltage
Compatible below 0～240VAD/DC
Torque
0.04Nm
Insulation resistance
≥1000MΩ/500VDC
Protection level
IP51

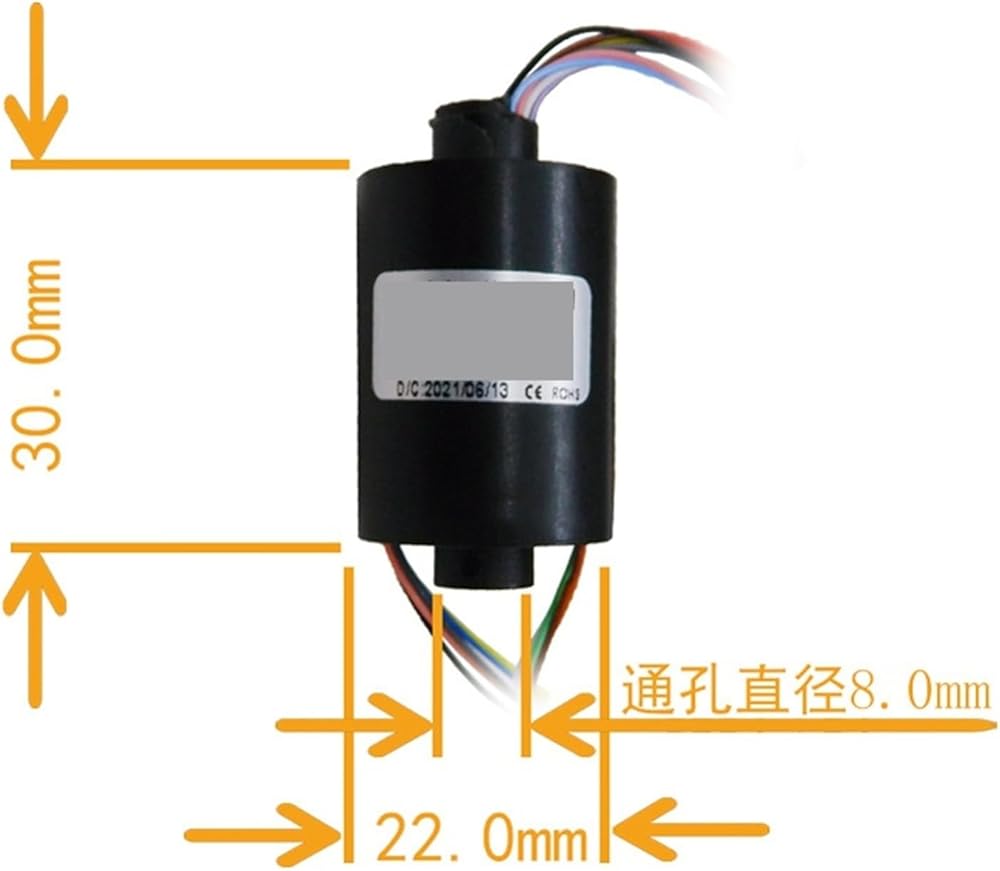

Product outer diameter
∅22mm
Working humidity
10%～90%RH
Wire specifications
AWG30 silver plated
Wire length
Standard 250mm
Working speed
0～250rpm
Current size
1A/each channel
working temperature
-10℃～+80℃
dynamic resistance
