Special Features

【500W HIGH SPEED HOMOGENIZER】: The high-speed homogenizing emulsifier is equipped with a high-power DC carbon brush motor ensuring stable operation high rotating speed and strong performance. Its no-load speed ranges from 2000 to 28000 rpm and stepless speed regulation can be realized via the speed knob.
【MATERIALS】: The mixing head is made of stainless steel The position of the mixing head can be adjusted as required. The main unit adopts an aluminum metal shell which guarantees long-term mechanical precision stable electrical performance and reliable working conditions. Two mixing head options are available: snap-on (12G-36G) and screw-type (28F-50F) to meet diverse application needs.
【PRECISE DIGITAL DISPLAY CONTROL】: The high shear emulsifier dispenser is equipped with a digital speed display screen which can show real-time data including working time torque actual rotating speed and rated rotating speed. This enables precise control of the homogenization process. It supports both continuous working mode and timed working mode (with a time setting range of 0-6000 minutes).
【POWER COMPENSATION TECHNOLOGY】: When the viscosity of the processed material changes the load and rotating speed of the equipment will also be affected accordingly. The built-in control system can automatically compensate power to restore the equipment to the set rotating speed ensuring stable processing effect.
【WIDELY APPLICATION】: The laboratory homogenizer emulsifier disperser is capable of decomposing macromolecules into small molecules. It is widely used in research and development work in industries such as cosmetics coatings pulp daily chemicals emulsified asphalt and water treatment.

Description

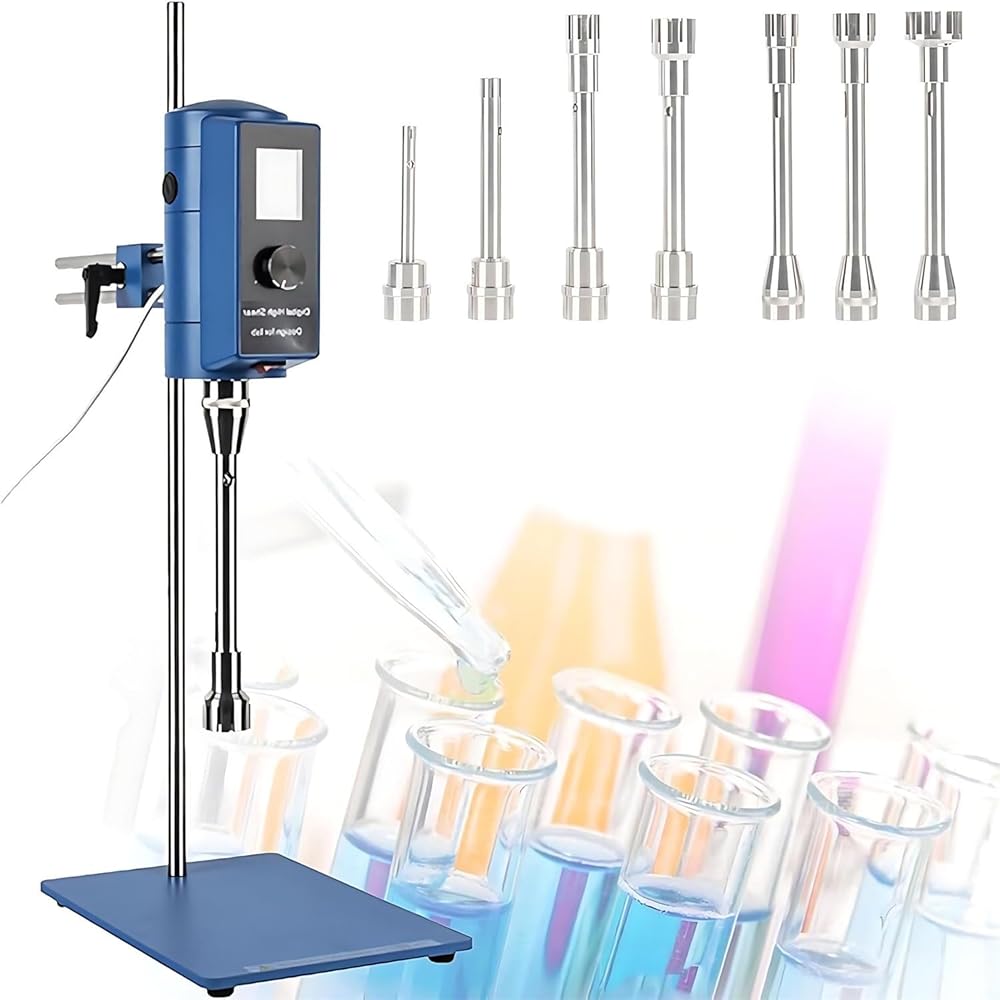

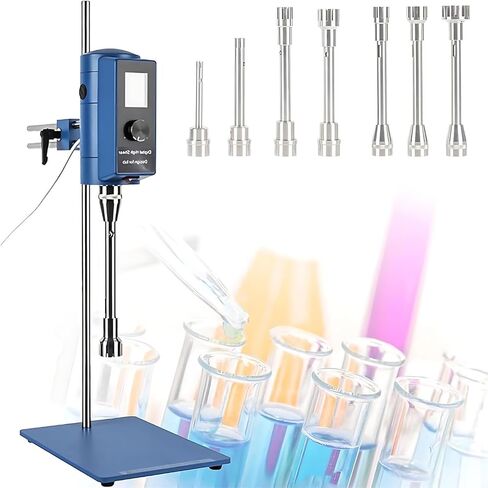

High Speed Homogenizer Lab Disperser Emulsifier stainless steel working head is corrosion-resistant and easy to disassemble. A variety of working heads are available to meet the needs of different laboratories:

Snap-on type: 12G/18G/28G/36G
Spiral type: 28F/36F/50F

--- Note:
Snap-on type:
--- 12G:
Processing range: 5- 800mL (H20)
Applicable viscosity: 500cP
Maximum immersion height: 50mm
--- 18G:
Processing volume range: 50-2000mL (H20)
Applicable viscosity: 2500cP
Maximum immersion height: 60mm
--- 28G:
Processing volume range: 80-3000mL (H20)
Applicable viscosity: 5000cP
Maximum immersion height: 90mm
--- 36G:
Processing volume range: 100-7000mL (H20)
Applicable viscosity: 6000cP
Maximum immersion height: 90mm
Spiral type:
--- 28F:
Processing volume range: 80-3000mL (H20)
Applicable viscosity: 3000cP
Maximum immersion height: 90mm
--- 36F:
Processing volume range: 100-7000mL (H20)
Applicable viscosity: 3000cP
Maximum immersion height: 90mm
--- 50F:
Processing volume range: 150-10000mL (H20)
Applicable viscosity: 9000cP
Maximum immersion height: 100mm

--- Specifications:
Product name: Laboratory High Speed Dispersing Homogenizer/High Speed Digital Display Emulsifier
Output power: 500W
Speed \u200b\u200brange: 2000-28000RPM
Speed \u200b\u200bdisplay: LCD display
Speed \u200b\u200bcontrol: stepless speed change
Timing control: 6000 minutes
Torque display Indication: Yes
Material in contact with materials: SS304
Material of shaft sleeve: PTFE
Type of standard working head: shear teeth
Maximum working temperature: 120℃
Number of standard working heads: 1
Allowable ambient temperature: 5-40℃
Allowable relative humidity: 80%
Related accessories: working bracket base

--- Packing size:
