30ml/min Peristaltic Pump 6V DC Motor Low Flow Gear Pump
with Silicone Tube 1mm Wall thickness Small Size

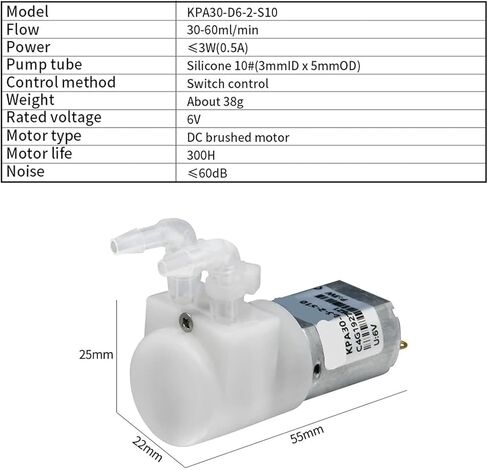

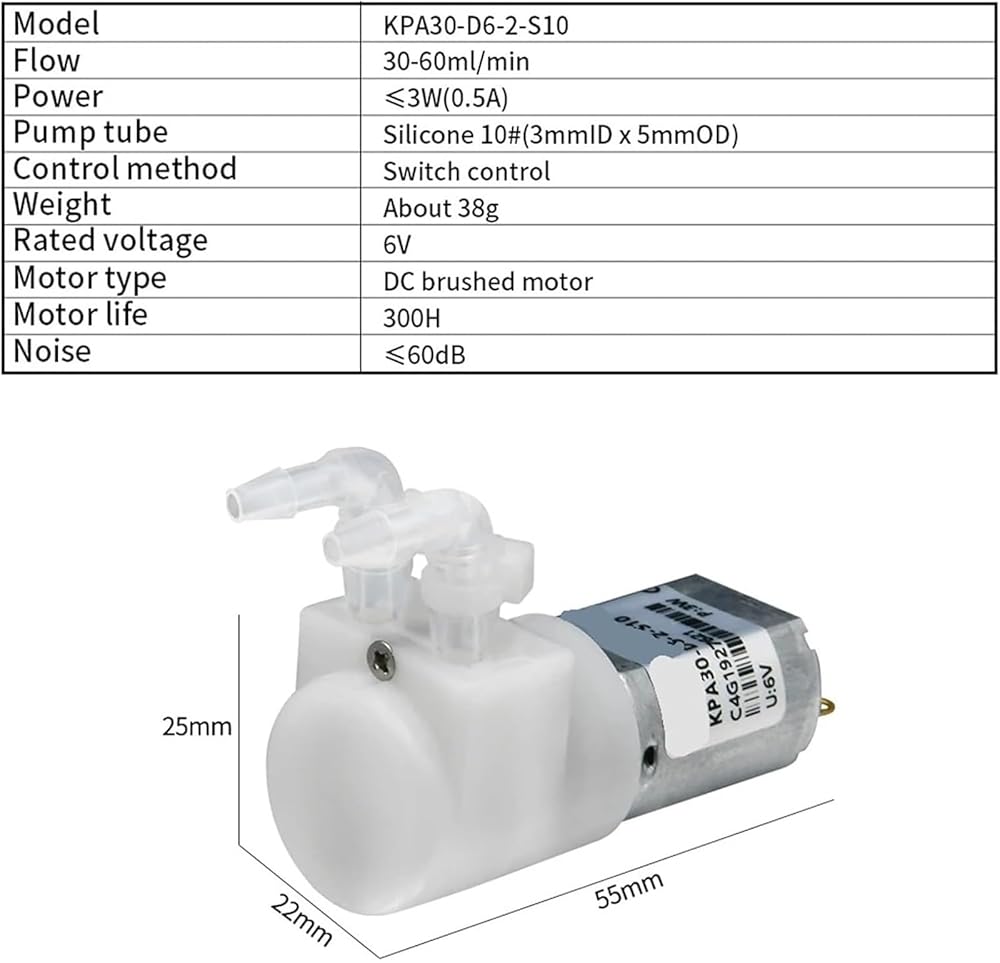

Basic parameters
Basic Parameters
KPA30 Peristaltic Pump with DC motor
Motor
DC Brush Motor
Flow ml/min
30ml /min
Noise
60dB(In a silent room with an ambient noise of 35dB the product is 50cm away from the noise tester)
Power
3W
Control method
Switch control
Weight
About 38g
Rated voltage
6V
Pump tube life
Silicone-200H
Motor life
300H
Reference flow rate (in ml/min)
Tube size
S10
ID x OD
3mmx5mm(Wall thickness 1mm)
Pump tube material
Silicone tube(200H lifetime)
6V/Current:0.5A
30ml/min
Motor lifetime 200H-Silicone
Low adsorption good temperature resistance good chemical corrosion resistance

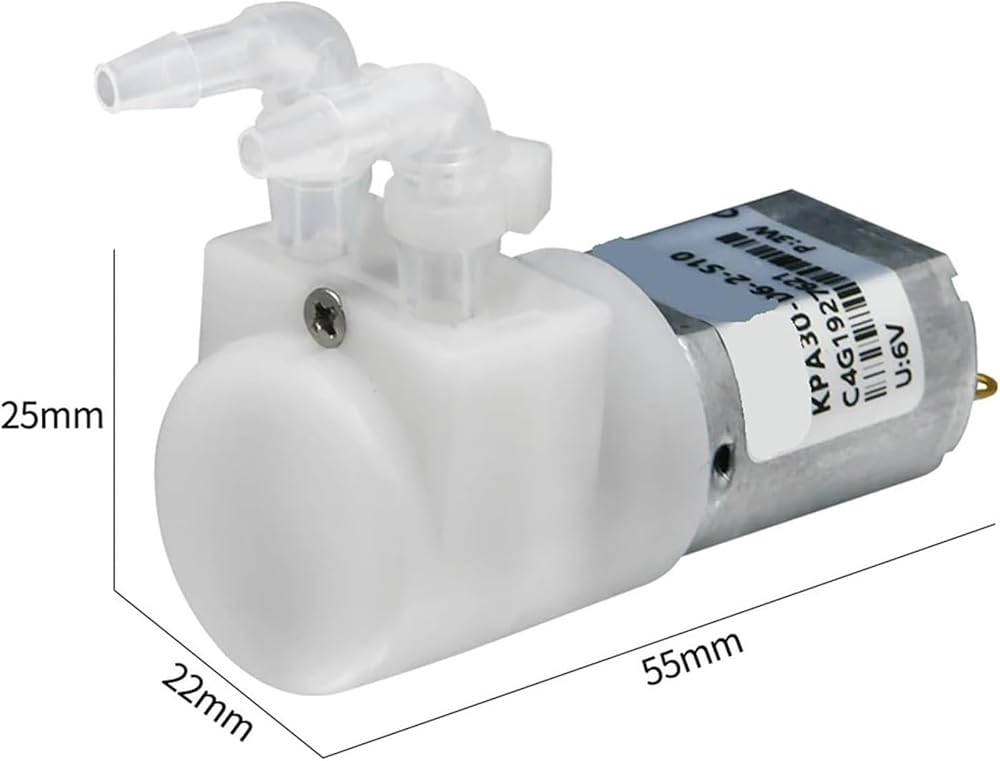

Dimensions
Mounting holes ST1.9
Other accessories
1/8 L type connector
1/8 Straight connector
Hign-concerned Chemical : None
Application : Metering
Theory : Rotary Pump
Structure : Diaphragm Pump
Model Number : KPA30 Peristaltic Pump
Power : Electric
Standard or Nonstandard : Standard
Pressure : Low Pressure
Usage : Water
Fuel : electric
Origin : CHINA
Certification : CE RoHS
Peristaltic Pump Flow rate : 30ml/min
Peristaltic Pump Voltage : 6V
Peristaltic Pump Motor : Brush motor-300H
Weight : About 36g
Noise : 60dB
Silicone tube lifetime : 200H
Silicone tube : ID2mmxOD4mm
Notice:
Due to different monitors there may be some color difference which is normal.s
