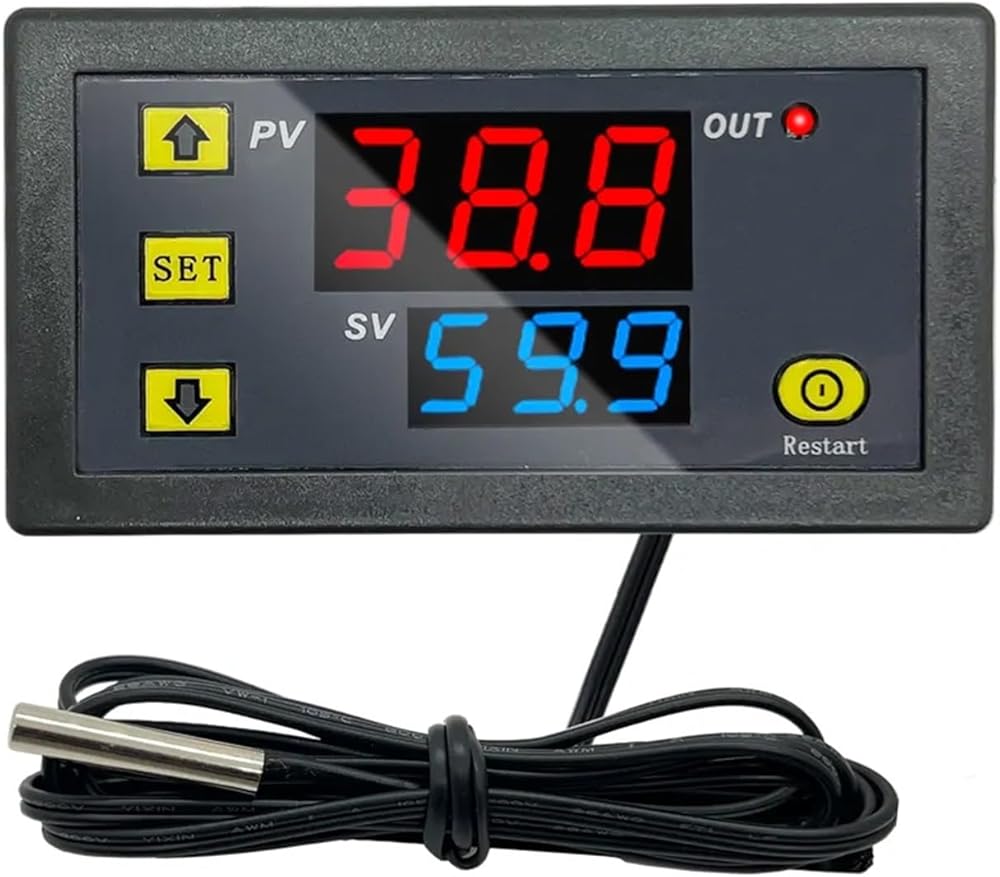

Power Supply:DC 12V/ AC 110V-220V
Temperature Control Range:-55-120
Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
Color of Displaying: red/blue
Measurement accuracy: ±0.1°C
Control accuracy: 0.1°C
Sensor: NTC10K Waterproof sensor
Output: Relay Contact Capacity 20A 12V / 10A 220V
Environmental requirements: -10-60°C humidity 20%-85%RH
Dimension:79mm *43mm*26mm
Cutting Size:73mm*39mm
Sensor wire: 1 meter
Function description:
P0: refrigeration or heating mode
P1: difference setting
P2: maximum temperature setting upper limit
P3: minimum temperature setting lower limit
P4: temperature correction
P5: delay start time (unit: minute)
Method of Use
At this time the display is displayed as measuring temperature. Press the SET key once and the display temperature flashes. Press +- to SET the required temperature (+- can quickly rise and fall) After the setting is complete press Set to confirm and . The output of the thermostat is 20A relay which can meet various high-power loads. If the control circuit is well connected it can supply power to the thermostat. At this time the display screen displays the ambient temperature.
Indicator and nixie tube status description
Indicator: Blinking indicates delay in starting cooling or heating. Steady on indicates that the relay is closed
Digital tube: display LL for the sensor open circuit please connect the sensor according to the instructions; If HH is out of the measuring range the thermostat will disconnect the relay forcibly. Display -- high temperature alarm
Parameter Function Description
Long press SET for 5 seconds to enter the main menu setting press +- to switch to P0... P6 long press SET or 10 seconds no key action controller automatically confirm .
P0 cooling and heating mode
Long press SET for 5 seconds to display P0 press SET once to SET the working mode press +- to switch press SET
