1. Adopt standard BNC interface, applicable to oscilloscope with all BNC interfaces, and adapter can also be used for multimeter.
2. With USB power supply, it can be directly connected to the oscilloscope USB. With the use of the oscilloscope, the measurement is more accurate and efficient.
3. With the split design, the appearance is small and delicate, easy to carry, and the measurement is more safe.
4. With automatic and manual zero adjustment, degaussing function, easy to use.
5. This DC-AC current probe can be widely used in motor drive, power frequency, inverter, power supply and avionics.

Specification:
Condition: Brand New
Item Type: Current Probe
Material: ABS
Application Fields: Motor Drive, Power Frequency, Inverter, Power Supply, Avionics.
Parameter CP2100A
Bandwidth DC-800KHz
Rise Time ≤437.5ns
Ranges 10A/100A
Output Sensitivity 0.1V/A (10A), 0.01V/A (100A)
DC Accuarcy(Typical) 3%, ±50mA (10A), 4%±50mA (100A, 500mA-40Apk), 15% (100A, 40Apk-100Apk)
Signal Delay
DC Signal Linearity (Typical) DC Signal Linearity, Typical On Page 6
Measuring Range 50mA-10Apk (10A), 1A-100Apk (100A)
Maximum Measurable Current 100Apk, 70.7Arms (DC+ACpk), 200Apk-Pk, 70.7Arms (AC)
Maximum Working Voltage CAT III 300V CAT II 600V
Maximum Float Voltage CAT III 300V CAT II 600V
Maximum Conductor Diameter 13mm
Overload Indication The Buzzer Beeping, The Button Light Flashing
Power Supply DC 5V
Probe Head Size 11x6.1x2.5cm / 4.3x2.4x1.0in
Operating Temperature 0°C -40°C
Storage Temperature -20°C -80°C
Operating Humidity 5%-95% (0°C -40°C, No Condensation), 5%-65% (40°C -50°C, No Condensation)
Operating Altitude ≤3000 m / 9842.5ft
Storage Altitude ≤12000 m / 39370.1ft

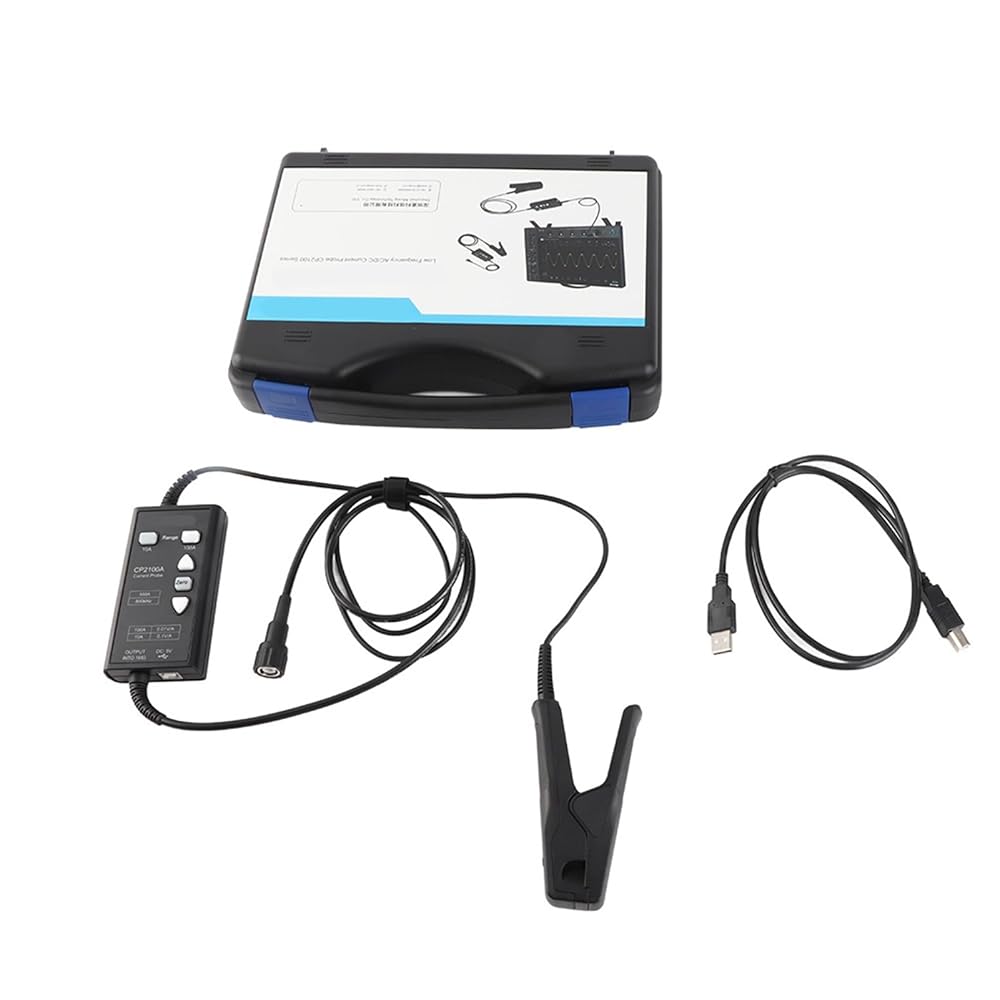

packing list:
1 x Current Probe
1 x USB Cable
1 x Protective Box
