[Ease of Use] Utilize the light emitting tube method for quick and efficient testing, replacing traditional manual measurement with a multimeter.
[Essential Tool] A must-have tool for computer motherboard repair and debugging, ensuring smooth functionality and performance.

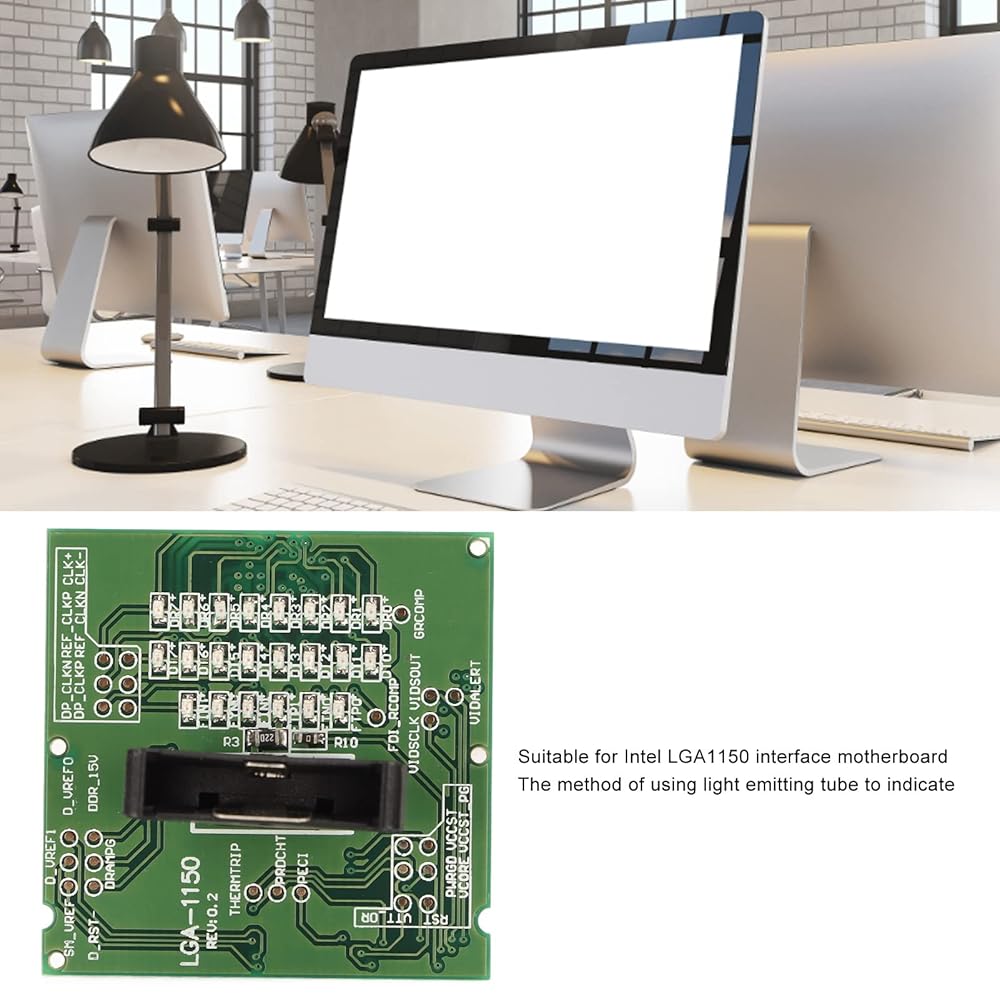

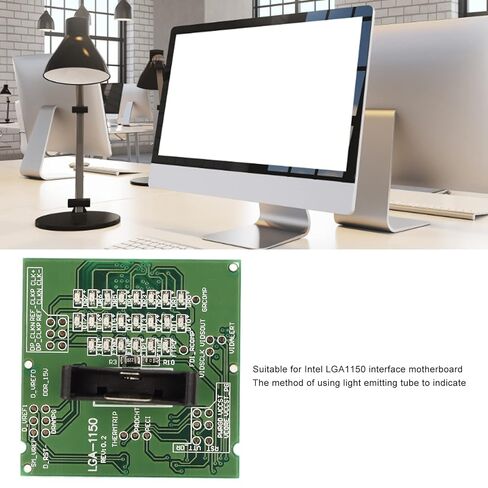

[Excellent Performance] This cpu tester is specially designed for lga1150 interface motherboards, providing accurate testing results.
[Versatile Usage] Due to varying motherboard designs and chipsets, test signals may display differently, requiring debug and maintenance personnel to use the same motherboard for fault judgment.

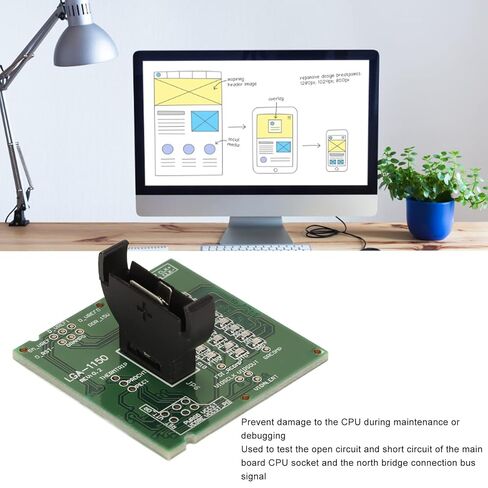

[Prevents Cpu Damage] Test for open circuits and short circuits on bus signals connecting the cpu socket and north bridge to prevent potential cpu damage during maintenance or debugging.

Spec:

Item Type: CPU Test Card

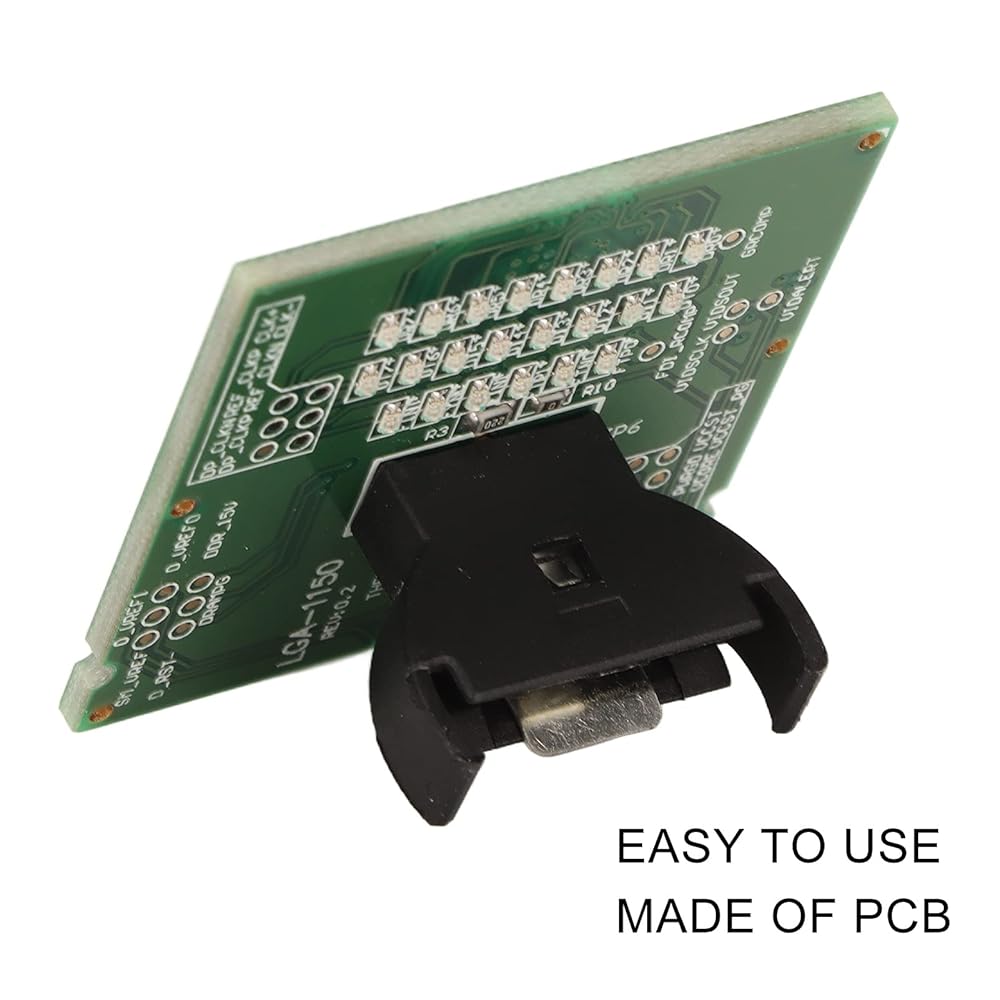

Material: PCB
Battery Type: Cr2032 Battery (delivered Without Battery)
Applicable: for LGA1150 Interface Motherboard

Package List:
1 x
CPU Test Card

How To Use:
Put the tester in the CPU socket and press down the iron cover of the CPU base (note that the motherboard should not be powered on), the MDI signal, signal, sync signal and clock signal indicators on the test light are all lit, and these signals are connected to the north bridge chipset, if the light is not on, it means that this signal has an open circuit and short circuit fault.
