Item:DHD2-200

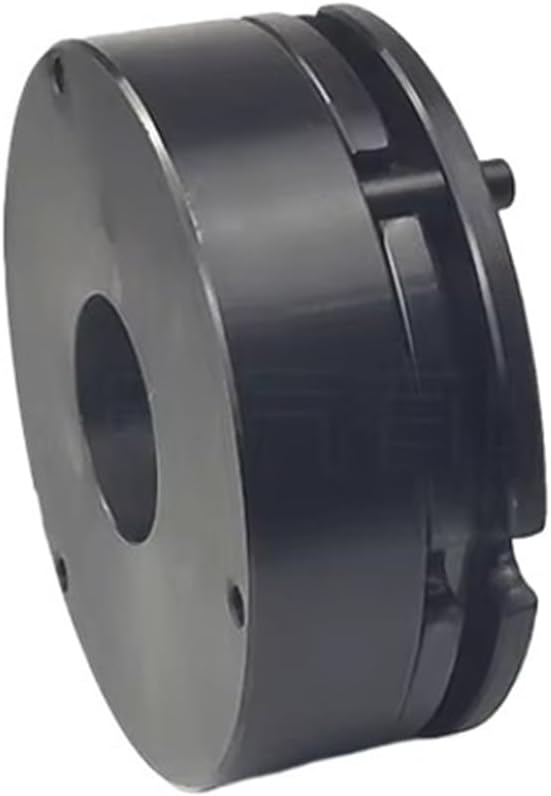

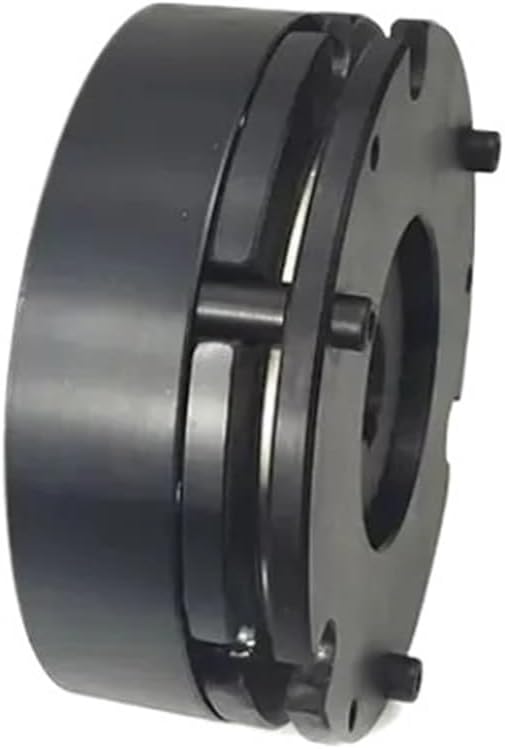

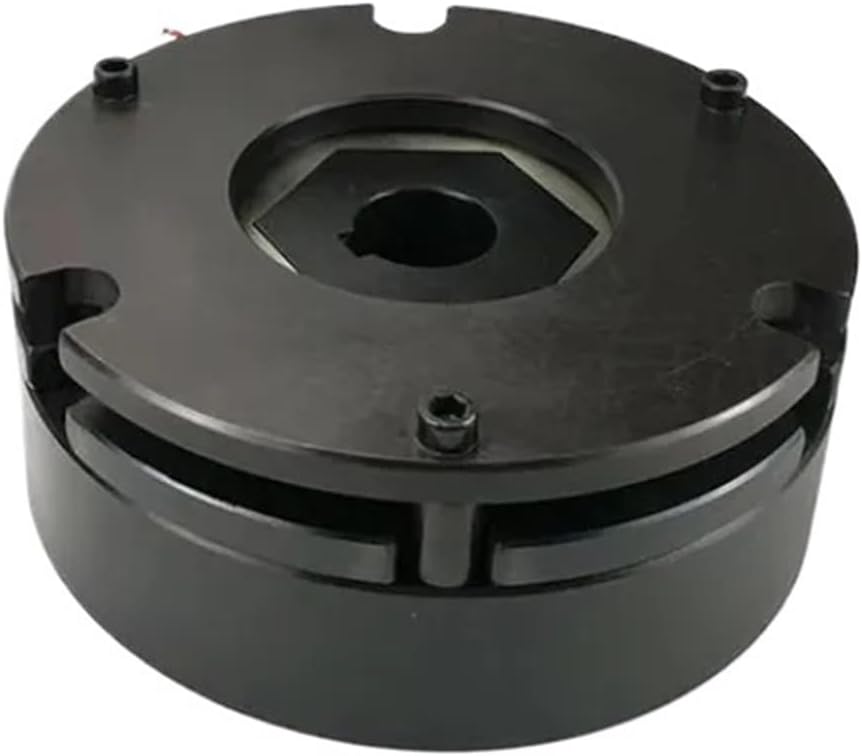

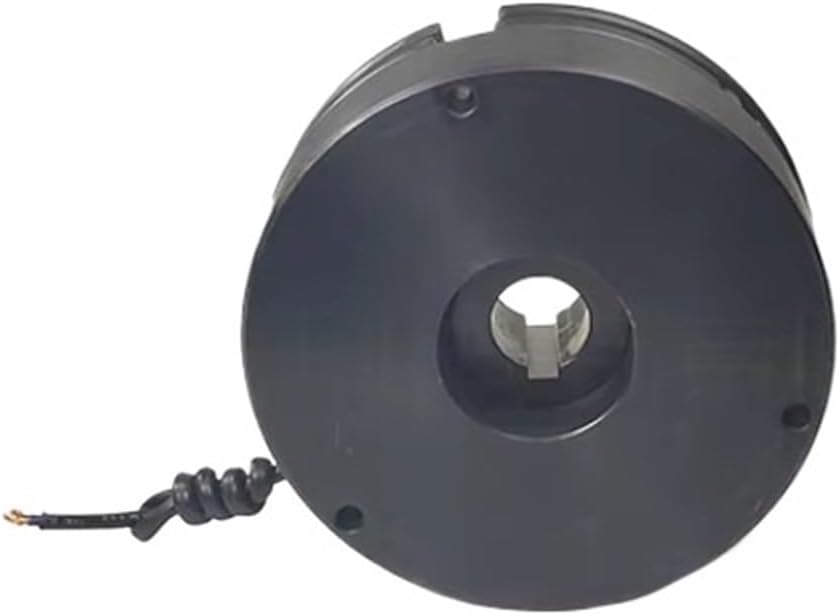

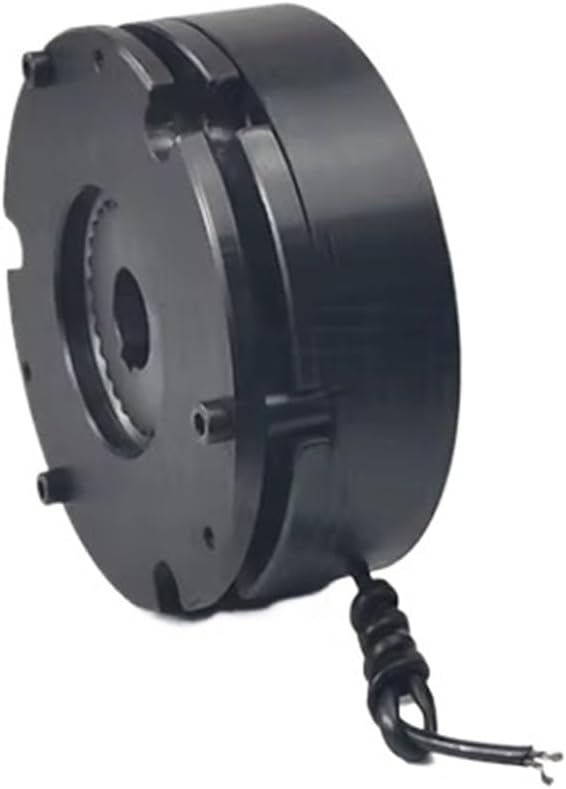

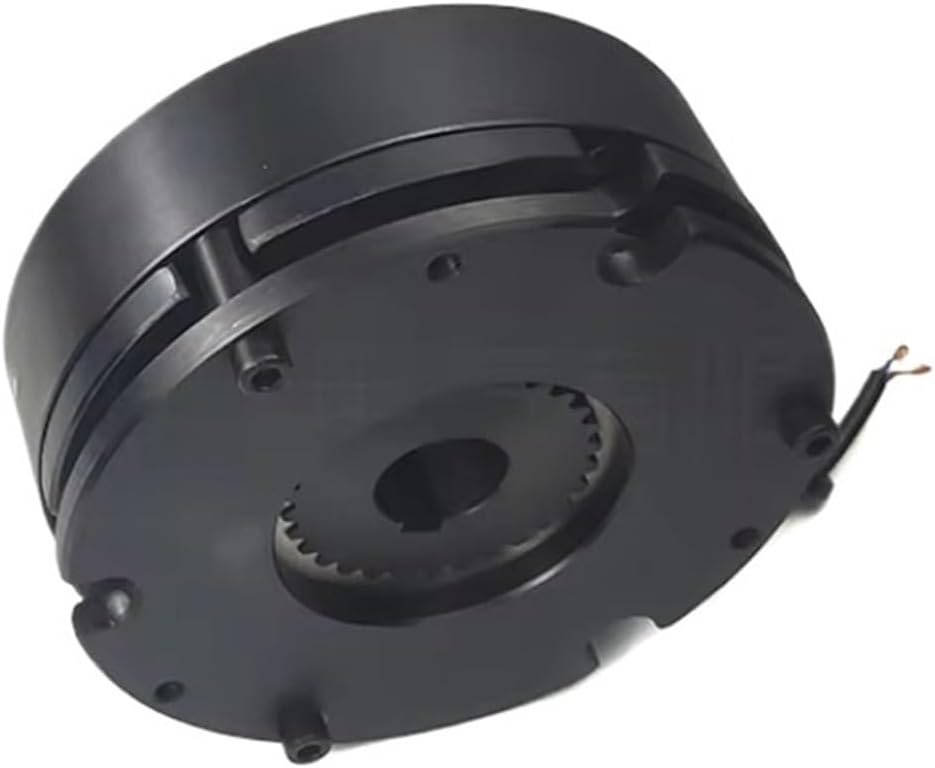

DHD2-200/24V/99V/200N.m Spring brake electromagnetic brake power-off fast electromagnetic brake ultra-thin electromagnetic brake
Outer diameter 187mm/installation center distance 170mm/height 81mm/shaft hole 32mm
Size: 187*81mm*32mm
Quick power-off brake DHD2-2
Outer diameter 77mm/installation center distance 68mm/height 30mm/shaft hole 12mm
24vdc
Click to purchase
Quick power-off brake DHD2-4
Outer diameter 85mm/installation center distance 74mm/height 32mm/shaft hole 12mm
24vdc
Click to purchase
Quick power-off brake DHD2-8
Outer diameter 97mm/installation center distance 85mm/height 35mm/shaft hole 14mm
24&90vdc
Click to purchase
Quick poweroff brake DHD216
Outer diameter 117mminstallation center distance 108mmheight 41mmshaft hole 19mm
2490vdc
Click to purchase
Quick poweroff brake DHD230
Outer diameter 125mminstallation center distance 112mmheight 535mmshaft hole 19mm
2490vdc
Click to purchase
Quick poweroff brake DHD250
Outer diameter 145mminstallation center distance 130mmheight 565mmshaft hole 24mm
2490vdc
Click to purchase
Quick poweroff brake DHD2100
Outer diameter 165mminstallation center distance 150mmheight 71mmshaft hole 28mm
2490vdc
Click to purchase
Quick poweroff brake DHD2200
Outer diameter 187mminstallation center distance 170mmheight 81mmshaft hole 32mm
2490vdc
Click to purchase
Purpose
This series of electromagnetic poweroff brakes is a type of small and lightweight motor mainly used for micro motor servo motor stepper motor electric forklift motor etc, which is energized by electromagnetic suction and when power is cut off, the spring is pressurized to achieve friction braking. Suitable for metallurgical, construction, chemical, food, machine tools, packaging, stage, elevator, ship and other machinery, achieving fast parking, accurate positioning, safe braking and other purposes.
This series of brakes consists of a magnetic yoke, excitation coil, spring, brake disc, armature, spline sleeve, manual release device, etc. Installed at the rear end of the motor, adjust the installation screws to bring the air gap to the specified value; The spline sleeve is fixed on the shaft, and the brake disc can slide axially on the spline sleeve, generating braking torque during braking.
When the coil of the brake is energized, the coil generates a magnetic field, and the armature is attracted to the magnetic yoke by the magnetic force. The armature and the brake disc detach, and the brake disc is rotated normally by the motor shaft; When the coil loses power, the magnetic field disappears, and the armature is pushed towards the brake disc by the force of the spring, generating frictional torque and braking.
Pulling the "manual release device" or tightening the "screw release device" can also release the armature, facilitating the installation and adjustment of the equipment.
Usage conditions
This series of brakes can operate reliably under the following conditions
1. Working under dry conditions;
2. There is no explosion hazard in the surrounding medium, and there are no gases or conductive dust that are sufficient to corrode metals and damage insulation;
3. The working environment temperature is -40~+150 , and the surface of the friction plate and armature must not have oil stains and must be kept clean;
4. The insulation level is B, the protection level is IP23, and the voltage fluctuation range does not exceed+5% and -15%;
5. The working air gap shall not exceed the maximum working air gap, and the main and driven sides of the brake shall be fixed, without axial displacement;
6. Installation method: Axial vertical installation, the installation of the brake must ensure that the coaxiality is not greater than 0.1mm;
7. Working mode: intermittent work, continuous work.
Installation dimension diagram
==========
Hign-concerned Chemical : None
Origin : Mainland China
Certification : CE,RoHS
Condition : New
Weight (KG) : 12.3
Video outgoing-inspection : Provided
Machinery Test Report : Provided
Marketing Type : New Product 2024
Warranty of core components : Available
Core Components : Coil
Place of Origin : Anhui, China
Product name : DHD2-200
Rated Voltage : 24VDC
external diameter : 187mm
Center distance : 170mm
height : 81mm
Shaft hole : 32mm
Size : miniature 187*81mm*32mm
type : Electromagnetic brake
torque : 200N.M
power : 45W
