مميزات خاصة

Contains SCI measurement mode SCI refers to specular reflections that are generally used to study the properties of a color itself without regard to the surface gloss of the sample to which it is attached;

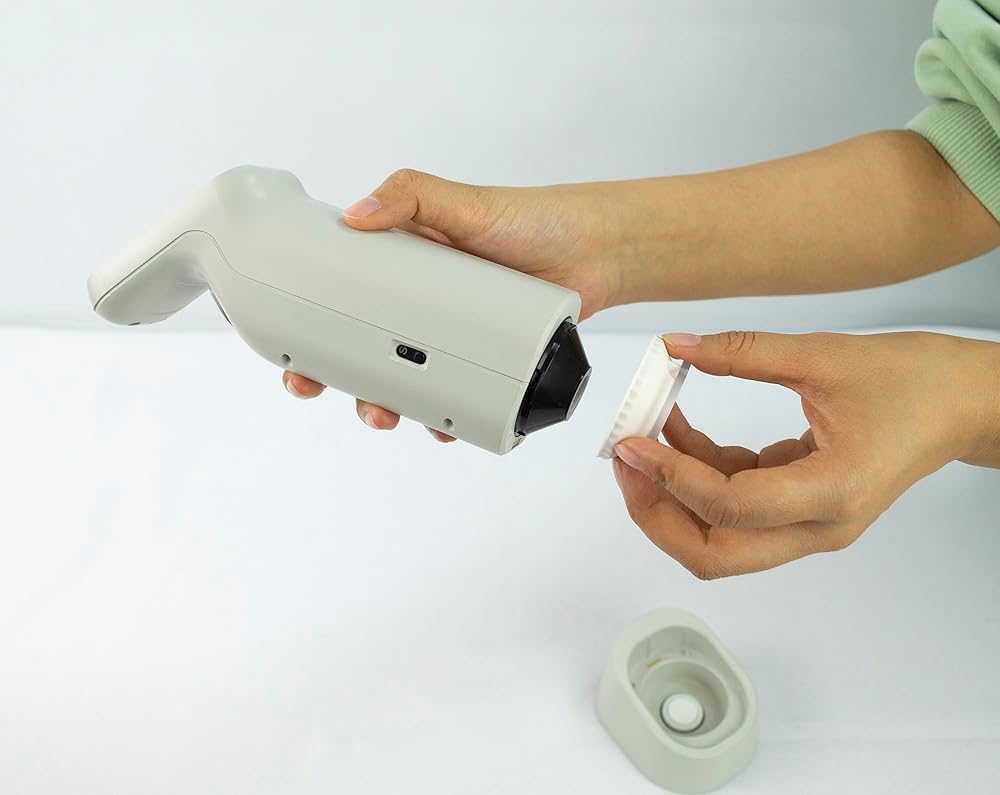

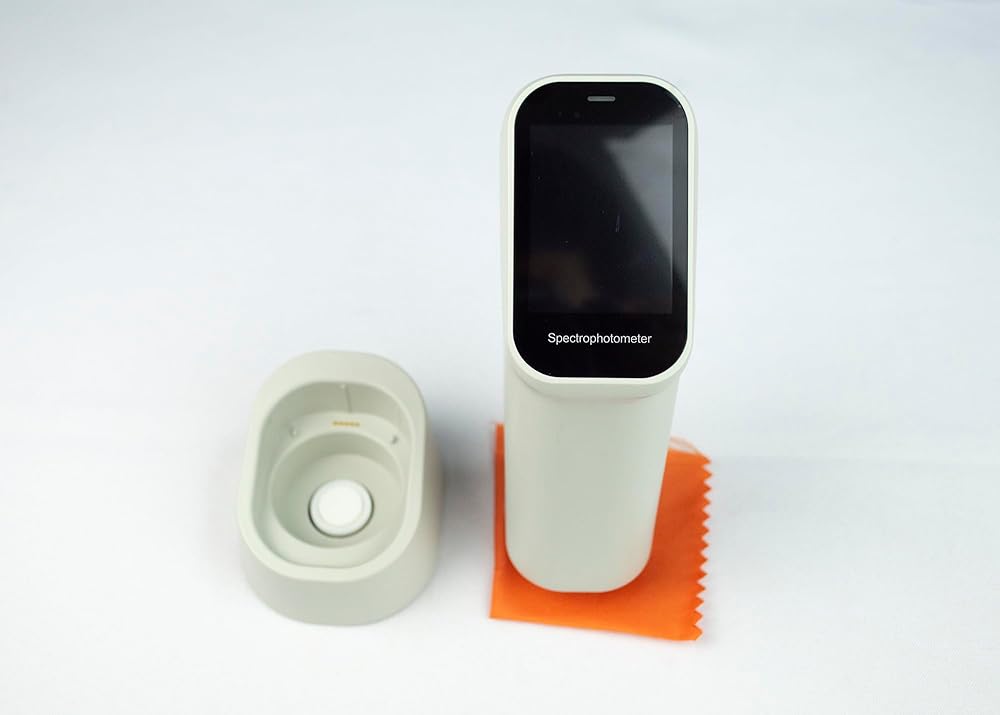

Calibration base and zirconium reference with a Mohs hardness of 9 to auto calibrate the instrument, ensuring long-term stability;
PC software to store or print out data report;
Evaluate whether the color is jumping light, and provide nearly 40 evaluation light sources A, B, C, D50, D55, D65 and nearly 40 evaluation light sources can be selected, covering almost all the color measurement indicators and light source types in the industry;
Over 30 Measurement Indicators RGB,Lab,Reflectance,LCh,Hunter Lab,CIE-Luv,XYZ,Yxy Difference(ΔE*ab,ΔE*cmc,ΔE*94,ΔE*00) WI(ASTM E313-00,ASTM E313-73,CIE/ISO,AATCC,Hunter,Taube Berger Stensby) YI(ASTM D1925,ASTM E313-00,ASTM E313-73) Blackness(My,dM),Color Fastness,Tint(ASTM E313-00) Color Density CMYK(A,T,E,M), Milm, Munsell, Opacity, Color strength.

وصف

Specification
Model DS-200
Measuring structure* D/8，SCI
Measurement repeatability** ΔE*ab≤ 0.03
Display accuracy 0.01
Measuring aperture Φ6mm
Color Spaces and Indices Reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB, Color difference(ΔE*ab, ΔE*cmc, ΔE*94,ΔE*00),
WI(ASTM E313-00,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger Stensby), YI(ASTM D1925,ASTM E313-00, ASTM E313-73), Blackness(My,dM),Color Fastness
Source condition A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,
TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2
Light source LED
Measurement observation method Visual
Calibration Auto calibration
Software support Andriod,iOS,Windows, Wechat app
Guaranteed accuracy Guaranteed measurement
Observer 2°，10°
Integrating sphere diameter 40mm
Standards CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7
Ways of spectral Nano-integrated spectral devices
Sensor Silicon photodiode array Dual 16-group
Wavelength interval 10nm
Wavelength range 400-700nm
Reflectance determination range 0-200%
Reflectance resolution 0.01%
Measurement method Single measurement, average measurement (2 to 99 measurements)
Measurement time Approx. 1 second
Interface USB， Bluetooth
Screen Screen Full colour screen, 2.4
Battery capacity 8000 continuous measurements on a single charge, 3.7V/3000mAh
Life of light 10 years and 1 million cycles
Language Simplified Chinese, English
Storage Instrument: 10,000 data; APP: mass storage
