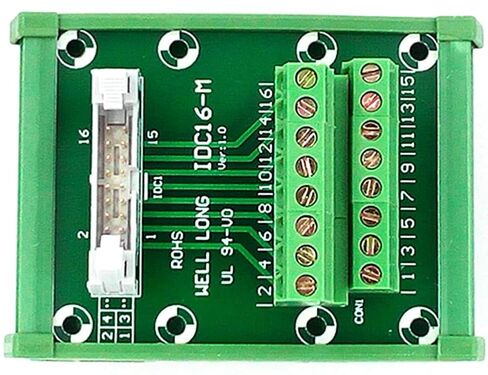

DIN Rail Mount IDC16 Male Header Breakout Board, Terminal Block, Connector in Saudi Arabia DIN Rail Mount IDC16 Male Header Breakout Board, Terminal Block, Connector in Saudi Arabia DIN Rail Mount IDC16 Male Header Breakout Board, Terminal Block, Connector in Saudi Arabia DIN Rail Mount IDC16 Male Header Breakout Board, Terminal Block, Connector in Saudi Arabia DIN Rail Mount IDC16 Male Header Breakout Board, Terminal Block, Connector in Saudi Arabia

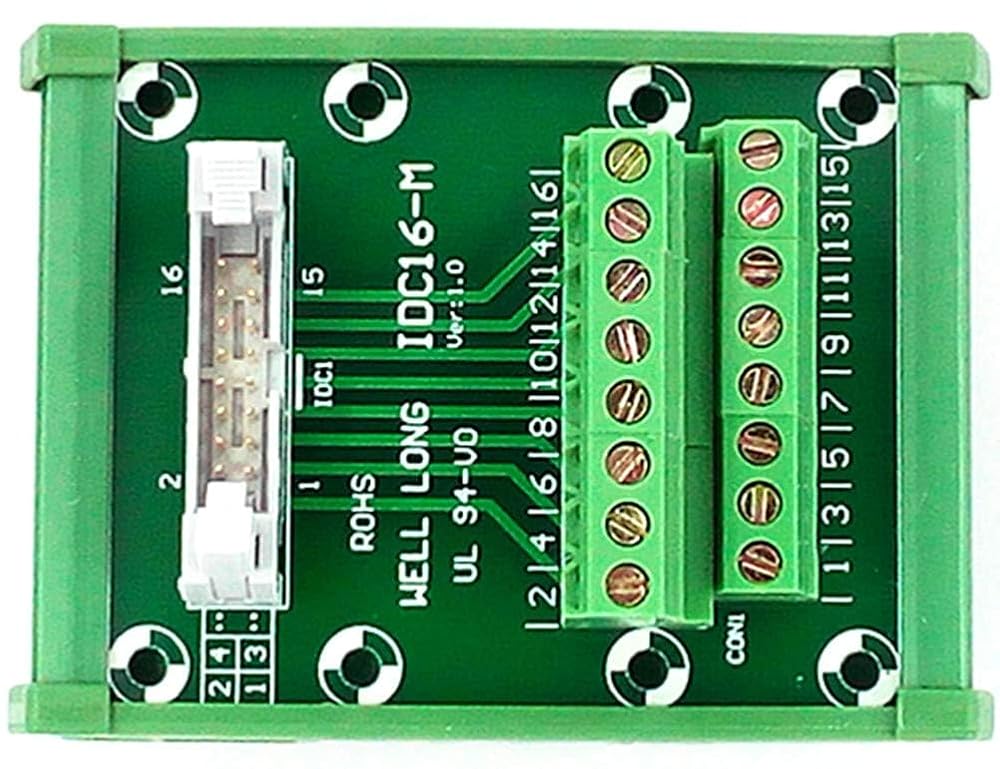

DIN Rail Mount IDC16 Male Header Breakout Board, Terminal Block, Connector

SAR 93
– 1 +

Special Features

  • IDC-16 DIN Rail Mounted Interface Module. IDC pin pitch 2.54mm/0.1" male header connector.Pitch 5.0mm/0.197" screw terminal block.

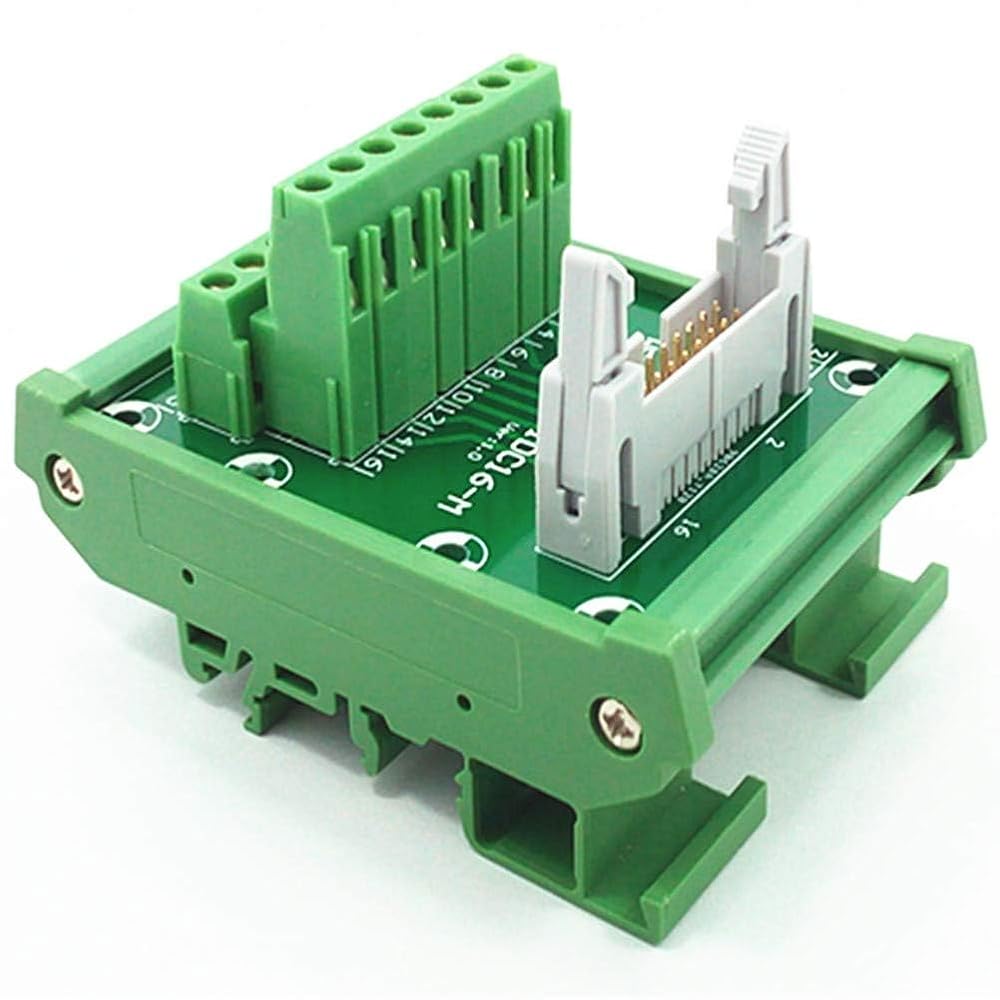

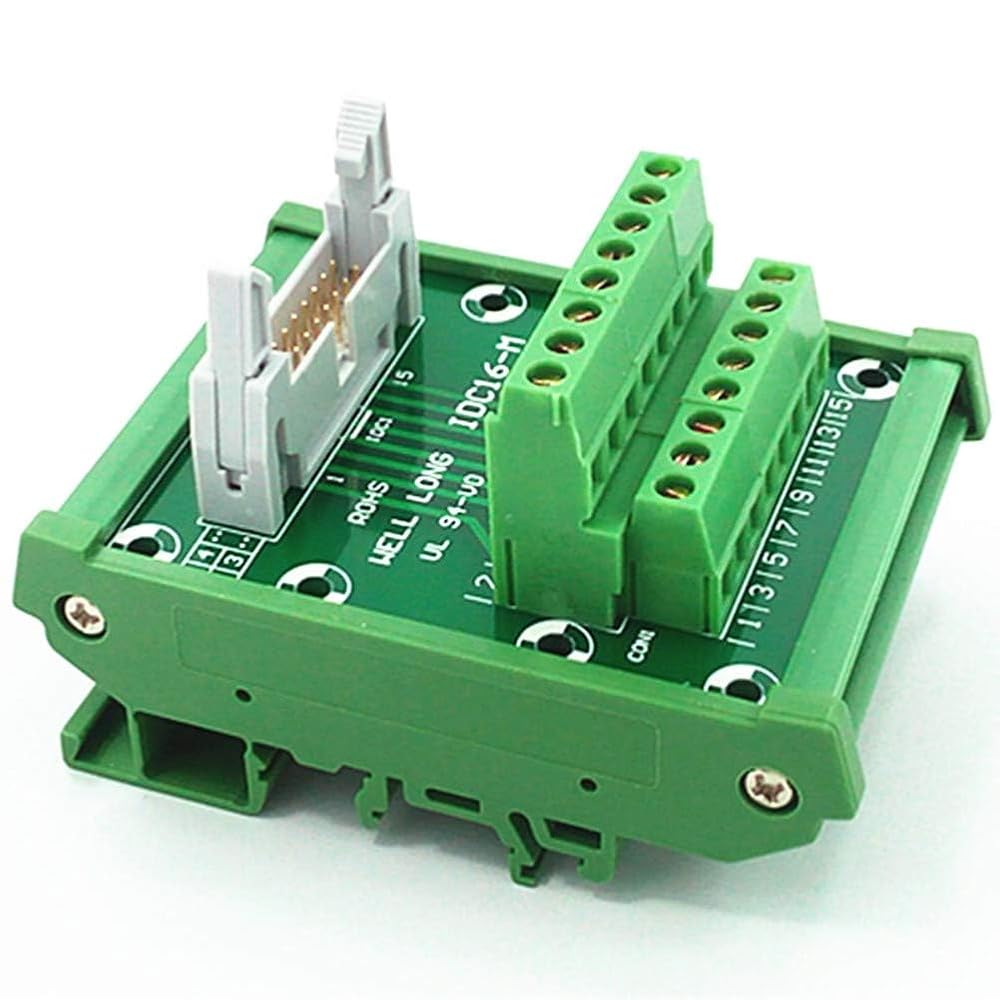

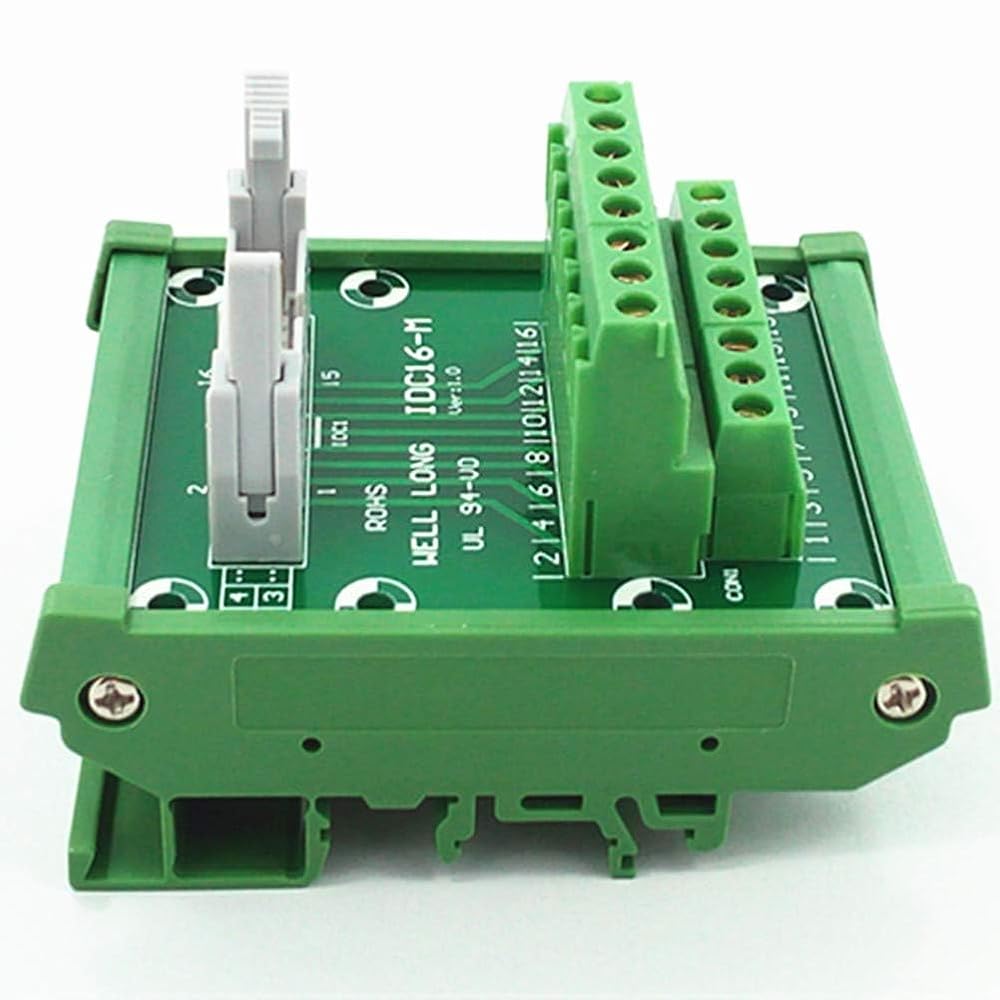

  • Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use.

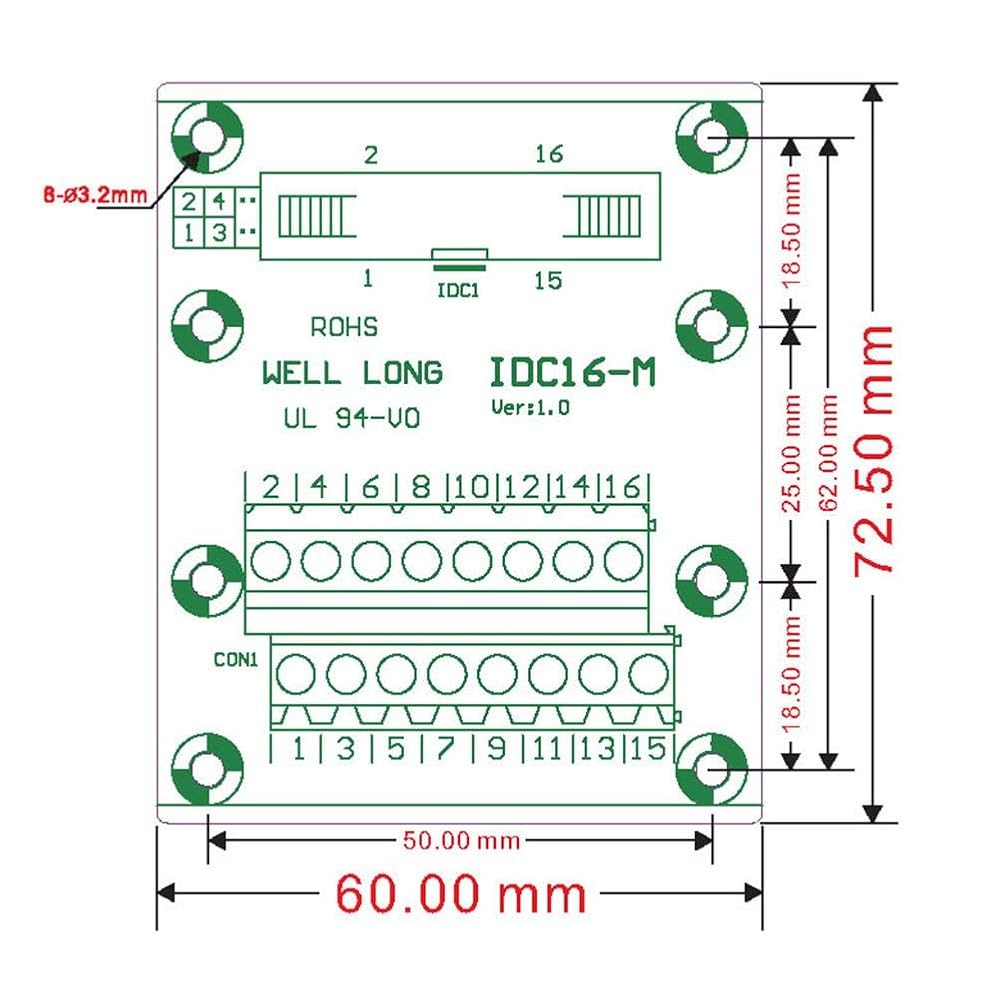

  • FR-4 fiber glass PCB, dual copper layers. PCB Dimensions: 72.5 x60mm(W x L).
  • Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC
  • Terminal block specifications: Wire range - 24-12AWG. Strip length - 5mm. Screws - M3,steel,Zinc plating color. Pin header and Cage - Brass.

Description

Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. FR-4 fiber glass PCB, dual copper layers. PCB Dimensions: 72.5 x60mm(W x L). External dimensions: 87 x 62x 54mm(W x L x H). 100% new, never used. Rated voltage: 60V. Rated current: 1A / per pin. Operating Temperature: -20ºC to 50ºC Terminal block specifications: Wire range - 24-12AWG. Strip length - 5mm. Screws - M3,steel,Zinc plating color. Pin header and Cage - Brass.
