مميزات خاصة

The potentiometer size: 25mm*20mm*15mm/0.98in*0.79in*0.59in
The potentiometer is widely used in televisions, household appliances, electronic instruments, audio, vehicle instruments and other industries
The potentiometer is well-made and has a rotational life of 10,000 cycles

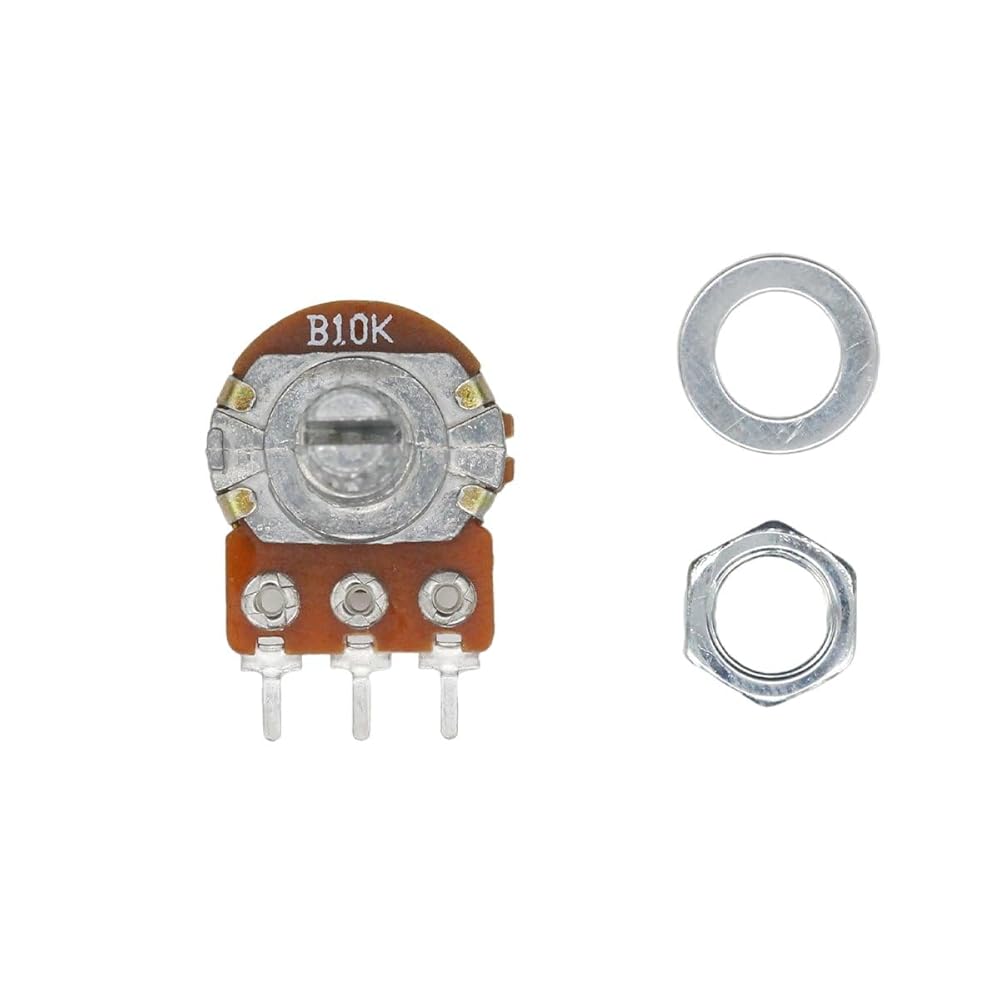

The potentiometer shank is 15mm/0.59in long and has a nut spacer

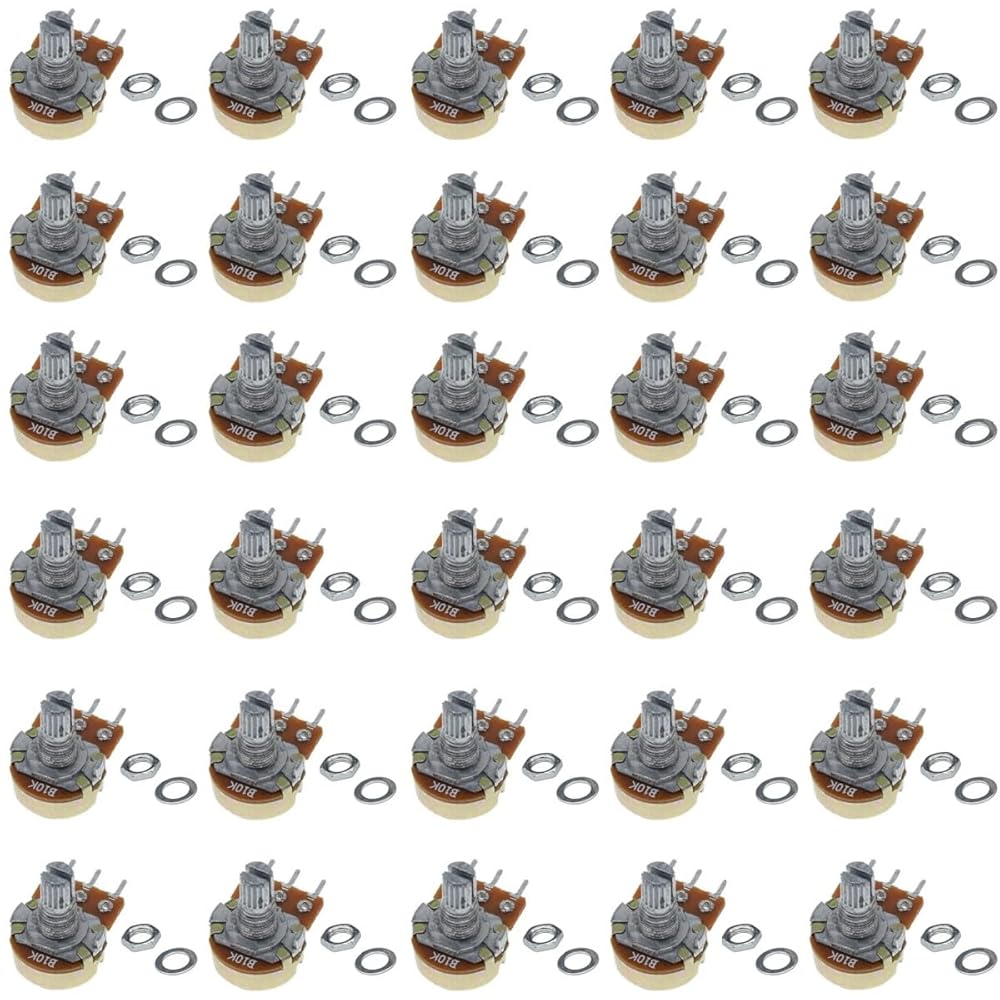

The package includes: 30pcs single potentiometer, easy to replace

وصف

Potentiometer Parameters:
Rotation Angle: 300° ±10°
Rotational Torque: 10~200gf.cm
Stopper Strength: 6.0kgf.cm min
Shaft Push-Pull Strength: 8.0kgf.cm
Detent Positions: Center, 7/11/21/41 Detent
Detent Torque: 50~150gf.cm
Resistance Range: 10KΩ ~ 1MΩ
Resistance Tolerance: ±20% (for values above 1MΩ ±30%)
Power Rating: Curve B: 0.05W, other curves: 0.025W
Operating Voltage: Curve B: 50V DC, other curves: 25V AC
Residual Resistance:
R ≥ 25KΩ: 0.1% max of total resistance
250KΩ > R > 10KΩ: 20Ω max
R ≤ 20KΩ: 10KΩ max
Insulation Resistance: >100MΩ at DC 250V for 1 minute
Dielectric Strength: 1 minute at AC 250V
Tracking Error: -40~0dB ≤ ±3dB
Rotational Noise:
Rotational Life: 10,000 cycles
