1PC Small Linear Actuator Stroke 10-200mm Length Max Speed 150mm/s Electric Motor with Wings Installation(30mm Stroke,150mm per s 7N,6V)

SAR 400
Brand
ZNNRKMYO
Weight
0.8 kg
– 1 +

Special Features

  • High-Performance Efficiency：Our Linear Actuator Motor offers outstanding performance with a precise and smooth operation, ensuring consistent and reliable motion control. It's designed for applications requiring high accuracy and repeatability, making it perfect for industrial automation, robotics, and other engineering projects.
  • Robust and Durable Construction：Built with materials, this motor is designed to withstand harsh environments and heavy-duty usage. Its robust construction ensures long-term durability, reducing the need for frequent replacements and maintenance.
  • Low-Noise, High Versatility: With a noise level below 60db, our linear motion actuator seamlessly fits into various applications, from furniture to automation systems, mechanical equipment, transportation and more. It's versatile and ready for various tasks.
  • Easy Installation and Integration：Featuring a user-friendly design, the Linear Actuator Motor is easy to install and integrate into existing systems. Its plug-and-play capability saves time and effort during setup, allowing for quick and efficient deployment in any project.
  • Energy-Efficient Operation：Engineered to minimize energy consumption, this motor provides an eco-friendly solution without compromising on power or performance. Its energy-efficient design not only lowers operational costs but also supports sustainable practices in your projects.

Description

Technical Parameters
Voltage (V) DC 6/12/24V
No-load speed (mm/s) 4 8 15 30 150
Load push capacity (N) 150 70 50 20 7
Load pull capacity (N) 150 70 50 20 7
Statoc damping (N) 150 70 50 20 7

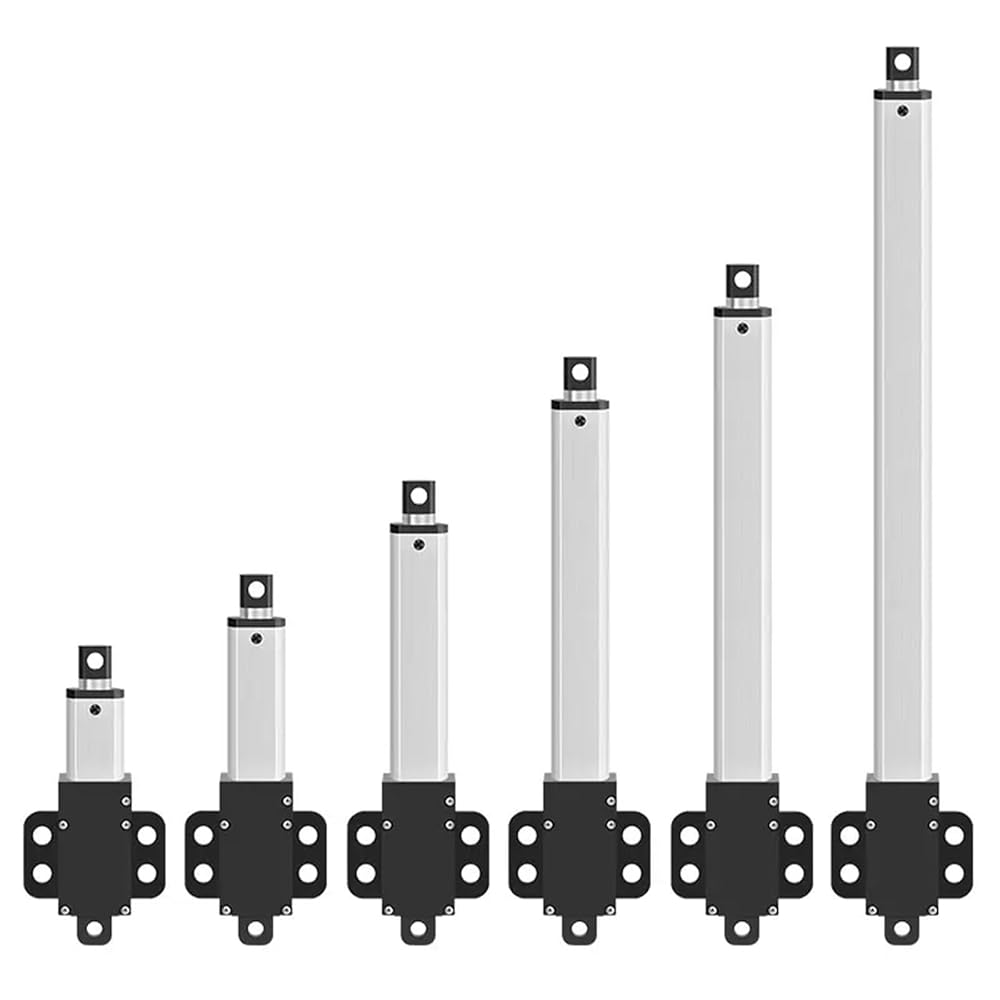

Stroke length (mm) 10mm,15mm,30mm,50mm,75mm,100mm,150mm,200mm
Operating temperature o~40
Limit switch Built-in
Operating frequency 10%
Inner tube Aluminum tube
Color Silver gray
Lead screw type T type
Advantage:Our Linear Actuator with Linear Reciprocating Motor and Durable Stroke Ideal for Intelligent Range Hood, Fan Blades, Cabinets, Window Opener, Robotics, Home Automation.
Feel Stop: Stop at Any Position,With Automatic Machine Lock, It will Automatically Stop When It Reaches the Top.
Safe and Worry-Free: Overcurrent Protection, Short Circuit Protection, Overload Protection, Overvoltage Protection.
Speed (RPM): Represents the no-load speed and load capacity of the product. 4mm per s (4mm/s) indicates the speed, while 150N denotes the load capacity.
Voltage (V): Represents the input voltage of the product.
Gear Count: Represents the stroke length.
Drawing About Stroke Length (mm)
Please check below dimension drawing of IP60 Series linear actuator.
200 mm stroke
Min L=257.5mm
Max L=457.5mm

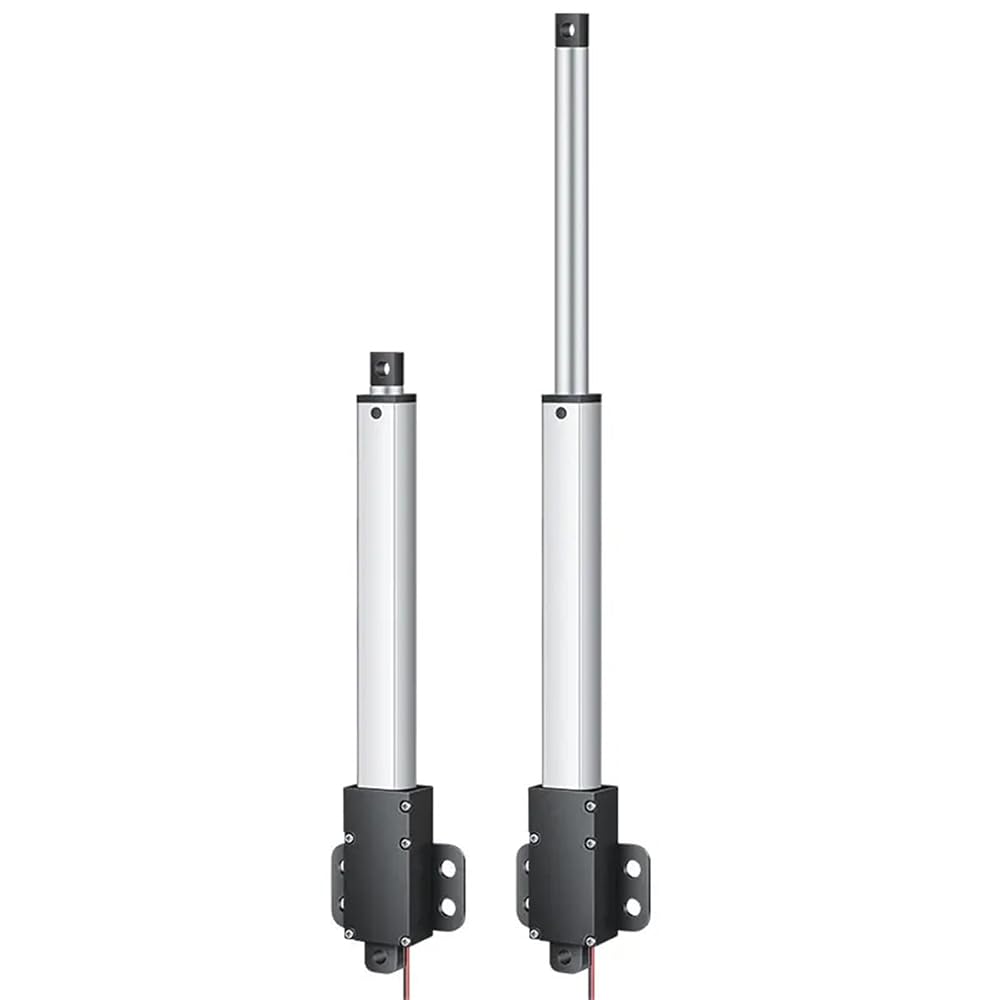

L(mm) means installation size/initial length, S(mm) means stroke length.
L=S+57.5mm
For example, when s (stroke length)=30mm, than L (installation size) will be equal to 87.5mm.
the length after telescopic rod comes out = L+S =117.5mm
Hign-concerned Chemical : None
Color : GRAY
Torque : 7N-150N
Usage : CAR,Electric Bicycle,Fan,Home Appliance
Model Number : IP60
Continuous Current(A) : 0.25
Construction : Permanent Magnet
Type : Gear Motor
Commutation : Brush
Output Power : 3W
Color : gray
Input Voltage : DC 6V/12V/24V
Noise : less then 48dB
No-load Current : 0.03A
Full-load Current : 0.25A
