40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia 40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia 40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia 40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia 40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia 40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia 40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia 40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia 40 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door in Saudi Arabia

8 Inch Stroke 8000N/1700lbs Heavy Duty Linear Actuator 12V Speed 0.157"/sec High Force IP43 Electric Actuator with Mounting Brackets,for Electric Lifting System, Electric Bed,Electric Door

SAR 626
Brand
JQDML
– 1 +

Special Features

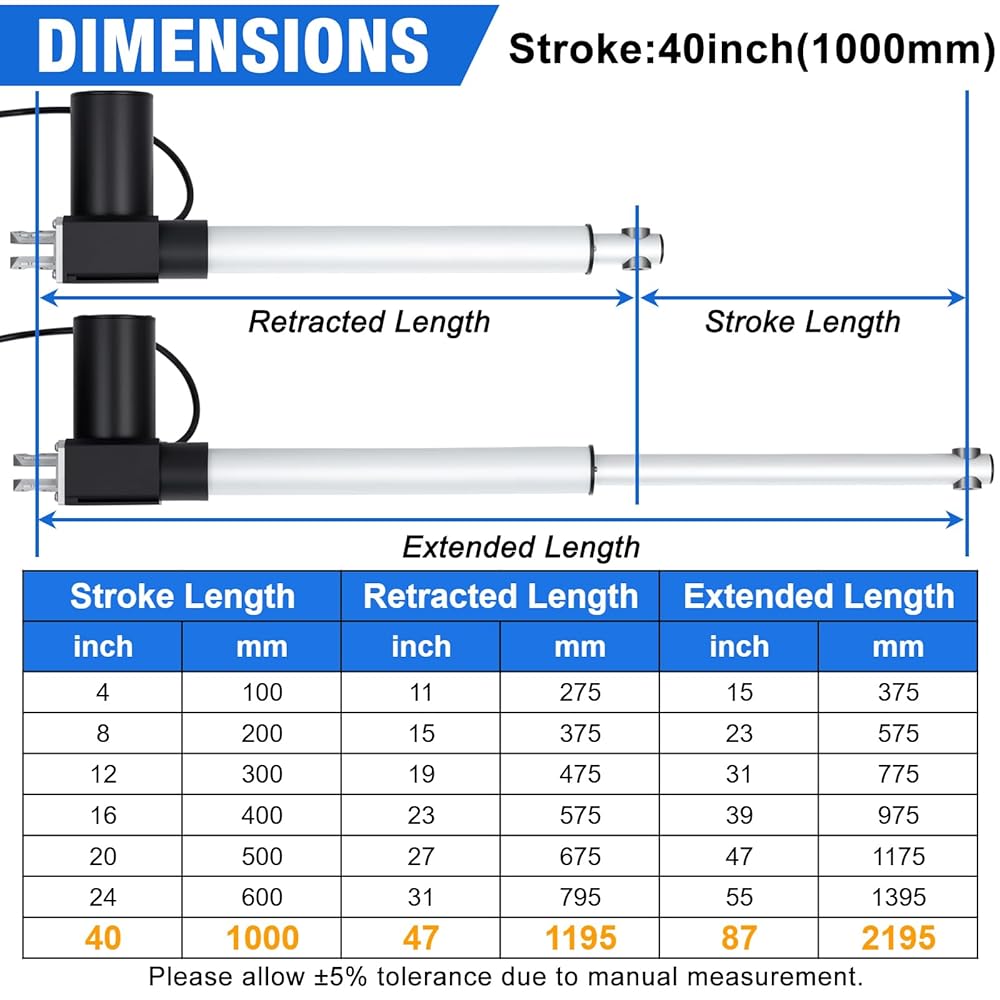

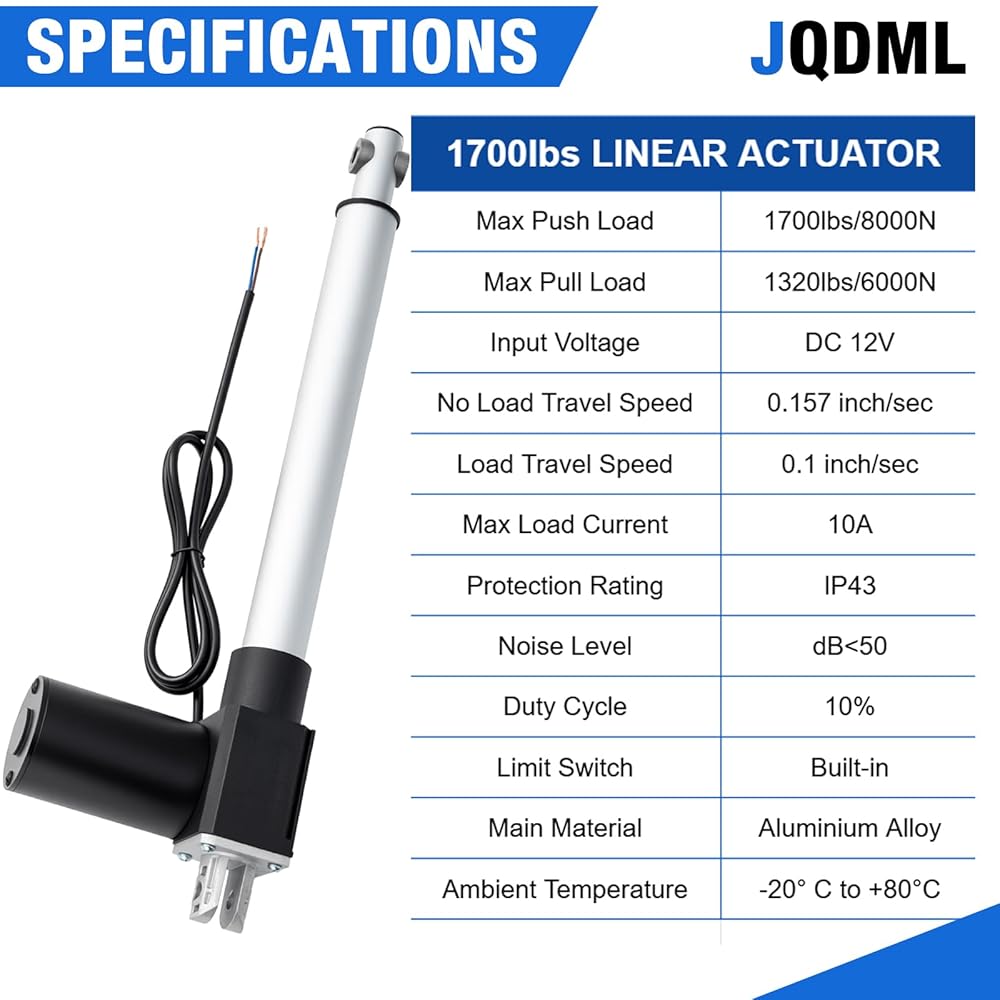

  • Specification: Voltage:12V DC;Stroke Length:40"(1000mm),Retracted length: 47"(1195mm), Extended Length:87"(2195mm); No load speed: 0.157 "/sec (4mm/s), Maximum Load:1700lbs(8000N),Maximum current draw:10A.

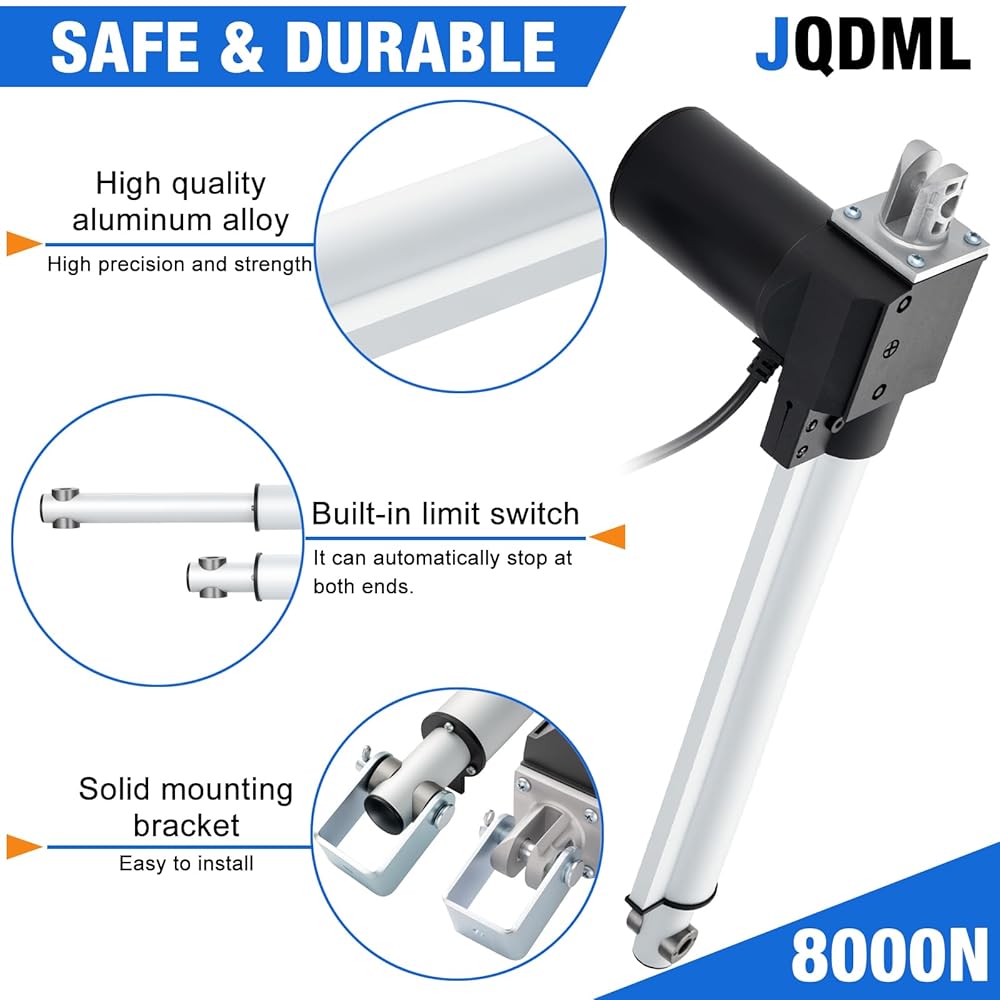

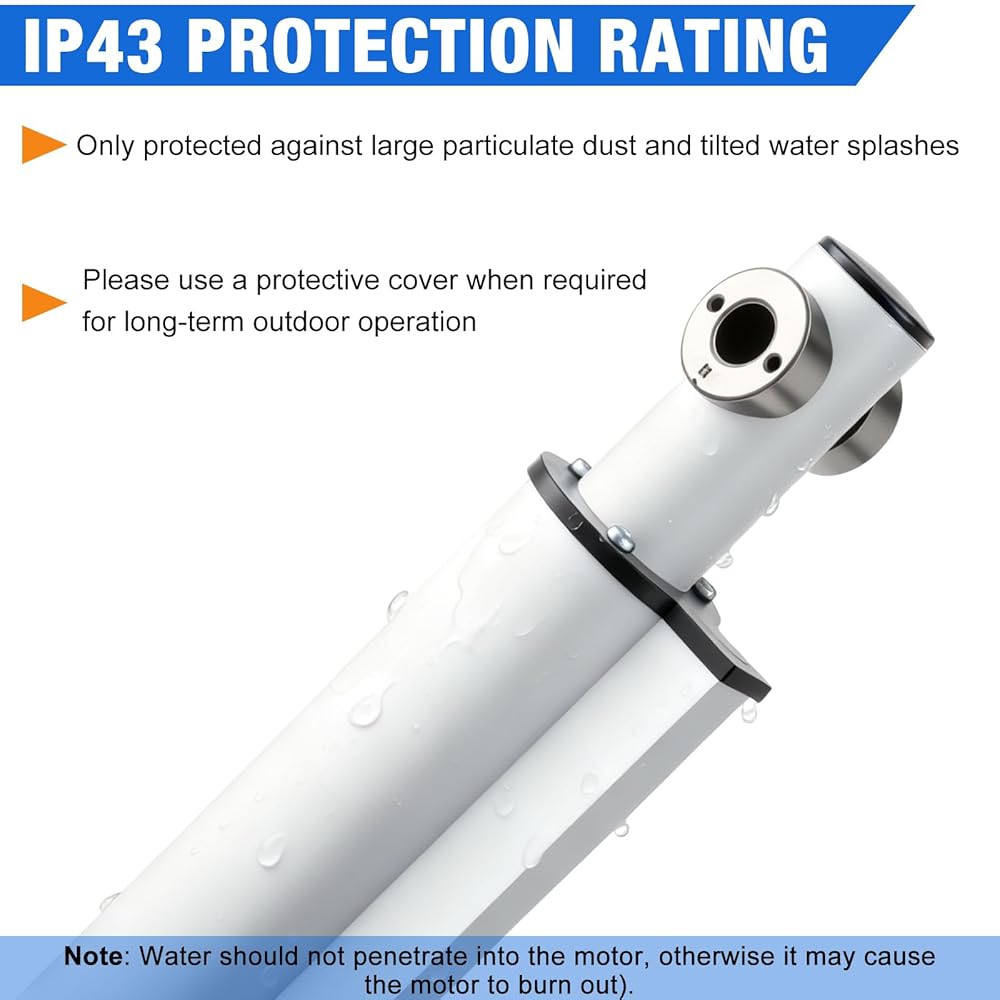

  • Features: Aluminum Alloy Housing;Noise level below 50dB;Ambient temperature:-20° C to +80°C;IP43 rated protection (Note:Water should not penetrate into the motor, otherwise it may cause the motor to burn out,use a protective cover when required for long-term outdoor operation).

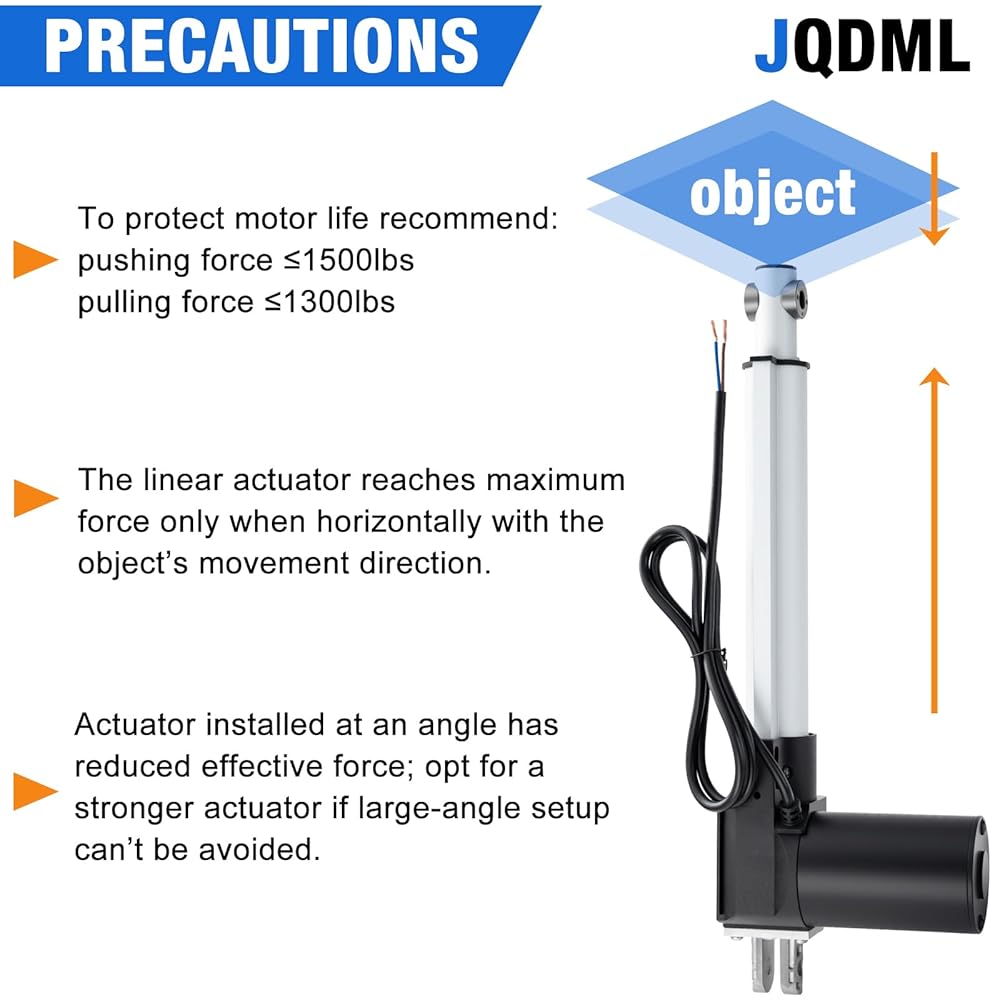

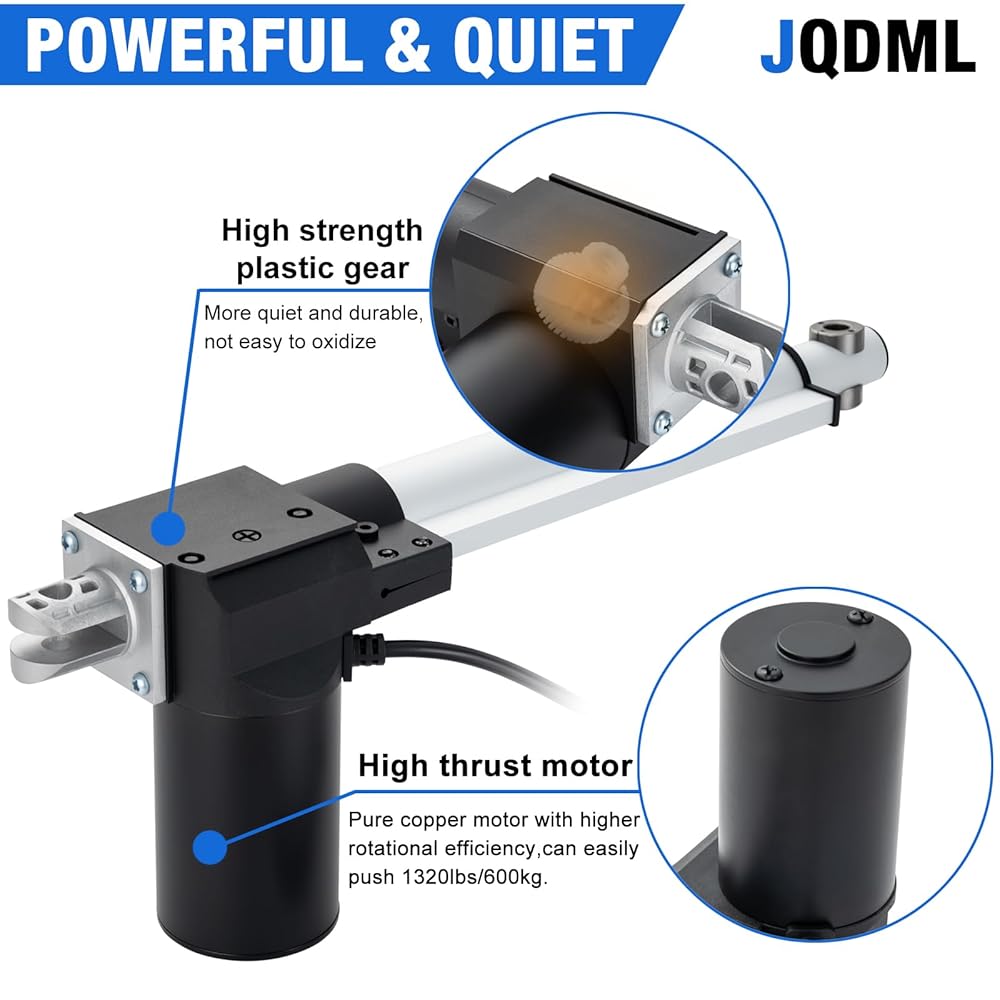

  • Powerful & Safe: The linear actuator equip with a high-performance moto,it can provide a pushing force up to 1700lbs and pulling force up to 1320lbs,designed specifically for heavy-load demands.It comes with a self-locking function and built-in limit switch (can't be adjustable),it can be stopped at any position and automatically stop at the top and the bottom.
  • Application: The JQDML 8000N linear actuator boasts broad compatibility, making it an ideal choice for industrial electric lifting system,door openers, electric beds, electric sofas,electric sunroofs, and various marine and RV equipment.

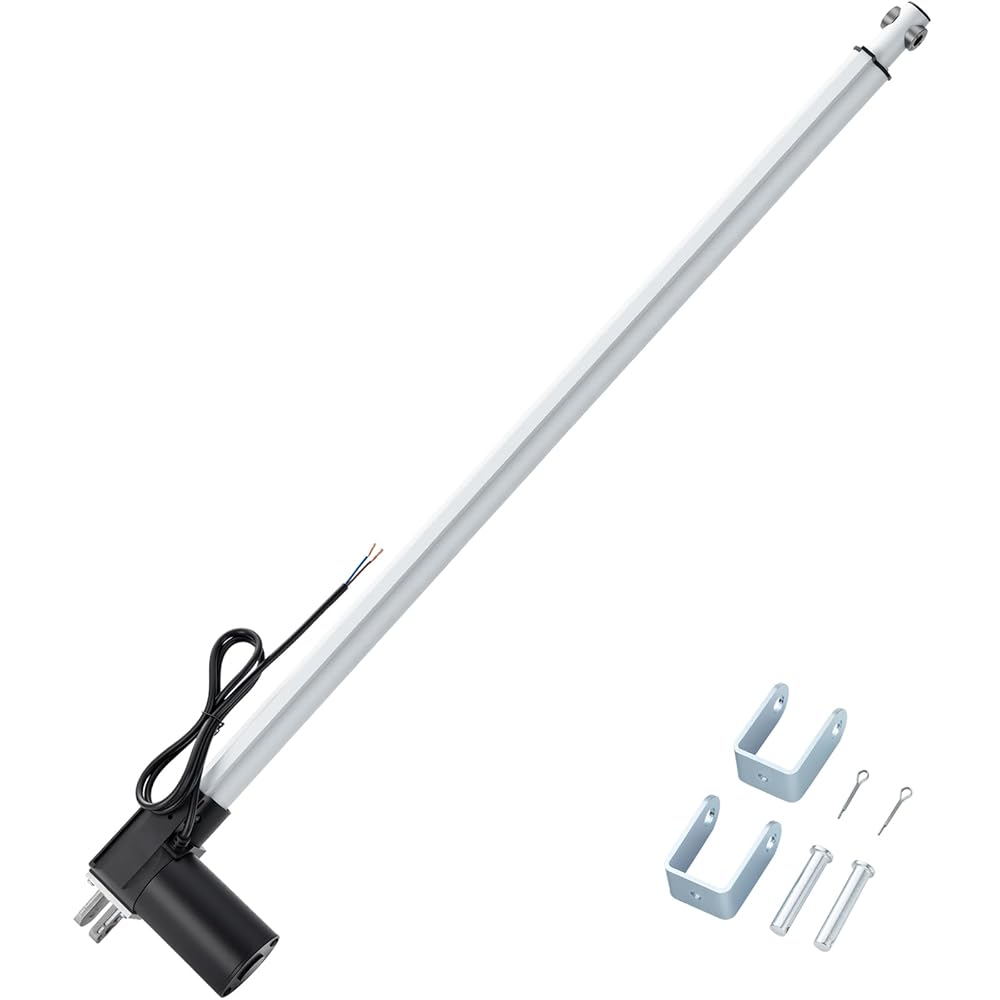

  • Package Included: 1 x DC 12V 8000N Linear Actuator and 2 x Mounting Brackets.
