Surface Roughness Meter, Digital Surface Gauge Handheld Surface Roughness Tester Meter, Ra/Rz/Rq/Rt/Rp/Rv/Rc Parameters, for Metals in Saudi Arabia Surface Roughness Meter, Digital Surface Gauge Handheld Surface Roughness Tester Meter, Ra/Rz/Rq/Rt/Rp/Rv/Rc Parameters, for Metals in Saudi Arabia Surface Roughness Meter, Digital Surface Gauge Handheld Surface Roughness Tester Meter, Ra/Rz/Rq/Rt/Rp/Rv/Rc Parameters, for Metals in Saudi Arabia Surface Roughness Meter, Digital Surface Gauge Handheld Surface Roughness Tester Meter, Ra/Rz/Rq/Rt/Rp/Rv/Rc Parameters, for Metals in Saudi Arabia Surface Roughness Meter, Digital Surface Gauge Handheld Surface Roughness Tester Meter, Ra/Rz/Rq/Rt/Rp/Rv/Rc Parameters, for Metals in Saudi Arabia Surface Roughness Meter, Digital Surface Gauge Handheld Surface Roughness Tester Meter, Ra/Rz/Rq/Rt/Rp/Rv/Rc Parameters, for Metals in Saudi Arabia

Surface Roughness Meter, Digital Surface Gauge Handheld Surface Roughness Tester Meter, Ra/Rz/Rq/Rt/Rp/Rv/Rc Parameters, for Metals

SAR 2,638
– 1 +

Special Features

  • A built-in lithium-ion rechargeable battery with advanced charging circuitry ensures a large-capacity battery that operates efficiently over long periods without memory effects.
  • The casing features a sleek brushed aluminum die design, providing durability and resistance to electromagnetic interference while keeping up with modern aesthetic trends.
  • An energy-efficient ARM microprocessor enhances data processing speed for accurate measurements and computations.

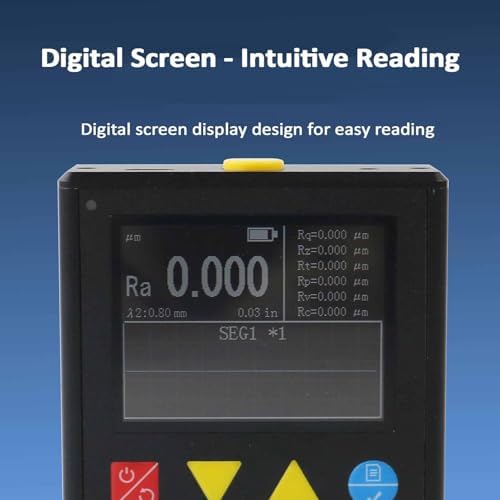

  • The 2.4-inch IPS TFT LCD screen offers high brightness and no blind spots, with an automatic power-off feature for extended stable operation in various field applications.

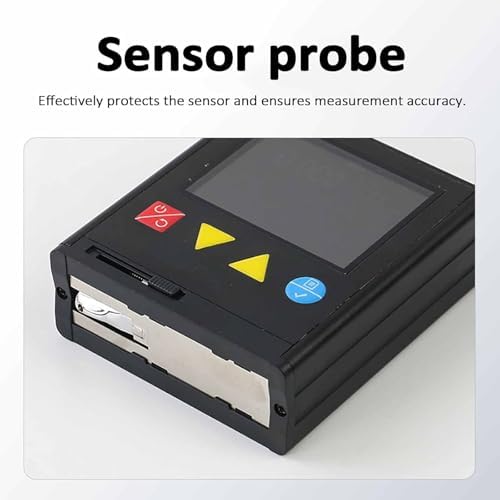

  • The sensor probe includes a protective cover to maintain measurement accuracy and extend its lifespan.

Description

Product Parameters:
Product Name: Surface Roughness Meter
Measurement Parameters (µm): Ra, Rz, Rq, Rt, Rp, Rv, Rc
Stroke Length (mm): 5.6
Sampling Length (mm): 0.25, 0.80, 2.50
Evaluation Length (mm): 1.25 4.0
Measuring Range (µm): Ra, Rq: 0.05~10.0; Rz, Rt, Rp, Rv, Rc: 0.1~50
Indication Error: ±10%
Indication Repeatability: Sensor Stylus Tip Radius and Angle: Tip Radius: 10µm±1µm; Angle: 90° (+5°/-10°)
Sensor Stylus Static Force and its Rate of Change: Stylus Static Force: Sensor Lead Pressure: Battery: Lithium-ion rechargeable battery
Dimensions: 73 mm x 28 mm x 62 mm
Weight: 220g
Operating Environment: Temperature: -20-40℃; Relative Humidity:
Packaging List:

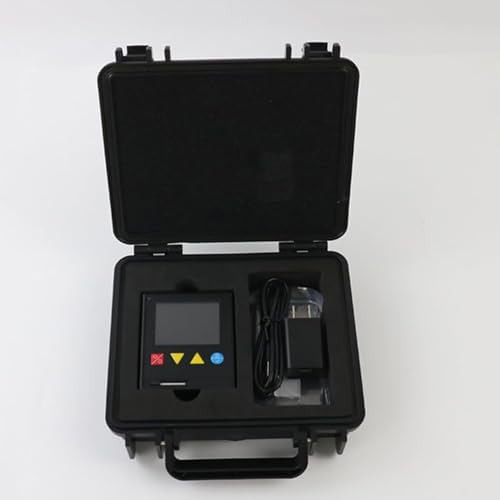

Surface Roughness Tester *1
