Function:
1. If a thread processing error occurs or the internal thread is damaged, the wire thread insert is a good maintenance tool.
2. 304 stainless steel has good properties and is not easy to break when repairing threaded holes.
3. The thread size is standard, the thread is clear and it is more accurate for restoring thread sliding teeth.
4. With the screw base, you can easily and quickly convert between inch threaded holes.
5. Widely used in hydraulic machinery, welding equipment, auto parts, electrical machinery and furniture, etc.

Technical data:

/a>
Item Type:Thread Repair
Material: SUS304.
Model: M14 x 1.25
Thread specification: M14 x 1.25
Outer diameter before installation: approx. 16.7-17.2mm/0.66-0.68inch
Drill diameter: approx. 14.3 mm / 0.6 inches.
1D length after installation: approx. 14 mm / 0.6 inches.
1.5D length after installation: approx. 21 mm / 0.8 inches.
2D length after installation: approx. 28 mm / 1.1 inches.
2.5D length after installation: approx. 35 mm / 1.4 inches.
3D length after installation: approx. 42 mm / 1.7 inches.
Model description of wire thread insert: for example: M3 x 0.5 x 1.5D, which means that after completion of the screw set, the female thread is M3, the pitch is 0.5 and the length is 1.5D (the length is 1.5 times the diameter, i.e. 1.5 x 3 = 4.5 mm), the length here refers to the Length after installation.

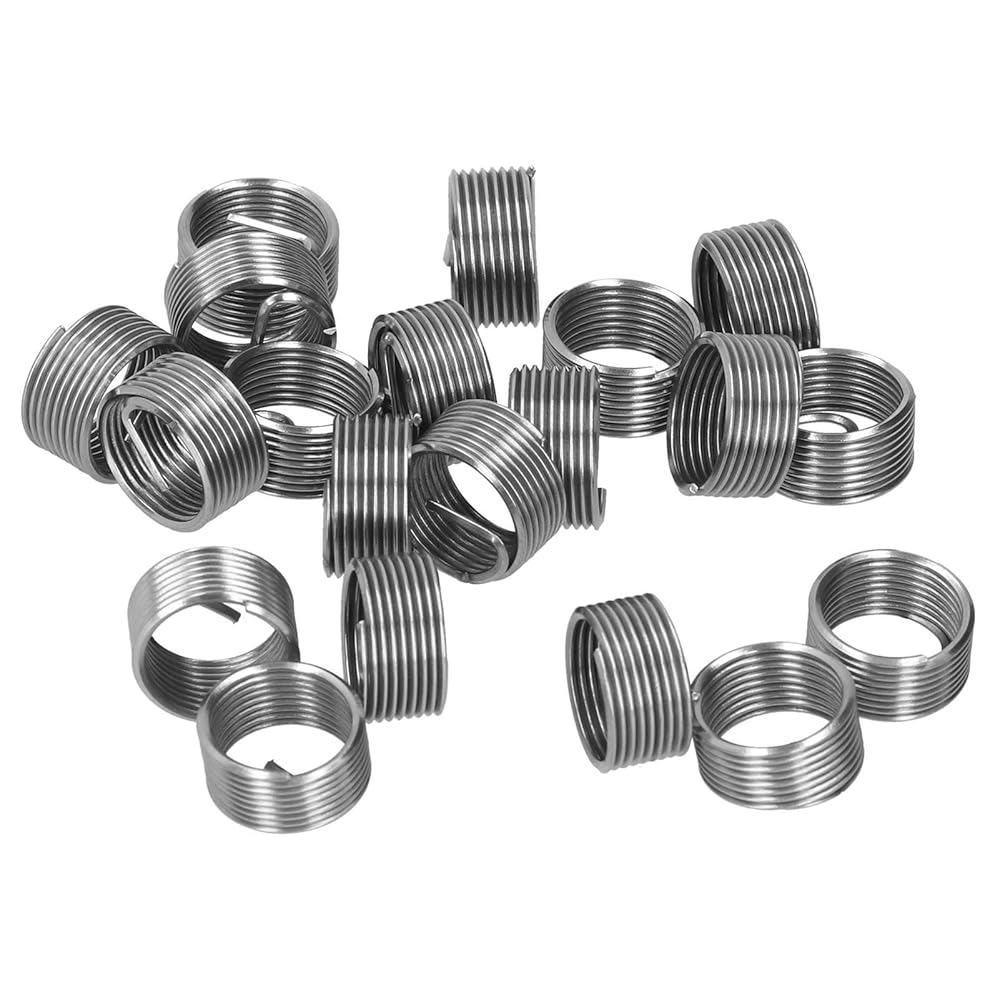

Wire thread inserts are also called threaded sleeves, stainless steel threaded sleeves, wire sleeves and struts. This is a novel type of internal thread fasteners made of high-strength, high-precision steel wires with a shaped cross section. Application to low strength technical materials such as aluminium alloys, zinc alloys, copper, plastic, etc. can significantly improve the strength and wear of the thread
